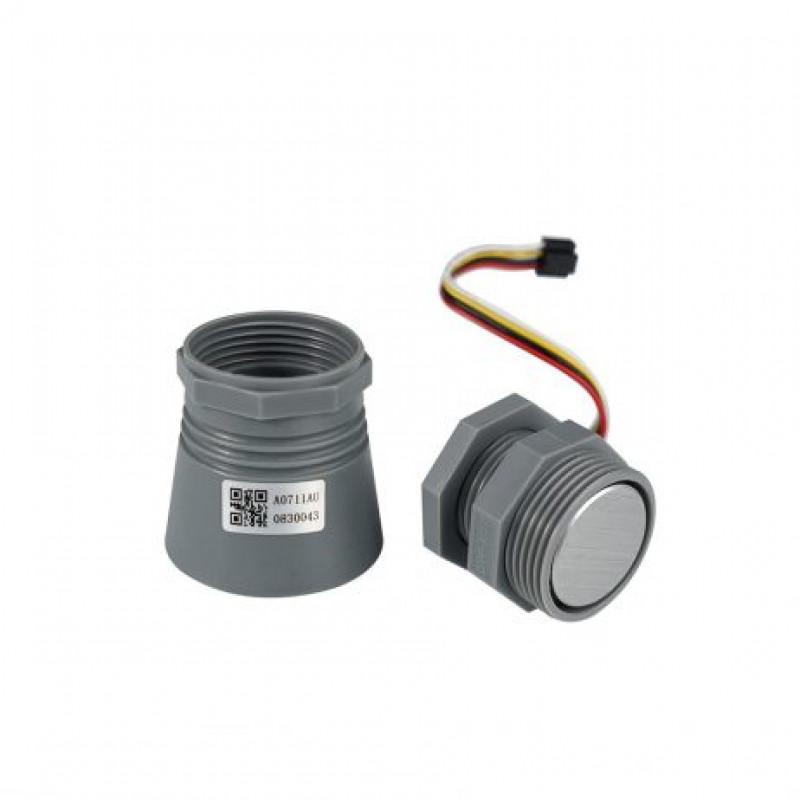

The A07 sensor module uses ultrasonic sensing technology for distance measurement. The module adopts high-performance processor and high-quality components, the product is stable and reliable, and has a long service life. The module uses a waterproof ultrasonic transducer, has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy, low power consumption, long measurement distance, and small measurement angle.

Features:

1. Adopts intelligent signal processing circuit, small blind zone and long measuring range
2. Build-in high precision algorithm, minimum error <10mm
3. Controllable measuring angle, high sensitivity and strong anti-interference ability
4. Build-in true target recognition algorithm, high target recognition accuracy
5. Multiple output interface detional, PWM, UART, SWITCH
6. Internal temperature compensation, stable value output from -15C to +60C
7. Low power consumption design, operating current<15mA Static current<10uA
8. 3.3-5.0V power input
9. Anti-static electricity design in accordance with IEC61000-4-2 standard
10. The ultrasonic transducer is anti-corrosive, high degree protection.
11. Support remote upgrade, flexible adjustment of software algorithm.
12. Operating temperature from -15C to +60C

Applications:

1. Narrow beam angle distance sensing.
2. Smart detection system.
3. Object proximity and presence awareness.
4. Sewer water level monitor.

Package Includes:

1 x Ultrasonic sensor-DYP-A07NYUB-V1.0 ( UART Auto )
