The A08 sensor module uses ultrasonic sensing technology for distance measurement. The module adopts high-performance processor and high-quality components, the product is stable and reliable, and has a long service life.

The module uses a waterproof ultrasonic transducer, has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy, low power consumption, long measurement distance, and small measurement angle.

Module Classification:

A08A Series: For plane distance measurement

Features:

1. Adopts intelligent signal processing circuit, small blind zone and long measuring range.
2. Build-in high precision algorithm, minimum error <10mm.
3. Controllable measuring angle, high sensitivity and strong anti-interference ability.
4. Build-in true target recognition algorithm, high target recognition accuracy.
5. Intelligent matching technology can automatically adjust the ultrasonic transducer to the best
6. working condition, good module performance consistency.
7. The measurement mode can beset to target the human body, flat objects and waste bin level.
8. Multiple output interface optional, PWM, UART, SWITCH.
9. Internal temperature compensation, stable value output from -15C to +60C.
10. Low power consumption design, operating current<15mA Static current<5uA.
11. 3.3-5.0V power input.
12. Anti-static electricity design in accordance with IEC61000-4-2 standard.
13. Operating temperature from -15C to +60C

Package Includes:

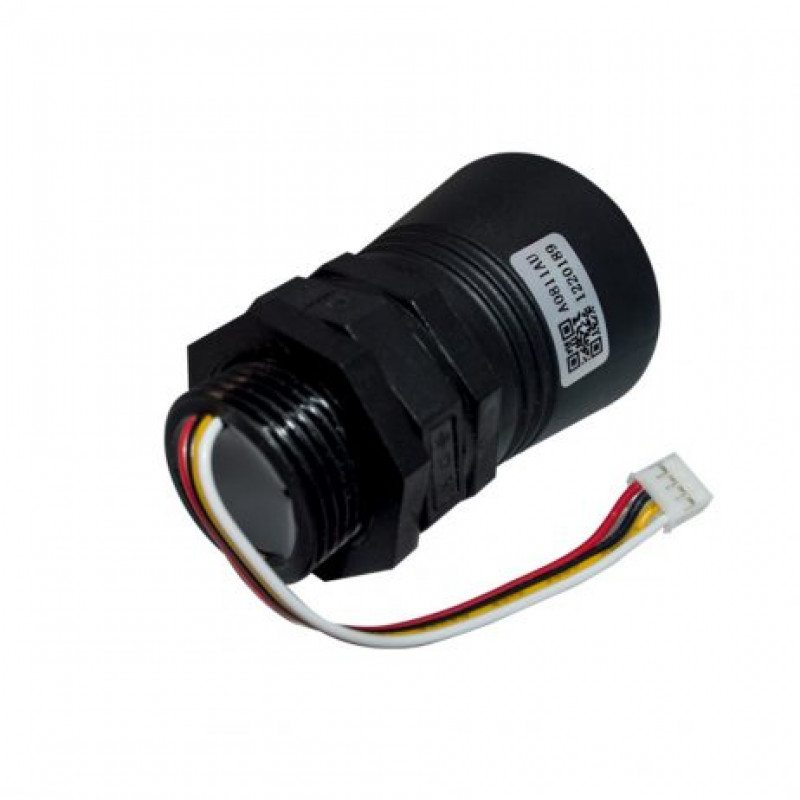

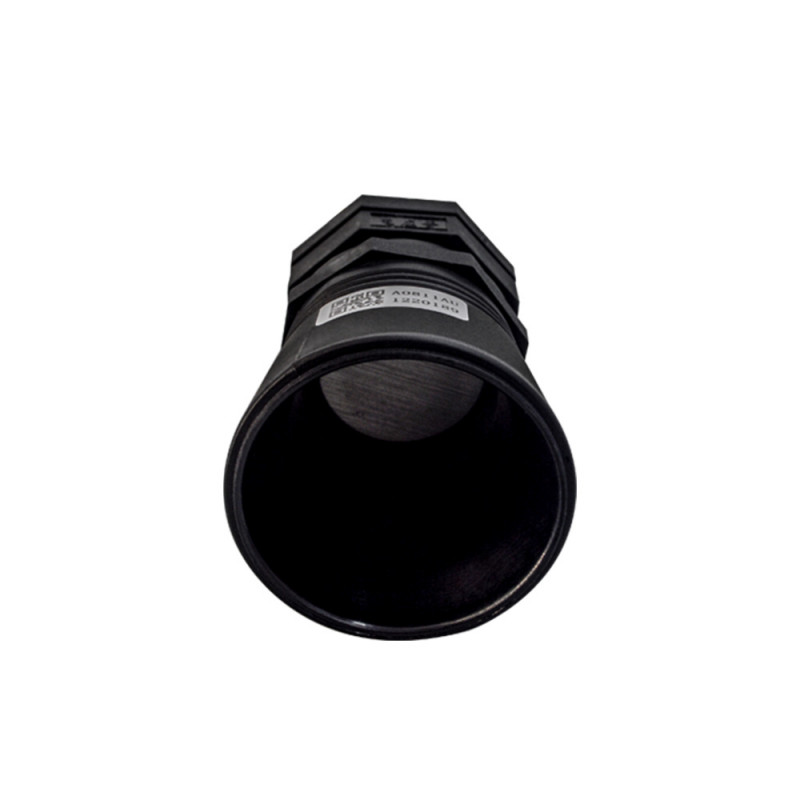

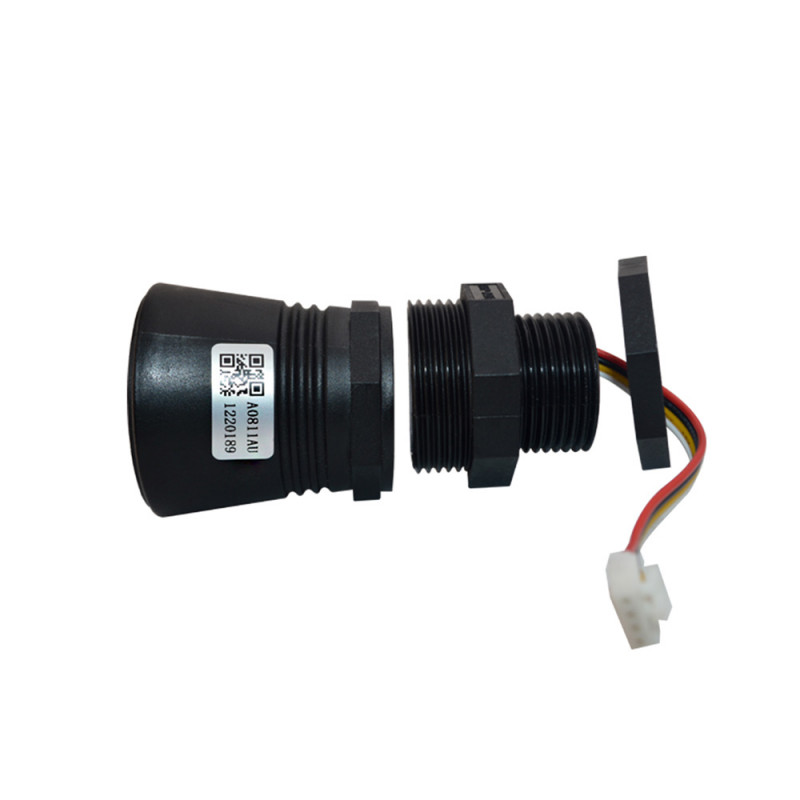

1 x Ultrasonic sensor-DYP-A08ANYTB-V1.0 ( UART controlled )
