A17 series ultrasonic sensor module designed with reflective structure, adopts high-performance processor and superior quality elements, providing reliable quality and long life span. Ultrasonic probe adopts anti-water technology design, effectively reduce the problem of probe condensation, IP67 suitable for harsh environments. Build in high-precision distance sensing algorithm and low power consumption procedure.

Features:

1. Adopting intelligent signal processing circuit, small blind zone, long detection distance, 25-1000 cm measuring range.
2. Build-in high-precision distance sensing algorithm, error<1cm.
3. Beam angle is controllable, high sensitivity and strong anti-interference ability.
4. Build-in target recognition algorithm, high target recognition accuracy.
5. Output interface optional, PWM, UART auto, UART Controlled, RS485 controlled.
6. Internal temperature compensation function, stable output from -15C to +60C.
7. Anti-water process design, reduce the problem of probe condensation.
8. Low power consumption design, static current < 10uA, operating current < 15mA.
9. 3.3-5.0VDC low voltage input.
10. Anti static electricity design in accordance with IEC61000-4-2 standard.
11. Firmware remote updating.
12. Operating temperature from -15C to +60C

Package Includes:

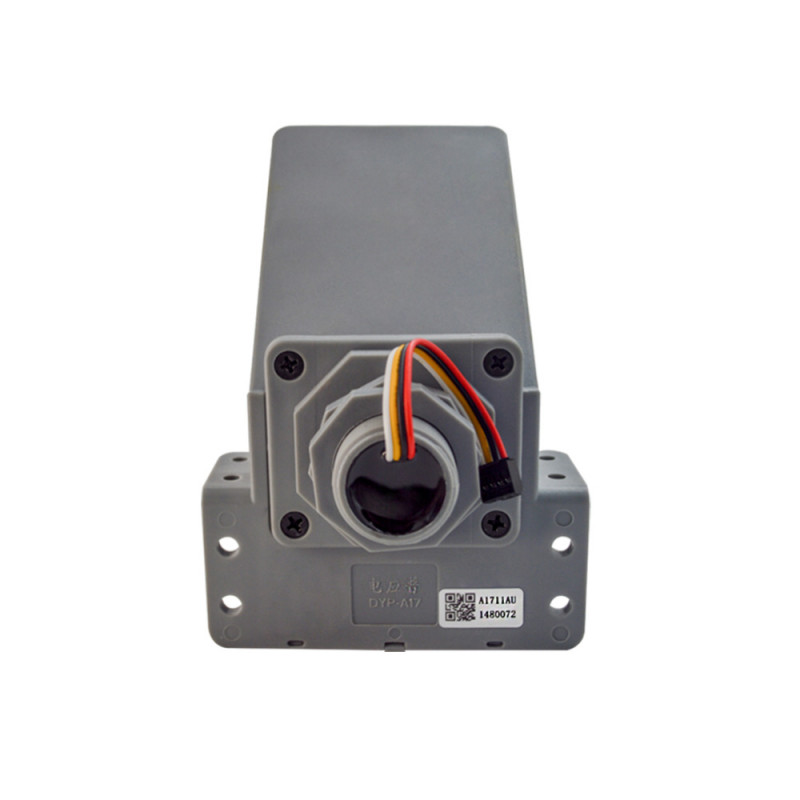

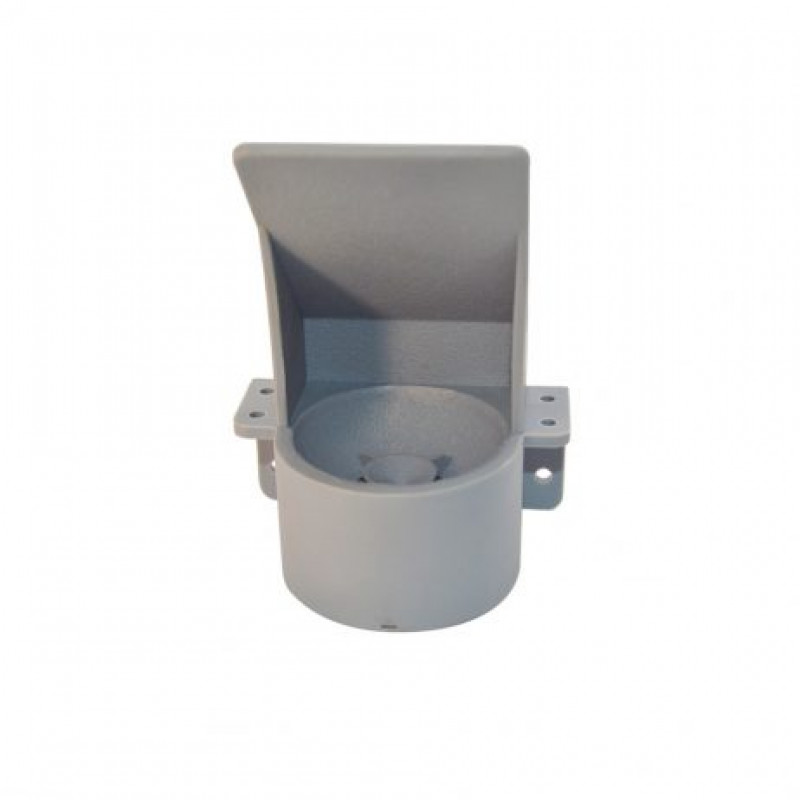

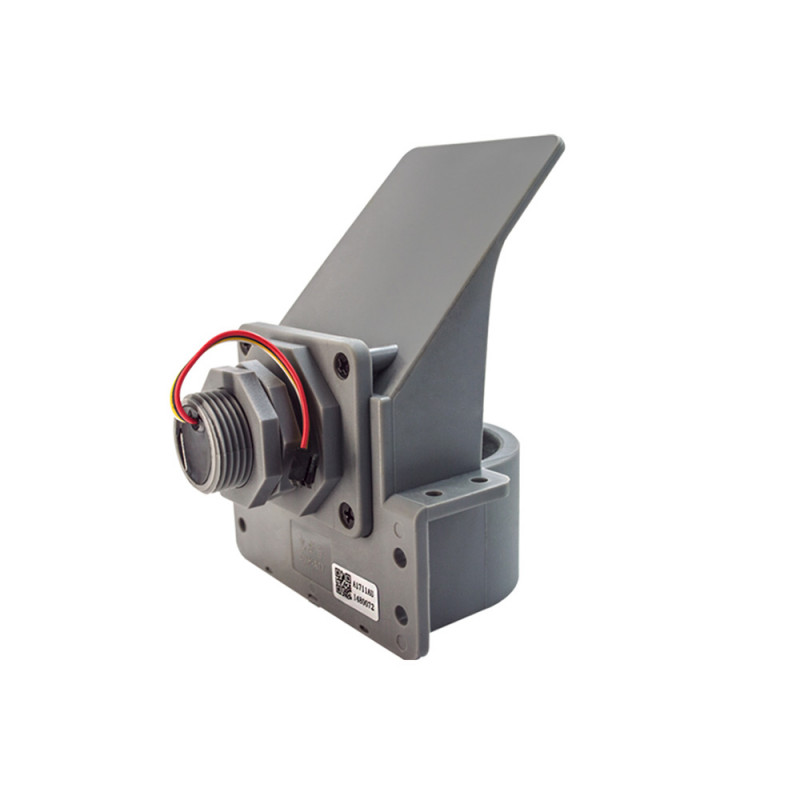

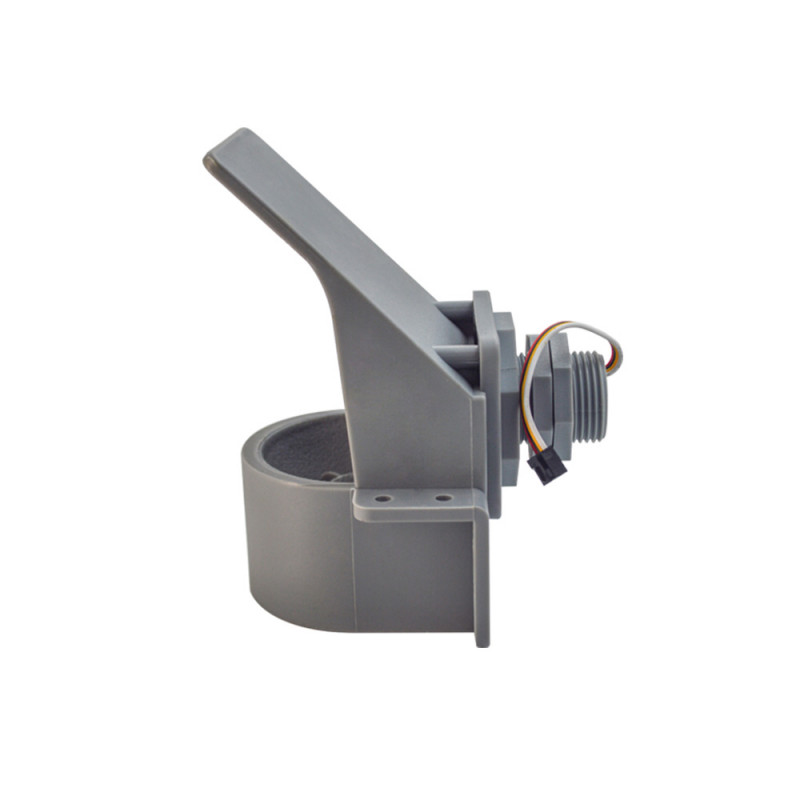

1 x Ultrasonic sensor-DYP-A17NY4W-V1.0 ( RS485 )
