L06-Liquefied gas liquid level is a sensor that uses high-frequency ultrasonic detection technology to measure the height of the liquid level of liquefied gas substances without contact. Users can connect to sensors through NB-Iot, HTTP, LokaWAN, etc. to upload data to the platform, and can remotely monitor the use of liquefied petroleum gas. L06-Liquefied gas liquid level is hereinafter referred to as sensor for description.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. 3.3V~5V supply voltage
2. Sleep current is less than 15uA (UART controlled)
3. 3cm standard blind zone
4. Detection liquid level range 3-100cm
5. Output interface: UART automatic, UART controlled, IIC, RS485
6. The default baud rate is 115200, which can support 4800, 9600, 14400, 19200, 38400, 57600, 76800
7. Measurement resolution 1mm
8. Measurement accuracy (5+S*1%)mm (S is the measured value)
9. Support horizontal inclination detection, range 0~180
10. Non-contact level measurement, safe
11. Real-time tracking of the full range, no need to restart when the empty container is filled with liquid
12. Working temperature -15C to +60C
13. Storage temperature -25C to +70C
14. Dustproof and waterproof industrial design, protection grade IP67
15. Electrostatic protection design, input and output interfaces are equipped with electrostatic protection devices, in line with IEC61000-4-2 standard

Package Includes:

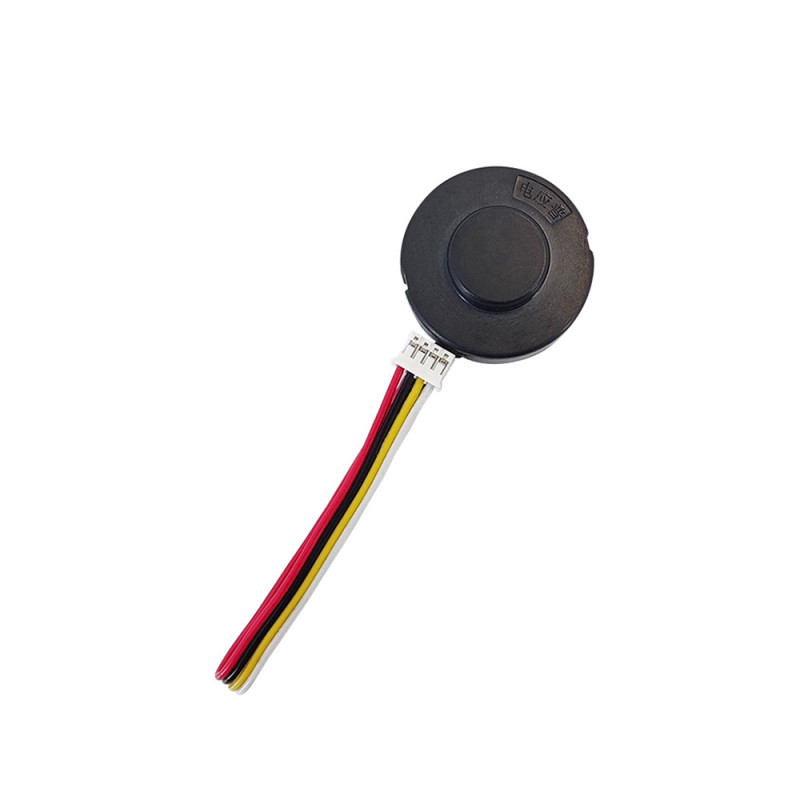

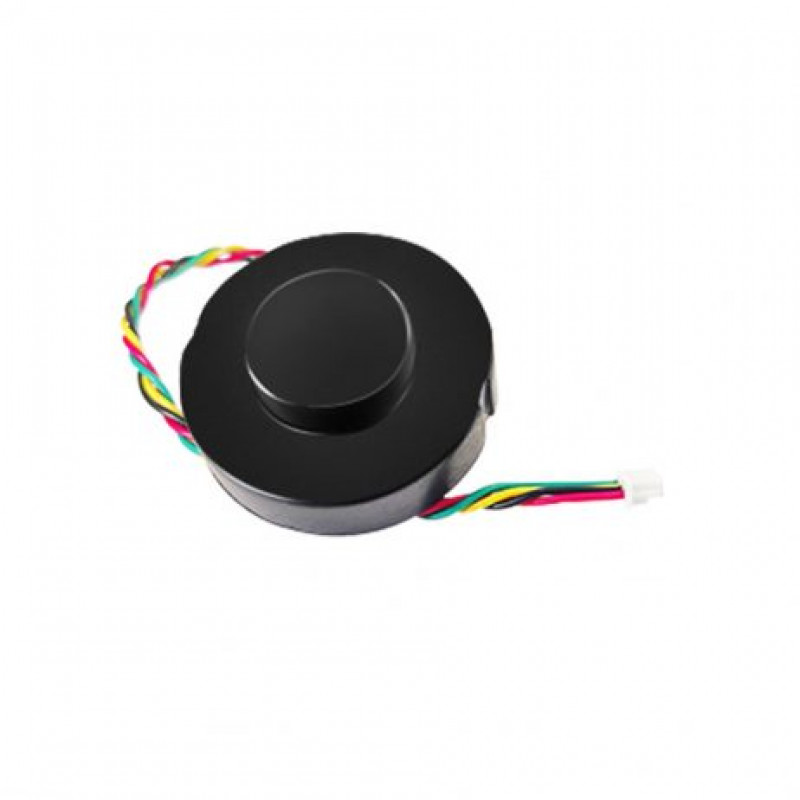

1 x Ultrasonic sensor-DYP-L062MTW-V1.0 ( UART Auto )
