A13 Series sensor module uses ultrasonic sensing technology with reflective structure for distance measurement. The module adopts high-performance processor and high-quality components which output reliable and stability value and has long life span. This module is a high-performance, high-reliability, commercial-grade functional module designed for trash bin overflow application. The stable distance measurement is 25~200cm.
Features:
- eflective structure design, high sensitivity, narrow beam angle.
- High stability, Repeatability is 5mm.
- Internal temperature compensation function, stable output from -15C to +60C.
- Operating temperature from -15C to +60C.
Applications:
- Horizontal distance sensing.
- Smart waste management system.
Package Includes:
1 x Ultrasonic SensorDYP-A13NYUW-V1.0 (UART
Auto)Measuring Range(25~200)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

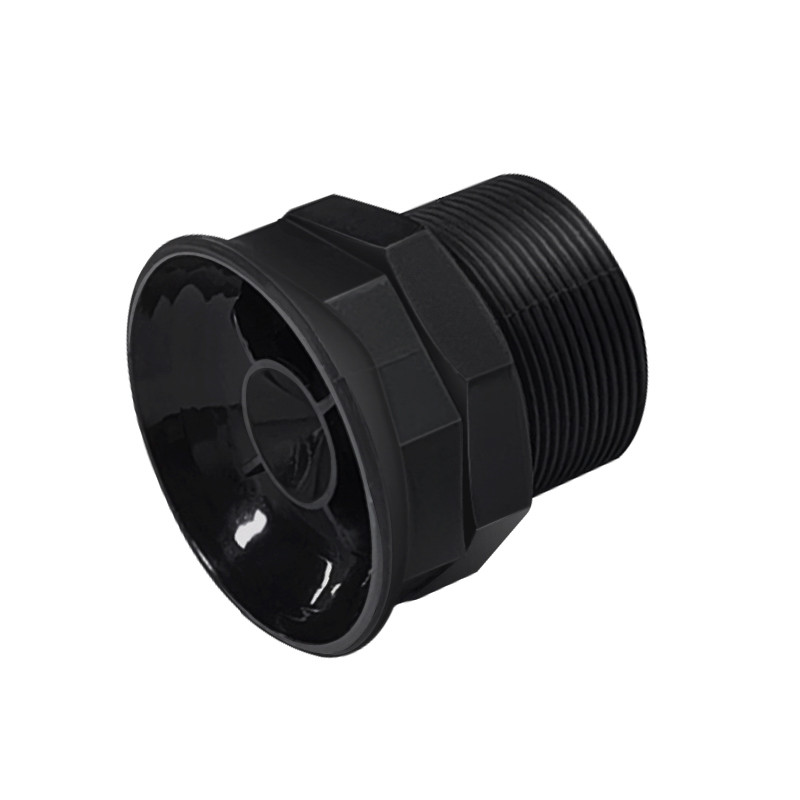

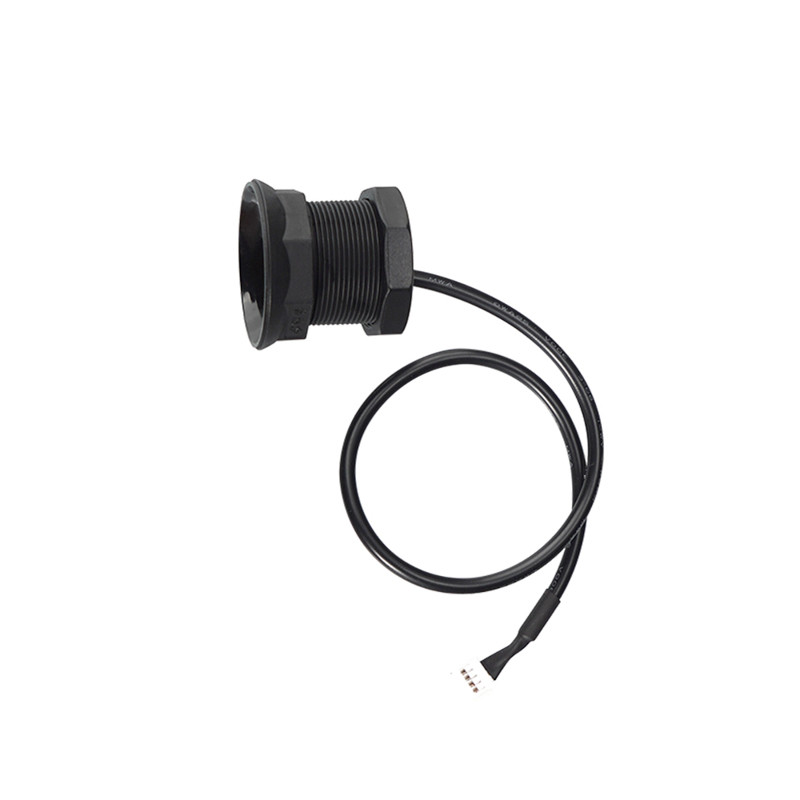

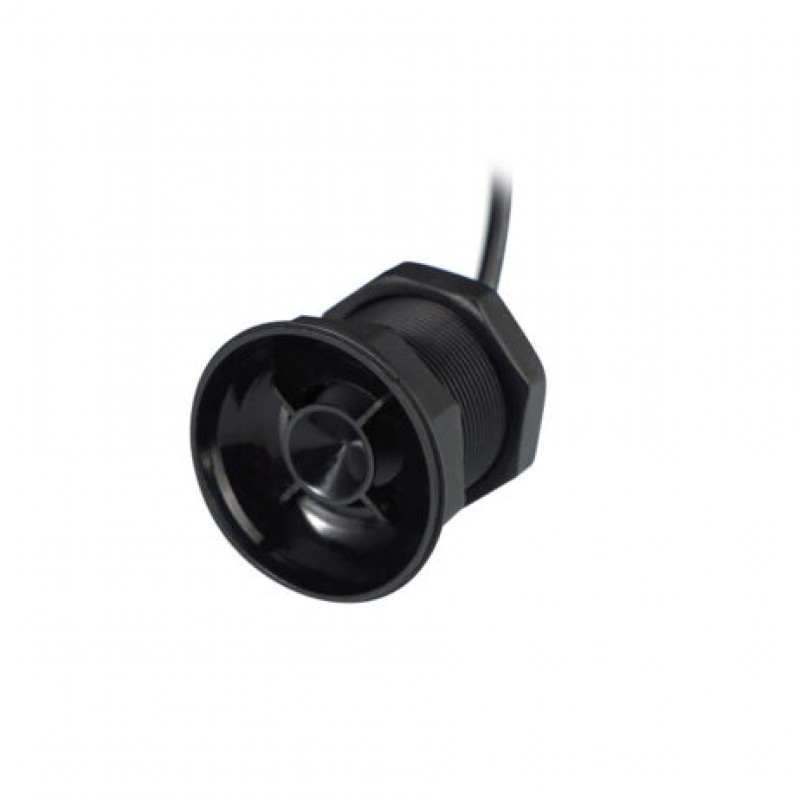

Ultrasonic SensorDYP-A13NYUW-V1.0 (UART Auto)Measuring Range(25~200)
- Product Code: EC-29565
- Availability: Out Of Stock
-
Rs.1611.00
- (Excluding 18% GST)
