YS sensor module that uses ultrasonic sensing technology for distance measurement. Its a closed waterproof transceiver probe design with cable with a certain level of dust and water resistance, strong adaptability to the working environment. The module has a built-in high-precision ranging algorithm and power management program, with high ranging accuracy and low power consumption.
Features:
- Intelligent signal process circuit, small blind zone.
- Build-in high accuracy distance sensing algorithm.
- Internal temperature compensation function, stable measurement from -15C to +60.
- Low power consumption design, standby current 10uA, operating current 8mA (12V input voltage).
Applications:
- Horizontal distance sensing.
- Solid level monitoring.
- Car parking management system.
- Robot obstacle avoidance, automatic control.
- Object proximity and presence awareness.
Package Includes:
1 x Ultrasonic SensorDYP-ME007YS-TX1 V2.0 (UART
Controlled)Measuring Range(28~450)
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

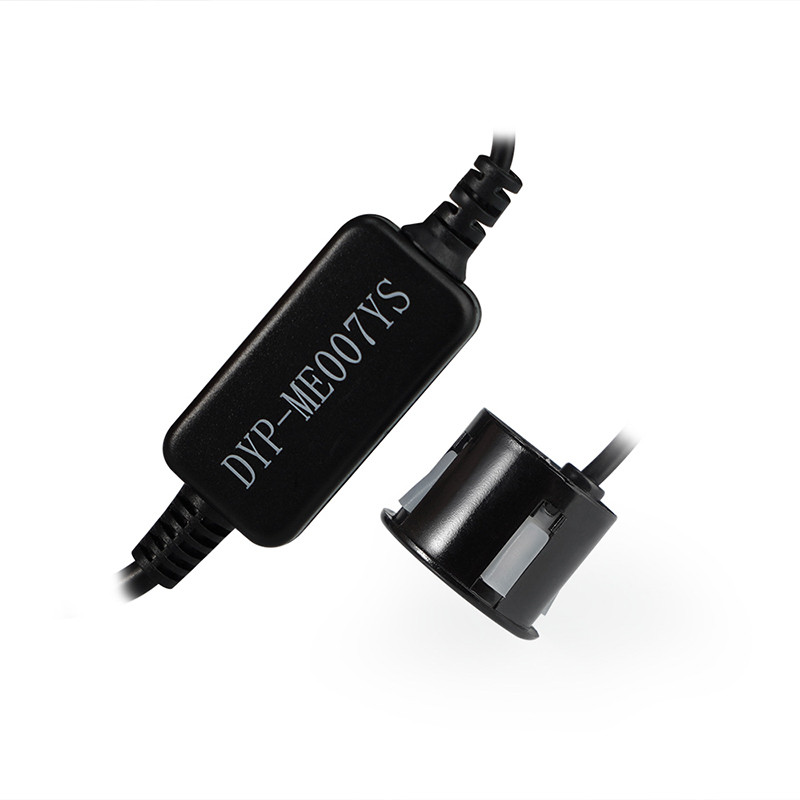

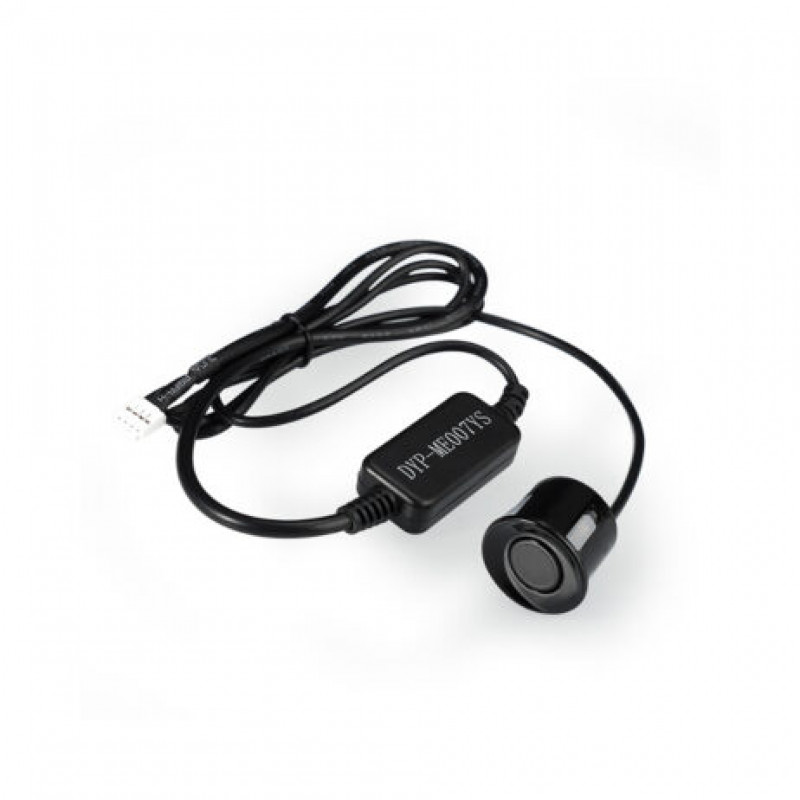

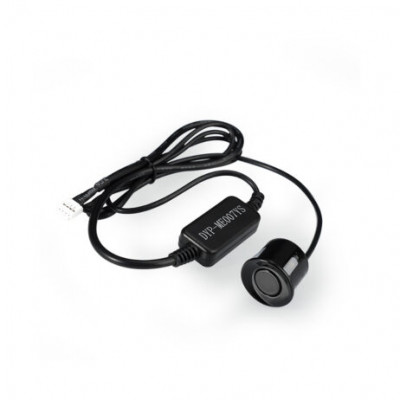

Ultrasonic SensorDYP-ME007YS-TX1 V2.0 (UART Controlled)Measuring Range(28~450)
- Product Code: EC-29556
- Availability: Out Of Stock
-
Rs.990.00
- (Excluding 18% GST)
