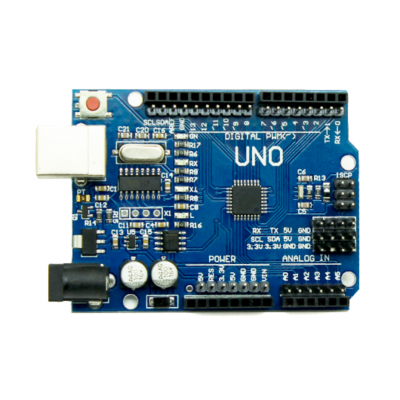

  • UNO R3 SMD Atmega328P Board - Clone Compatible Model

UNO R3 SMD is the open source Embedded Development board based on Atmega328 SMD Package Microcontroller. Because Atmel is moving more and more of their production capacity to surface mount ICs, the DIP packaged ATmega is becoming more and more difficult to get. To keep up with demand, we now offer the Uno R3 with an SMD ATmega. The board is identical to the PTH version of the Uno, but you won't be able to remove the ATmega without some hot-air. This change shouldn't affect most users


Specifications:-

Microcontroller : ATmega328 SMD.

Operating Voltage : 5V.

Supply Voltage recommended :  7-12V DC.

Digital I/O Pins : 14 (of which 6 provide PWM output).

Analog Input Pins : 6.

DC Current per I/O Pin : 40 mA.

DC Current for 3.3V Pin : 50 mA.

Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader.

SRAM : 2 KB (ATmega328).

EEPROM : 1 KB (ATmega328).

Clock Speed : 16 MHz.

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 529.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

UNO R3 SMD Atmega328P Board - Clone Compatible Model

  • Product Code: EC-2111
  • Availability: 286
  • Rs.449.00
  • (Excluding 18% GST)

  • Wholesale Pricing
    Select Quantity Discount Price per piece
    1 - 4 0% 449.0000
    5 - 9 1% Rs.445.00
    10 - 24 2% Rs.440.00
    25 - 49 3% Rs.435.00
    50 - 99 4% Rs.430.00
    100+ 6% Rs.420.00
