The ATtiny88 Nano V3.0 is a compatible and cheaper version of the Arduino Nano V3.0. This variant is based on the ATtiny88 Microcontroller chip. This board contains a Micro USB connection with which the ATtiny can be programmed and powered. Usually, Nano boards use a CH340 chip for converting USB to Serial, for example, but the ATtiny88 microcontroller has this built in.
Features:
- ATTINY88 Development Board
- 16MHz operation
- Compatible with NANO V3.0
- Improvement board for enhanced functionality
- Unsoldered components
Specifications:
- Microcontroller: ATtiny88
- 8KB Flash
- 512B SRAM
- 64B EEPROM
- Micro USB connection for programming
- Input voltage (VIN pin): 7V 12V DC
- I/O pin voltage: 5V
- Digital I/O Pins: 26 (including 2 PWM)
- Analog inputs: 8

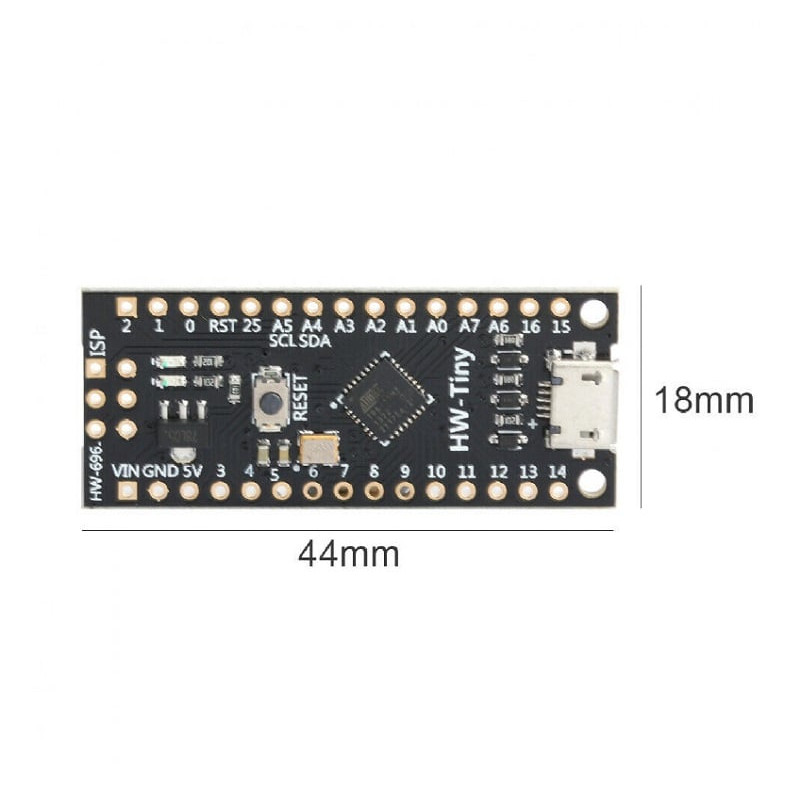

- Pin Layout: See images
- Dimensions PCB: See images
Package Includes:
1 x HW-696 ATtiny88 Nano V3.0
Male headers
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Unsoldered ATTINY88 Development Board 16Mhz Compatible NANO V3.0 Improvement Board
- Product Code: EC-18343
- Availability: Out Of Stock
-
Rs.158.00
- (Excluding 18% GST)
