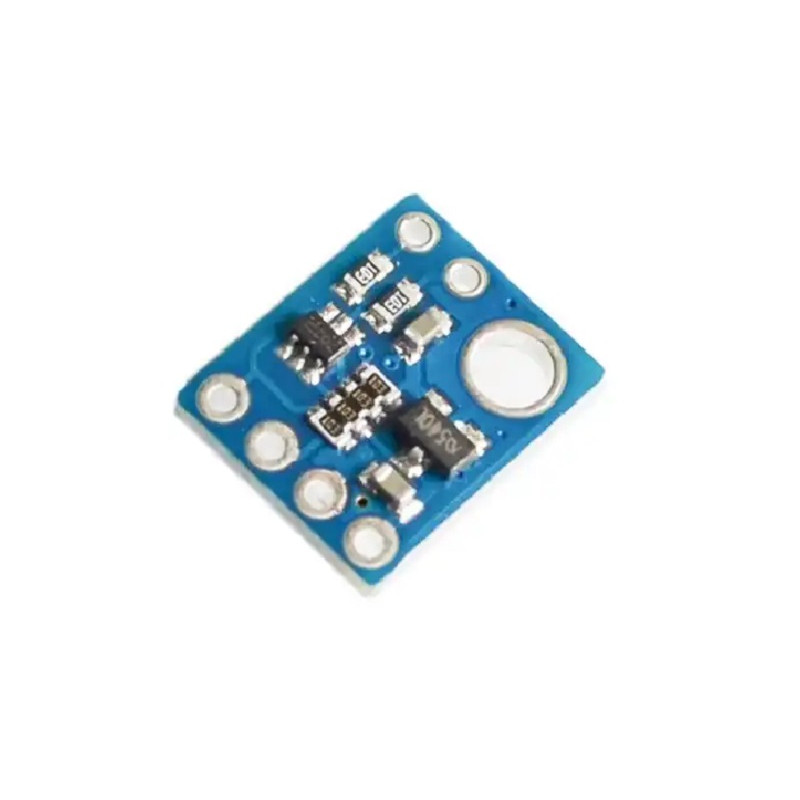

The Unsoldered Blue GY-6180 VL6180X is a versatile module integrating light sensing, distance measurement, and gesture recognition capabilities. Utilizing the VL6180X sensor provides accurate measurements. With unsoldered components and a distinctive blue color, it allows customization for electronic projects.

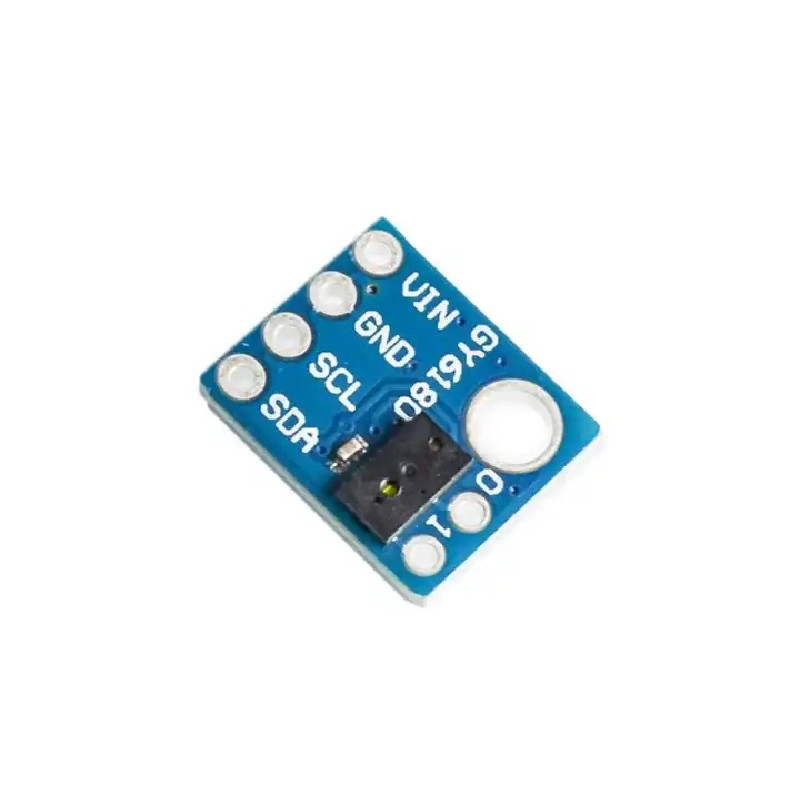

1. VIN This is the main power connection from 2.7 V to 5.5 V. The SCL and SDA level shifters pull the I line high to this level.

2. GND Power ground (0 V) connection.Your I control source must also share a common ground with this board.

3. I data line with SDA/SDI/SDO level conversion, HIGH is VIN, LOW is 0 V.

4. SCL/SPC level shifted I clock line, HIGH is VIN, LOW is 0 V.

5. GPIO0/CE This pin is configured as the chip enables input when the VL6180X is powered on. The board pulls it up to VDD standard to the sensor.Drive this pin low to put the sensor in hardware standby.After VL6180X is powered on, this pin can be configured as a programmable interrupt output (VDD logic level).This input/output is not level-shifted.

6.GPIO1 programmable interrupt output (VDD logic level).In the hardware standby state, VL6180X also drives this pin low level.This output is not level-shifted.

Features:

1. 2.8V voltage regulator: provide the required 2.8V for the sensor.
2. I2C level shifter: provide a logic level shift from 2.8V to VCC.
3. Three-in-one module/infrared transmitter/distance sensor/ambient light sensor: measuring distance up to 10cm, gesture recognition, I2C inter.
4. Two programmable GPIOs: clear sensor board layout.

Specifications:

1. Model: GY-6180
2. Sensor: VL6180X
3. Color: Blue
4. Length: 13mm
5. Width: 10mm

Package Includes:

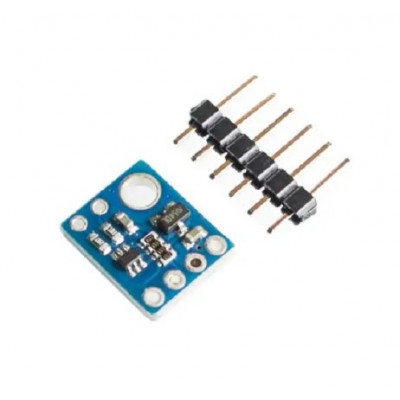

1 x light sensor

1 x 6P Pin Header
