Ultra wide 4:1 input voltage range
High efficiency up to 88%
No-load power consumption as low as 0.12W
I/O test isolation voltage: 1.5k VDC
Input under-voltage protection, output short circuit, over-current, over-voltage protection
Operating ambient temperature range: -40 to +85
Meet CISPR32/EN55032 CLASS A, without extra components
Input reverse polarity protection available with chassis(A2S ) or Din-Rail mounting (A4S) version
IEC60950, UL60950, EN60950, EN62368 approved
Meets EN50155 railway standard
Industry standard pin-out

I/p Voltage range:9-36V
Nominal voltage:24V
O/p voltage: ±15V
O/p current: ±200/0mA
wattage:6W
Isolation:1.5kvdc
Package: DIP

1 x URA2415YMD-6WR3 Mornsun 24V to ±15V DC-DC Converter 6W Power Supply Module - DIP Package


Brand/Manufacturer	Mornsun
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 1167.02 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

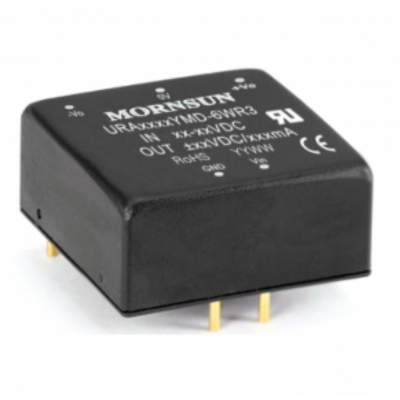

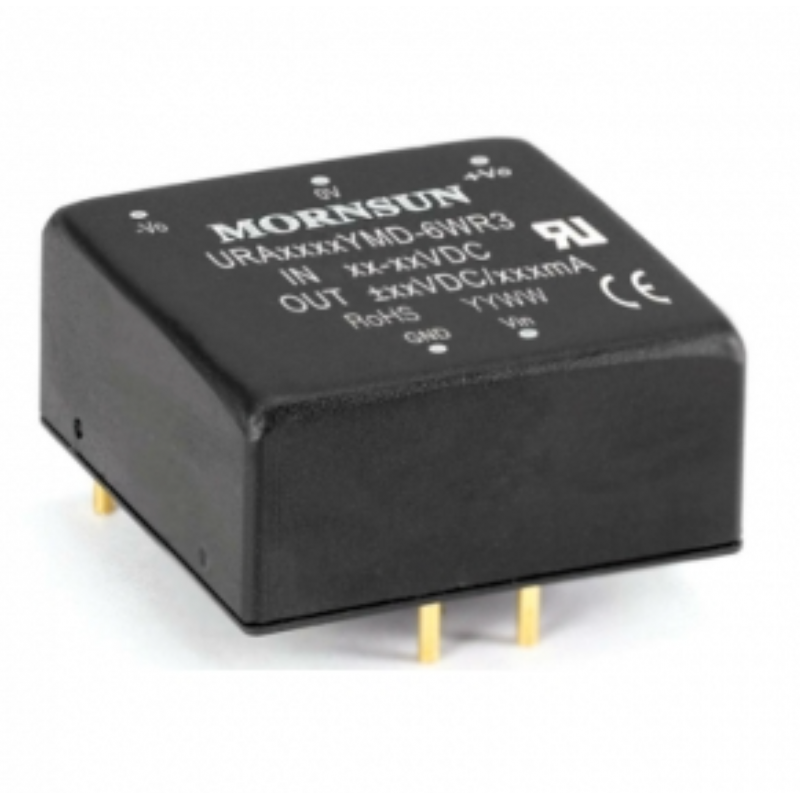

URA2415YMD-6WR3 Mornsun 24V to ±15V DC-DC Converter 6W Power Supply Module - DIP Package
