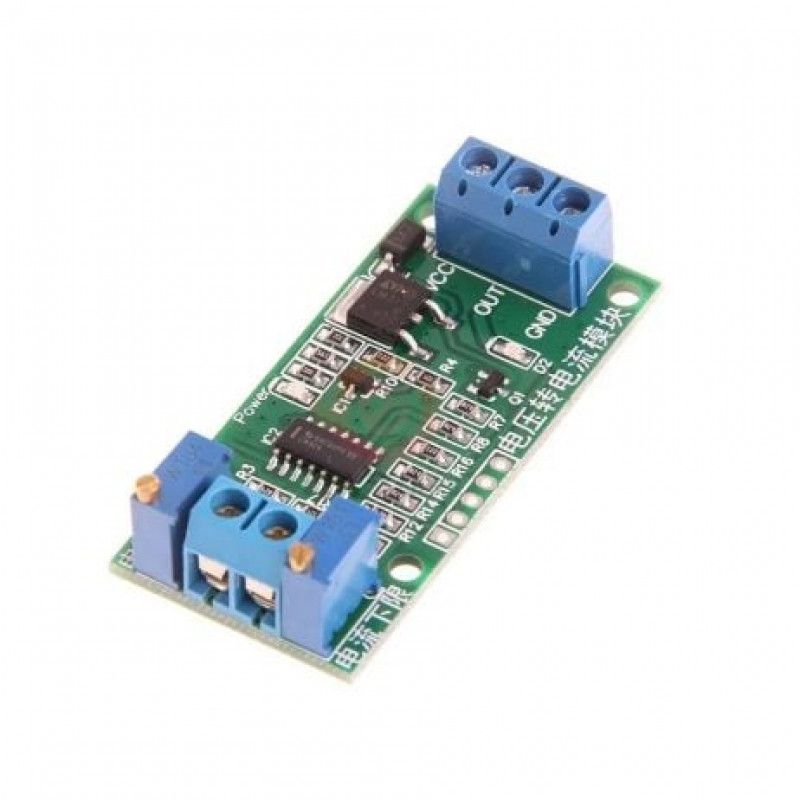

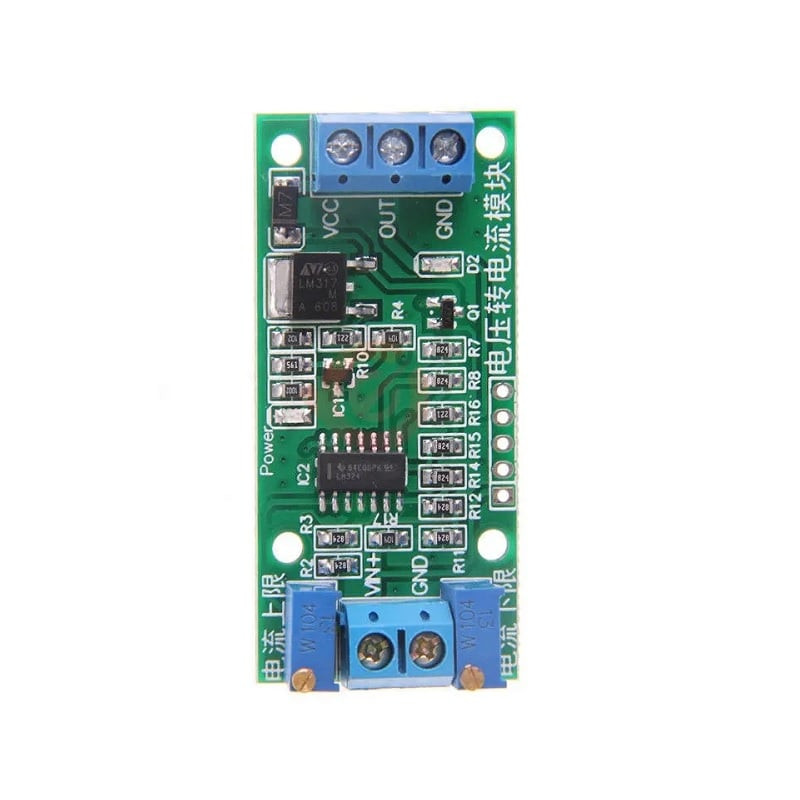

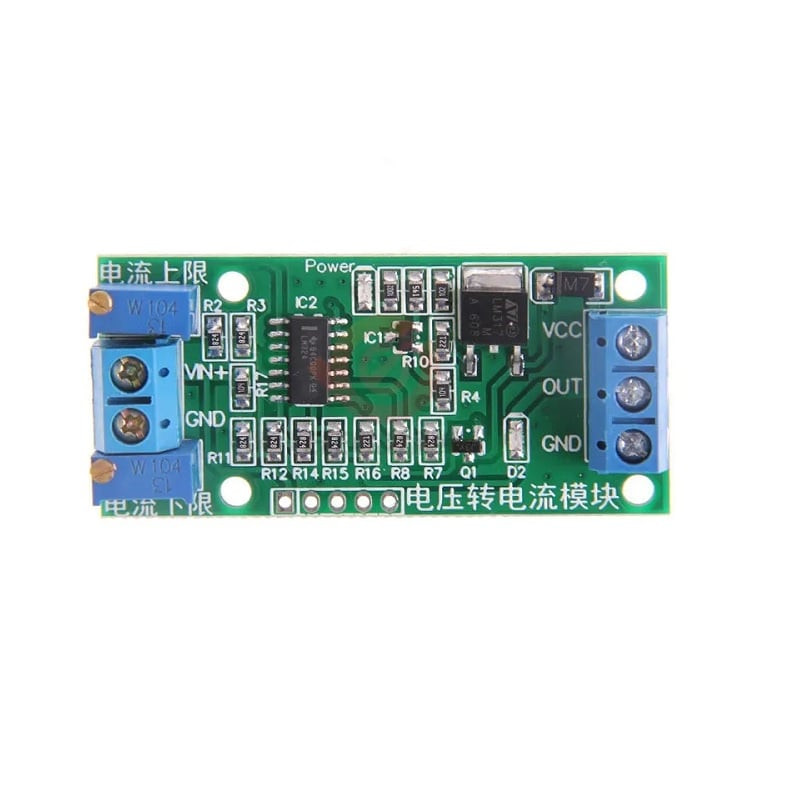

Voltage to Current Module 0-5V to 4-20mA Current Transmitter Signal module can convert 0-5V voltage signal into 4-20mA current signal. In the process of signal transmission circuit voltage signal will become weak with transmission distance increased, the transmission can be avoided using weak electric current signal.
Features:
- Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
- The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
- Output current: O-20mA or 4-20mA
- Both zero point and full scale can be adjusted by potentiometer
- The module has isolation properties, non-optocoupler isolation.
Specifications:
- Power supply voltage: DC 12V~24V.
- Inputvoltagesignal: 0~5V.
- Output current: 4-20mA
- Zero and span can be adjusted (potentiometer adjustment).
- With the isolated nature of the non-optically isolated.
Package Includes:
1 x Voltage to Current Module 0-5V to 4-20mA Current Transmitter Signal
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 241.9 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Voltage to Current Module 0-5V to 4-20mA Current Transmitter Signal
- Product Code: EC-18389
- Availability: 27
-
Rs.184.00
- (Excluding 18% GST)
