This W3230 Digital Temperature Controller Microcomputer Thermostat Switch features an NTC 10K waterproof temperature sensor. When the temperature of the object reaches a certain set temperature at that time the microcomputer switches on the relay, inturn switching on the device connected to the output terminals.

Applications:

1. Outdoor use uses involving potential chemical contamination or electrical interference
2. Nuclear energy control systems, combustion systems, railroad systems, aviation systems
3. Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
4. Systems, machines, and equipment that could present a risk to life or property
5. Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.

Features:

1. Mini temperature controller.

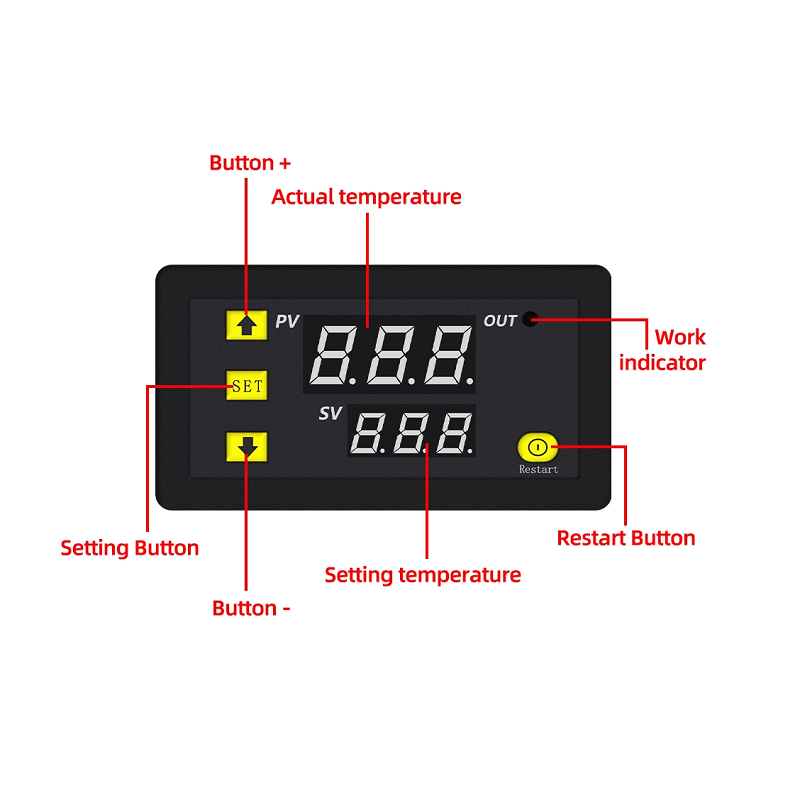

2. With a clear LED display for better readability.
3. Wide temperature measuring range.
4. Heating or cooling control.
5. All parameters set can be saved after a short circuit.
6. Relay output.
7. High Control precision 0.1 centigrade

Package Includes:

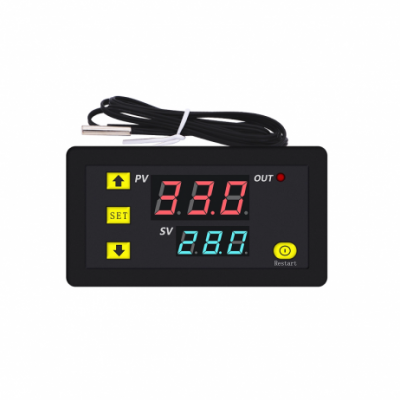

1 x W3230 DC24V Digital Temperature Controller Microcomputer Thermostat Switch

Specifications :-

Model	W3230
Input Supply Voltage (VDC)	24
Output Relay Contact Capacity	10A 220V / 20A 12V / 20A 24V
Temperature Control Range (C)	-55 ~ 120
Display Color	red/blue
Resolution Ratio	0.1C(-9.9-99.9)
Control Accuracy	0.1C
Measurement Accuracy	0.1C
Temperature Sensor	NTC10K Waterproof sensor
Working Temperature Range (C)	-10 ~ 60
Working Humidity Range	20%~85%
Length (mm)	71
Width (mm)	39
Height (mm)	26
Weight (gm)	44
Shipment Weight	0.05 kg
Shipment Dimensions	8 4 3 cm
