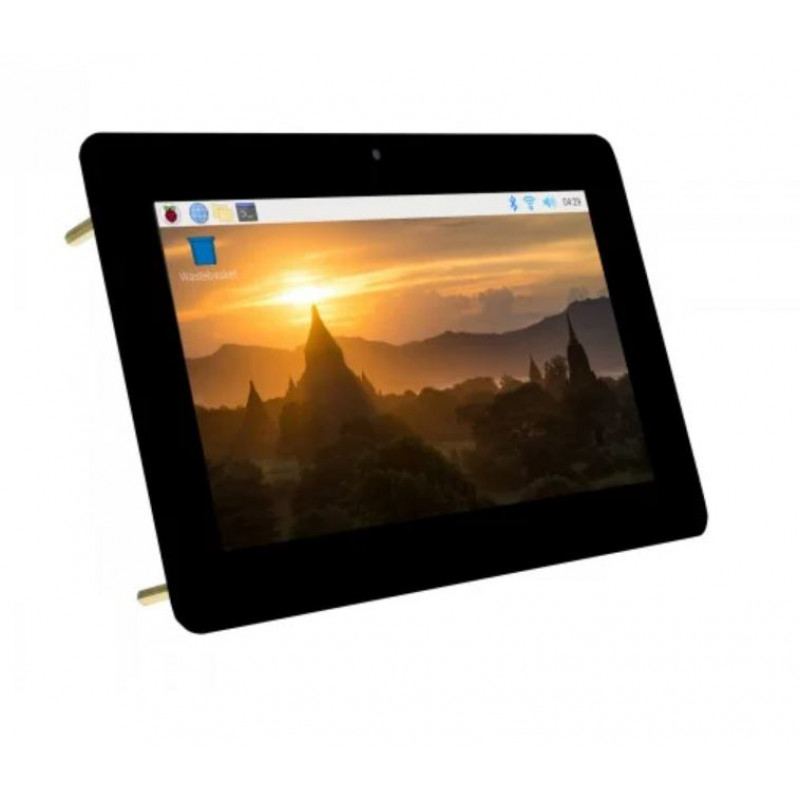

The Waveshares 8-inch capacitive touch screen with a hardware resolution of 800480 capacitive touch screen with 5-point touch tempered glass. The LCD integrates an OV5647 camera, 500W pixels, a 72.9-degree diagonal field of view, resolution of 25921944. This LCD supports Pi Pi 4B/3B+/3A+/3B/2B/B+/A+, another adapter cable is required for CM3+/4 and drives the LCD directly through Raspberry Pis DSI interface with a refresh rate of up to 60Hz. The backlight can be adjusted by software. The LCD drives the camera directly through the CSI interface of Raspberry Pi, the video frame rate supports 19201080p@30, 1280720p@60, 640480p@60, and 640480p@90.
Features:
- Size: 8inch
- Resolutions: 800480
- Front Camera: 5Mp
- Display port: DSI
- Camera Port: CSI
- Touch Type: Capacitive
- Touchpoints: 5 Points
- Touch panels: Toughened Glass
- Power Consumption: Low
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- Power supply via pogo pins, eliminating messy wiring
- Two types of 5V output headers, for connecting cooling fan or other low-power devices
- With OV5647 5MP camera, 72.9 diagonal FOV, 25921944 resolution
- Large front panel design, make it easy to match user-defined cases or to be integrated into sorts of devices
- Adopts SMD nuts for holding and fixing the board, a more compact structure
Packages Includes:
1 x Waveshare 8inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera, 800480, DSI
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 9193.38 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 8inch Capacitive Touch Display for Raspberry Pi, with 5MP Front Camera
- Product Code: EC-17875
- Availability: 2
-
Rs.7791.00
- (Excluding 18% GST)
