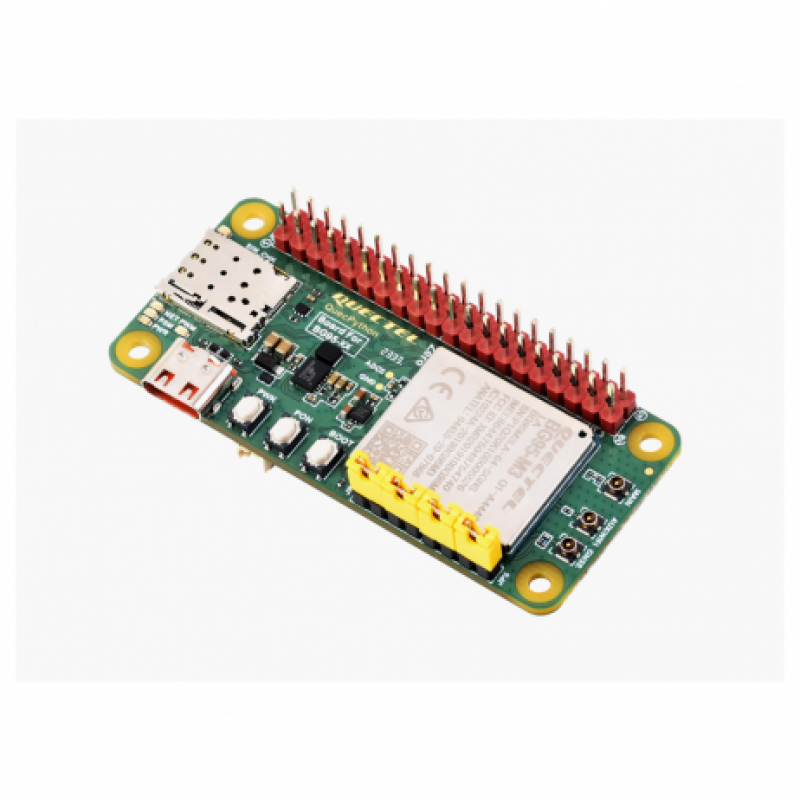

The BG95-M3 Zero development board is equipped with BG95-M3 module, which is a multi-mode LPWA module supporting LTE Cat M1 / LTE Cat NB2 / EGPRS. It is 3GPP Rel-14 compliant and offers maximum data rate of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. Features ultra-low power consumption with built-in MCP as well as the ARMCortex A7 processor supporting ThreadX.

Note: For more information about this product click on link https://www.waveshare.com/wiki/BG95-M3_Zero

Features:

1. Equipped with BG95-M3 main module, supports LTE Cat M1 / LTE Cat NB2 / EGPRS networking, applicable across global regions.
2. Onboard 40PIN GPIO header, compatible with most Raspberry Pi HATs.
3. 5 LEDs for indicating module operating status.
4. Onboard Type-C port for easy development with just a USB Type-C cable.
5. Supports PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 protocols, etc.
6. Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS).
7. Onboard Nano SIM card slot, supports 1.8V SIM card, and is designed near the edge of the board for easy insertion and removal of SIM card.
8. Onboard MIPI interface, support MIPI screen and Raspberry Pi peripheral devices.
9. Onboard camera interface, support customized SPI camera with up to 30MP.
10. Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development.
11. Comes with online development resources and manual (example in QuecPython).

Package Includes:

1 x Waveshare BG95 EVB Development Board.
