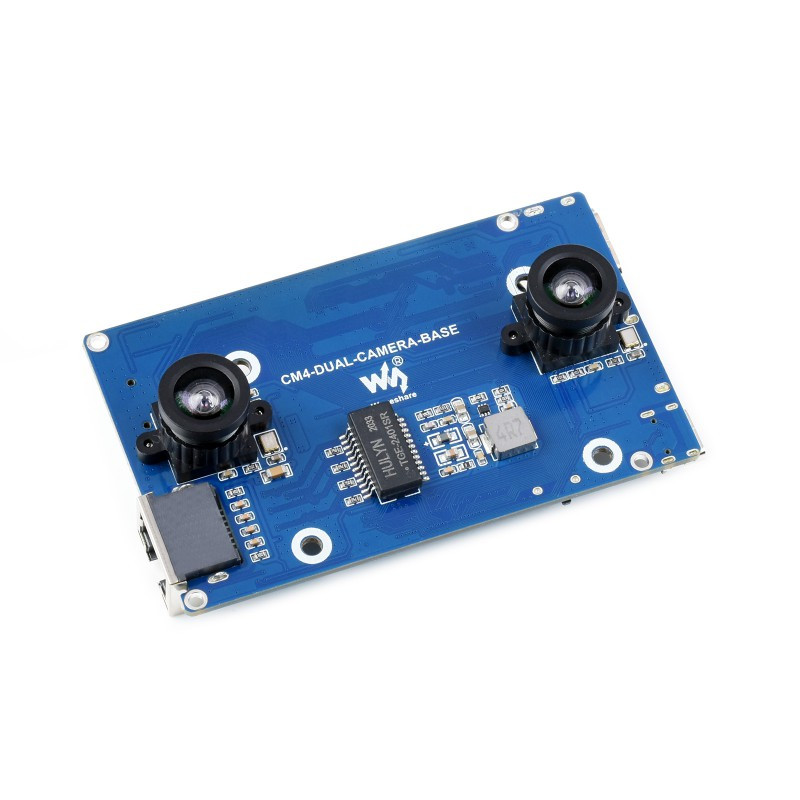

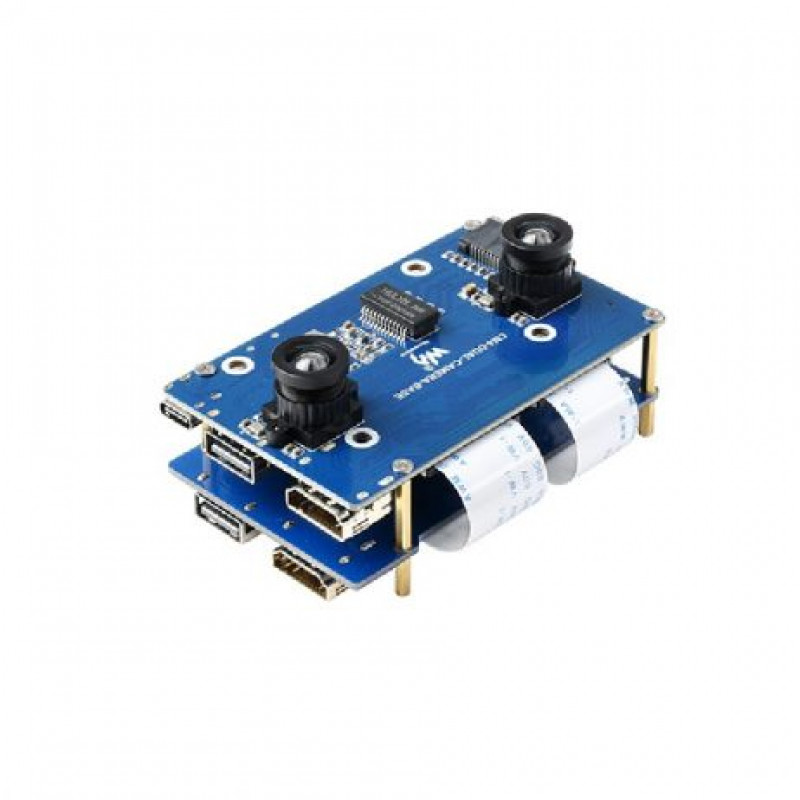

This is a Waveshare Binocular Camera Base Board Designed for Raspberry Pi Compute Module 4. Two IMX219 800MP cameras are integrated for stereo vision projects. An interface expander board is optional for connecting other accessories.

Application:

1. Intelligent traffic: Detection and recognition for motor vehicles, non-motor vehicles, pedestrians, traffic signs, traffic events
2. Intelligent driving: Recognizing and ranging around vehicles and road conditions, recognizing the driver status, and providing intelligent assistance.
3. Math contest: Suitable for teaching competitions like robotic vision, OpenCV, AI IoT projects, Python programming, and so on.
4. Robotics: Used in the industrial robots field, enabling robot functions like target identification, positioning, size measuring, binocular depth mapping, and navigation
5. AI: For AI Applications Like Vision Robots, Depth Vision Projects, and Stereo Vision Projects

Specification:

1 CM4 socket Suitable for all versions of Compute Module 4
2|HDMI connector supports 4K 30fps output
3 USB 2.0 ports for connecting sorts of USB devices
4 PWR & USB USB-C connector, 5V DC power supply or USB programming port
5 BOOT selection ON: CM4 will be booted from the USB-C interface
OFF: CM4 will be booted from eMMC or Micro SD card
6 CM4 status indicator PWR: Raspberry Pi power indicator
ACT: Raspberry Pi operating status indicator
7 RJ45 Gigabit Ethernet 10/100/1000M compatible
8 Micro SD card slot for connecting a Micro SD card with the pre-burnt image (Lite variant ONLY)
9 GPIO FFC connector for expanding 40PIN GPIO
10 HDMI & PCIe & USB FFC connector for expanding HDMI1, PCIe, USB
11 Dual cameras IMX219, 8MP

Useful link:

For Software setup, please follow this tutorial.

Package Includes:

1 x Dual camera base
1 x Screws pack
1 x OPTIONS Interface expander
2 x OPTIONS FFC
