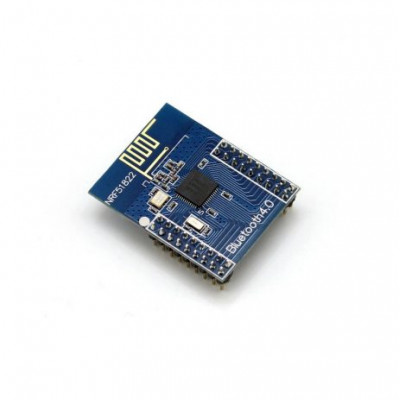

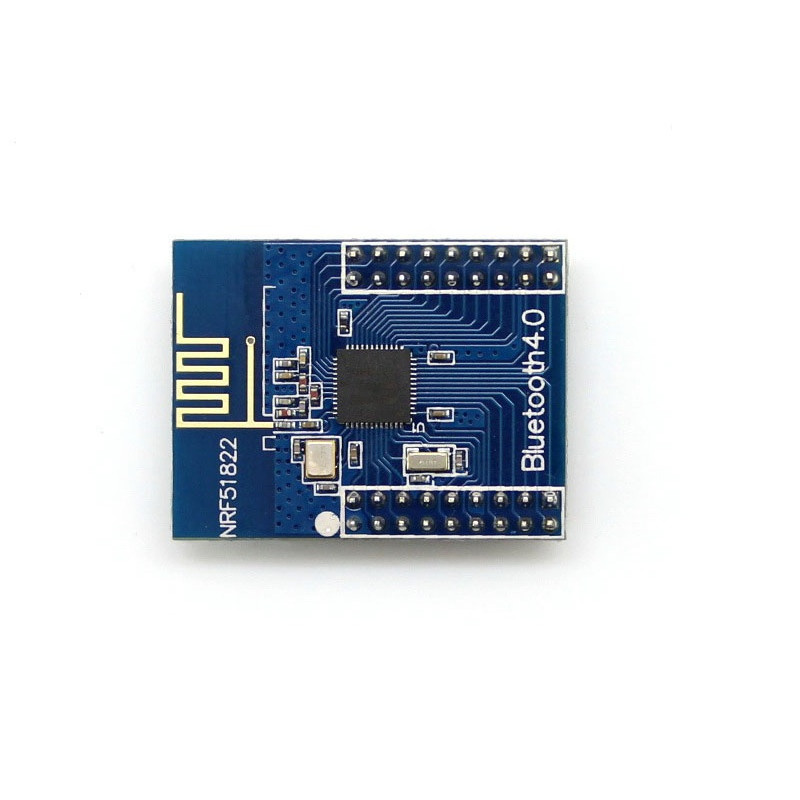

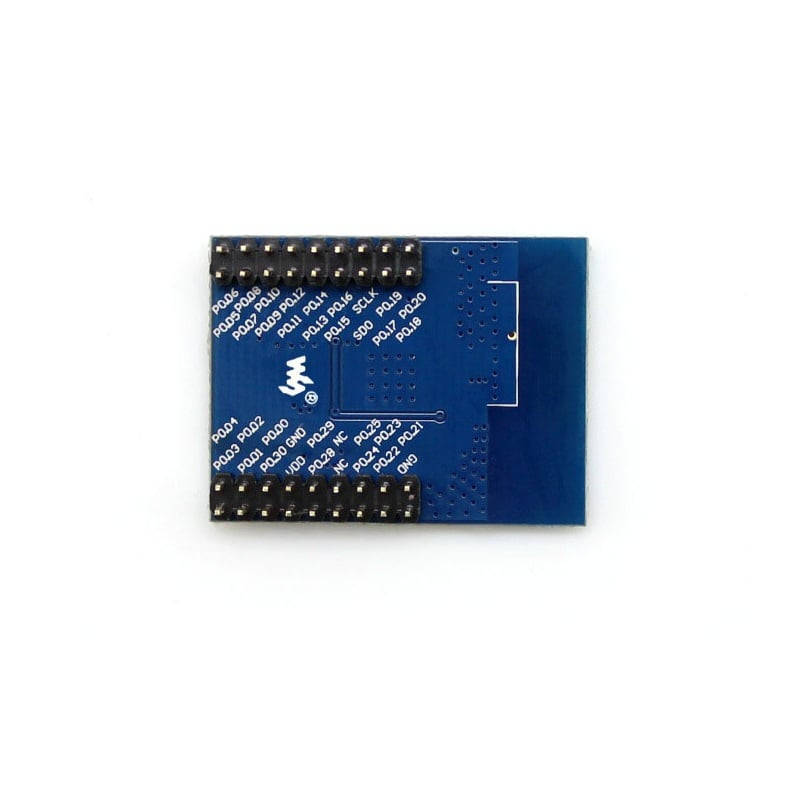

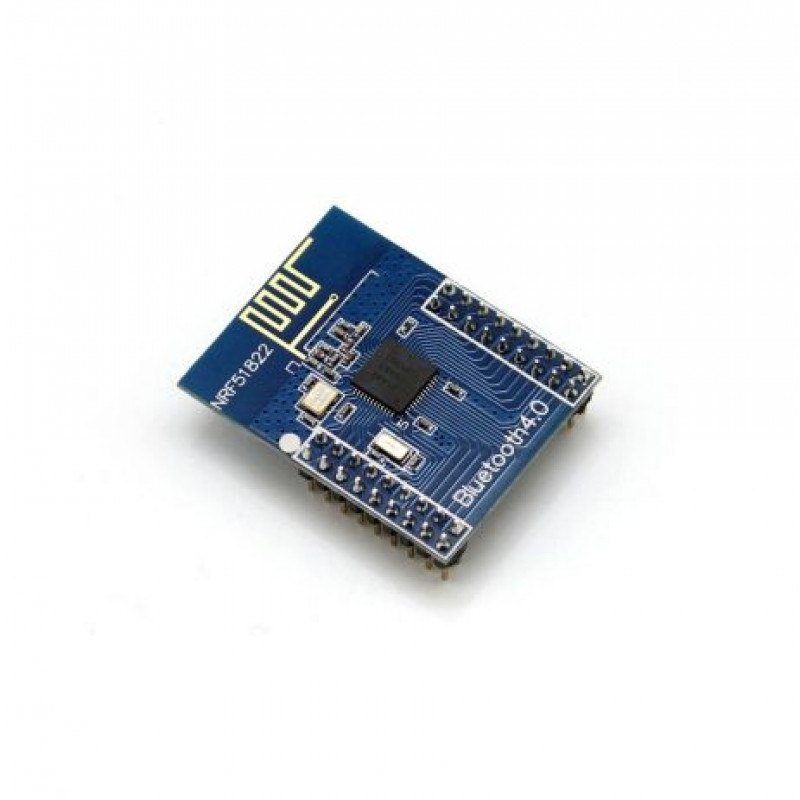

NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board is a Core51822is a wireless module based onnRF 51822 the Multiprotocol Bluetooth 4.0 low energy/2.4 GHz RF SoC designed for ULP (ultra-low power) wireless applications.


Applications:
  1. Wearable devices
  2. Bluetooth intelligent application
  3. Mobile phone accessories
  4. RFID labels
  5. Smart home appliances
  6. Industry control
  7. Data acquisition system

Revision History:
  • 2015.06, Core51822 upgrades the onboard chip to Rev3, features 32kB RAM, supports higher version SDK, and all the demo codes are still compatible with the Rev2 ones.

Note: Motherboard in the photo is NOT included in the package


Features:

  1. 2.4 GHz multiprotocol RF transceiver
  2. ARM Cortex M0 32 bit processor
  3. 128 bit AES HW encryption
  4. 256kB flash & 32kB RAM
  5. Programmable Peripheral Interconnect (PPI)
  6. 10 bit ADC
  7. Programmable output power: -20 to +4 dBm
  8. Independent application development and protocol stack
  9. Fully compatible with NRF24L series
  10. Pinout compatible with NRF51xxxseries
  11. Global separate power management
  12. Onboard Antenna

Package Includes:

1 x NRF51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 984.12 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board

  • Product Code: EC-17634
  • Availability: 1
  • Rs.834.00
  • (Excluding 18% GST)
