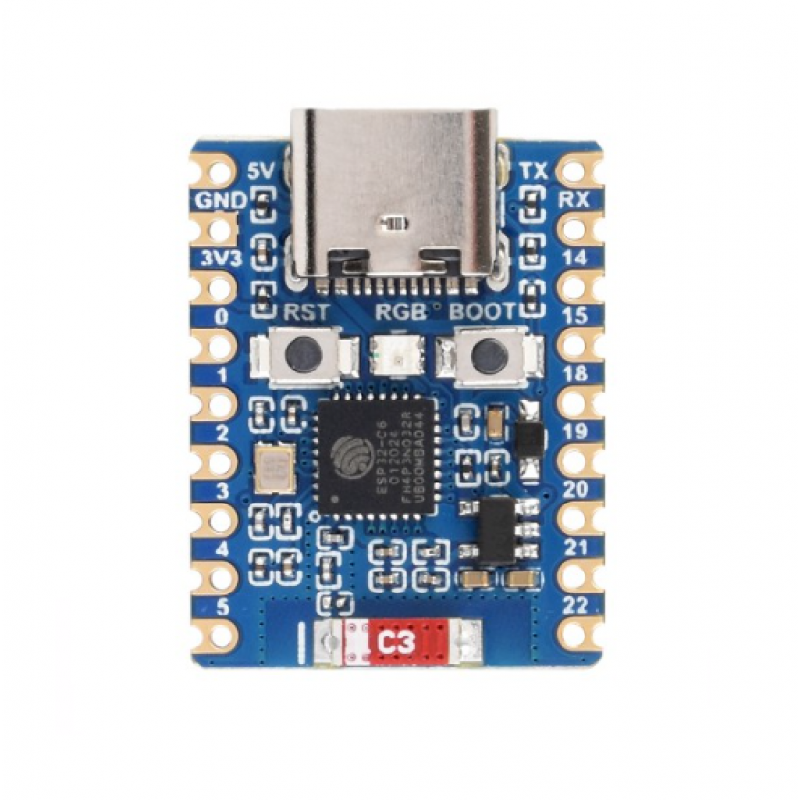

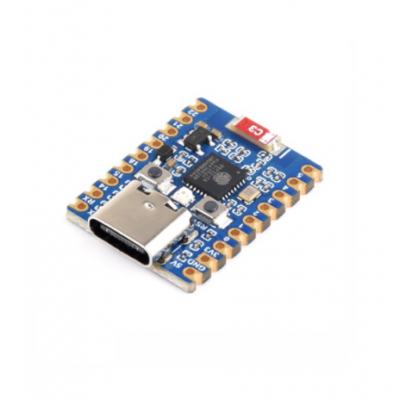

ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board. The ESP32-C6-Zero is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces.

Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz, and built-in 320KB ROM 512KB HP SRAM, 16KB LP SRAM, and 4 MB flash. Onboard standard Raspberry Pi Pico pin headers, it can be compatible with multiple peripheral devices and is easier to use in different application scenarios.

You can choose ESP-IDF and Arduino in software so that you can easily and quickly get started and apply it to the product.

Features:

1. Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
2. Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
3. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
4. Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
5. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
6. Onboard USB Type-C port, 22 GPIO pins allows flexibly configuring pin functions

Specifications:

1. Processor: 32-bit RISC-V
2. ROM: 320KB
3. SRAM: 512KB
4. Flash memory: 4MB
5. USB: Type-C

Package Includes:

1 x Waveshare ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board
