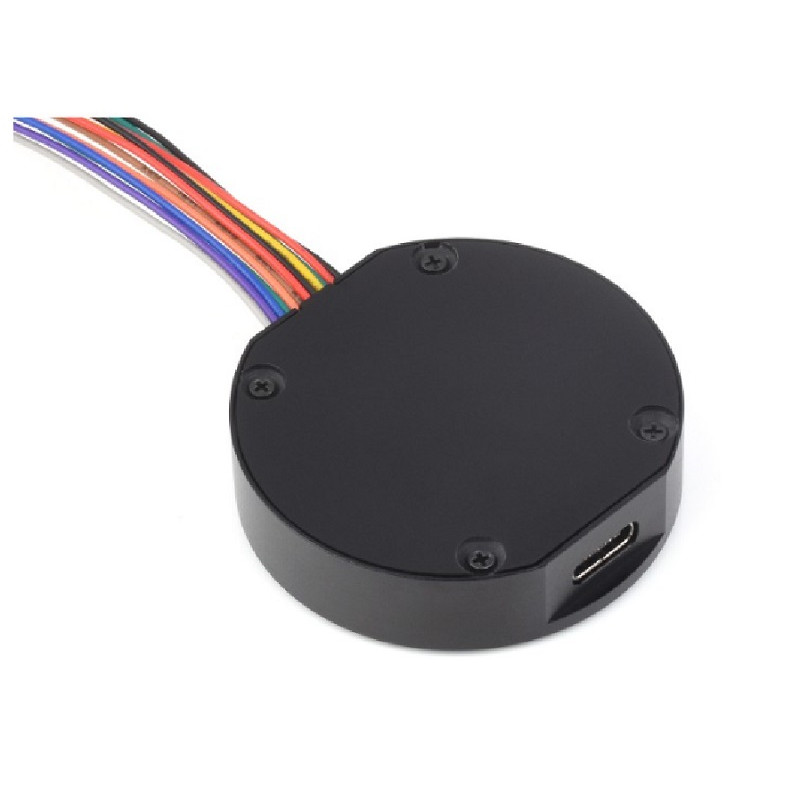

ESP32-S3 Development Board, With 1.28inch Round Touch LCD, Compact Size, Accelerometer And Gyroscope Sensor, Round Display, With CNC Metal Case

ESP32-S3-Touch-LCD-1.28-Bis a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Features:

1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
3. Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 1.28inch capacitive touch display, 240240 resolution, 65K color

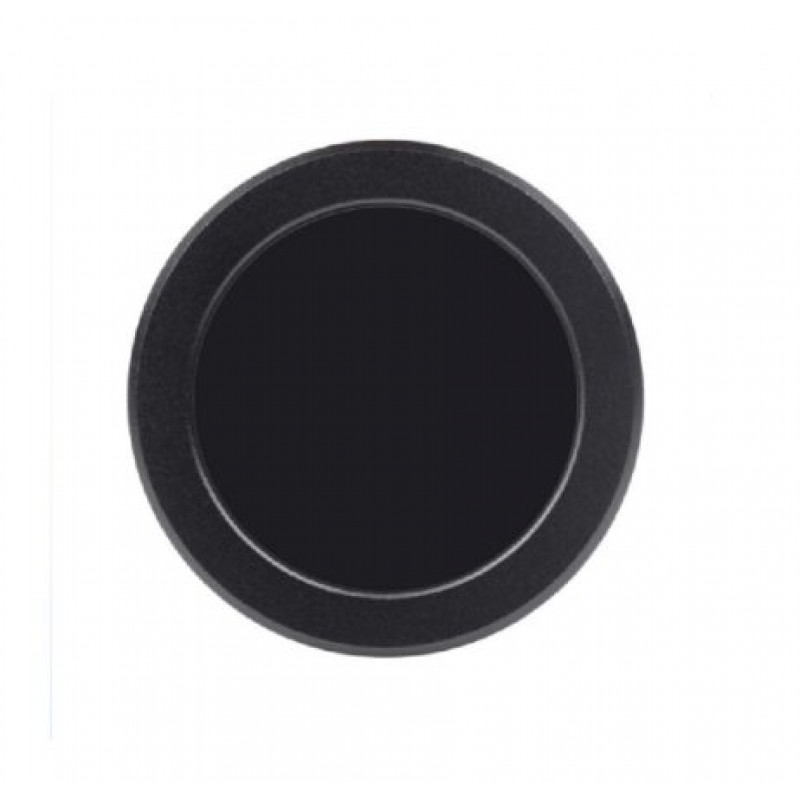

6. Adopts CNC metal case with Acrylic dull-polish bottom plate
7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
8. Onboard 3.7V MX1.25 lithium battery recharge/discharge header
9. Adapting 6 GPIO pins via SH1.0 connector
10. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
11. Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Specifications:

1. Processor: Xtensa 32-bit LX7 dual-core
2. Frequency: up to 240MHz
3. Wi-Fi: Supports 2.4GHz
4. SRAM: 512KB
5. ROM: 384KB
6. PSRAM: 2MB
7. Flash memory: 16MB
8. Connector: Type-C
9. Display: 1.28inch
10. Touch display: Capacitive
11. Resolution: 240240
12. 6 GPIO pins

Package Includes:

1 x ESP32-S3-Touch-LCD-1.28

1 x SH1.0 12PIN cable

1 x Screwdriver
