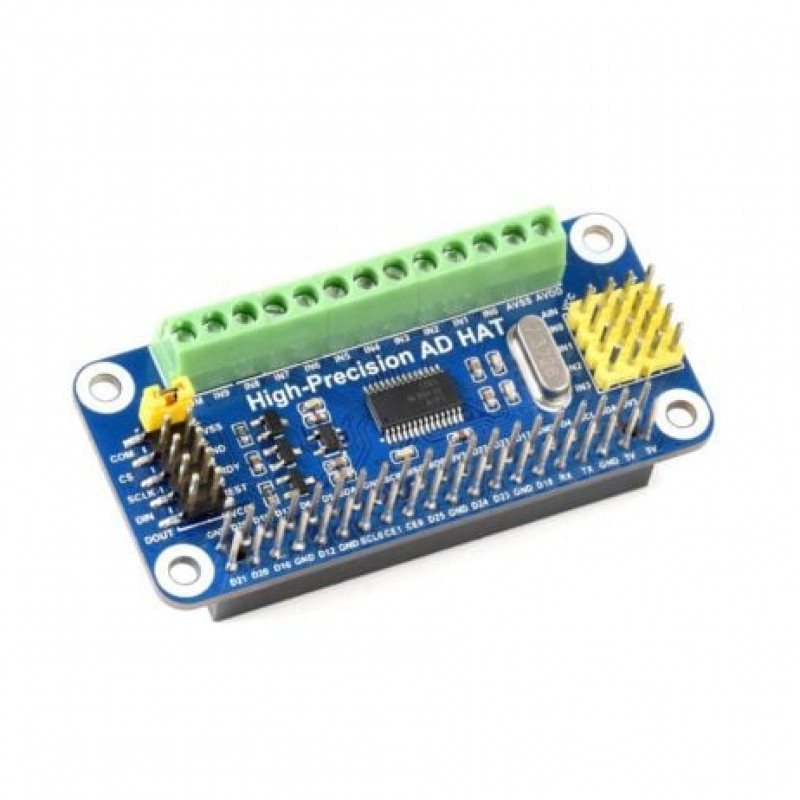

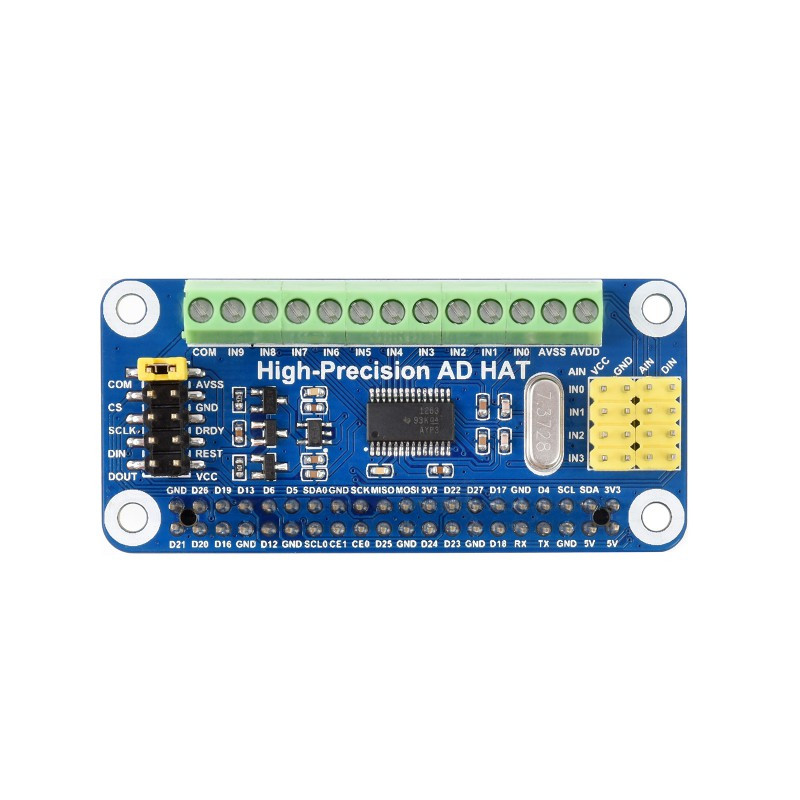

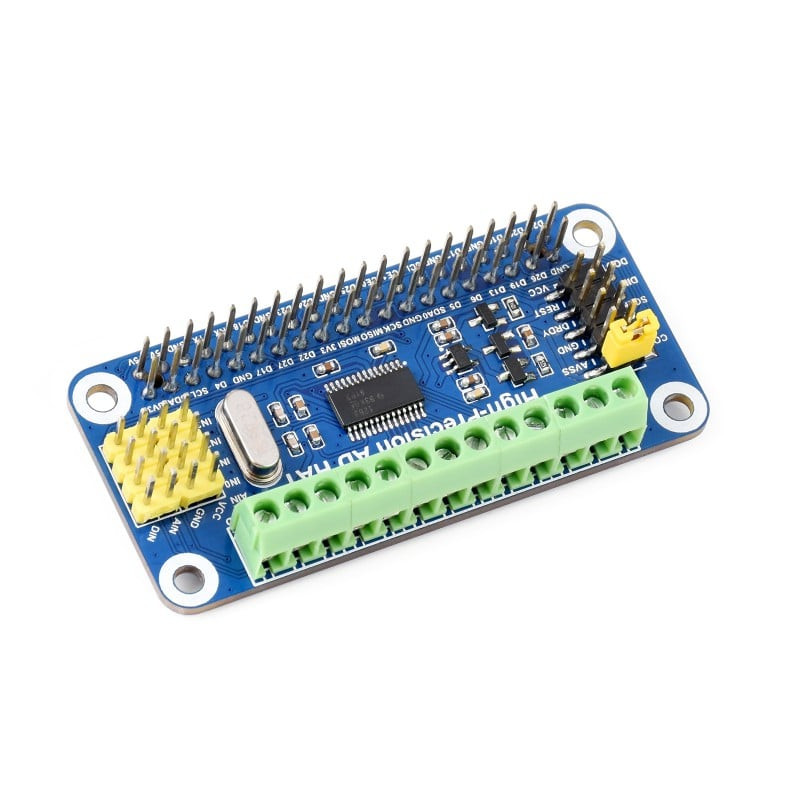

Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC. Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules .Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface .Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi .Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor.
Features:
- Adopts ADS1263 chip, low noise, low temperature drift
- 10-ch 32-bit high precision ADC (5-ch differential input)
- 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC
- IDAC, 2.5V internal reference voltage
- internal ADC test signal
Useful link:
For Software setup, please follow this tutorial.
Package Include:
1 X High-Precision AD HAT
1 X RPi screws pack (2PCS)
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6099.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC
- Product Code: EC-17739
- Availability: 25
-
Rs.5169.00
- (Excluding 18% GST)
