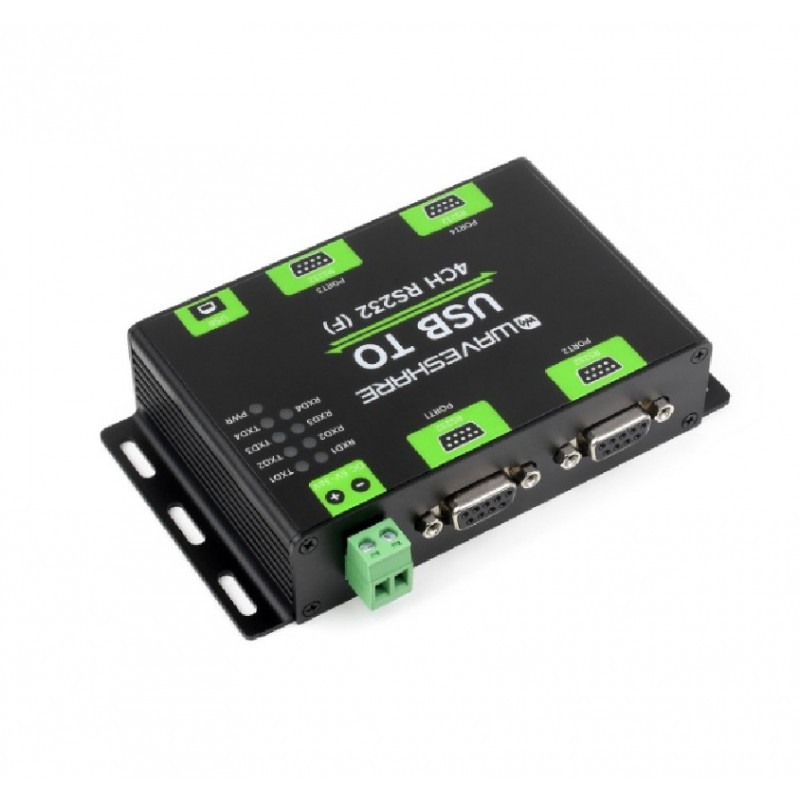

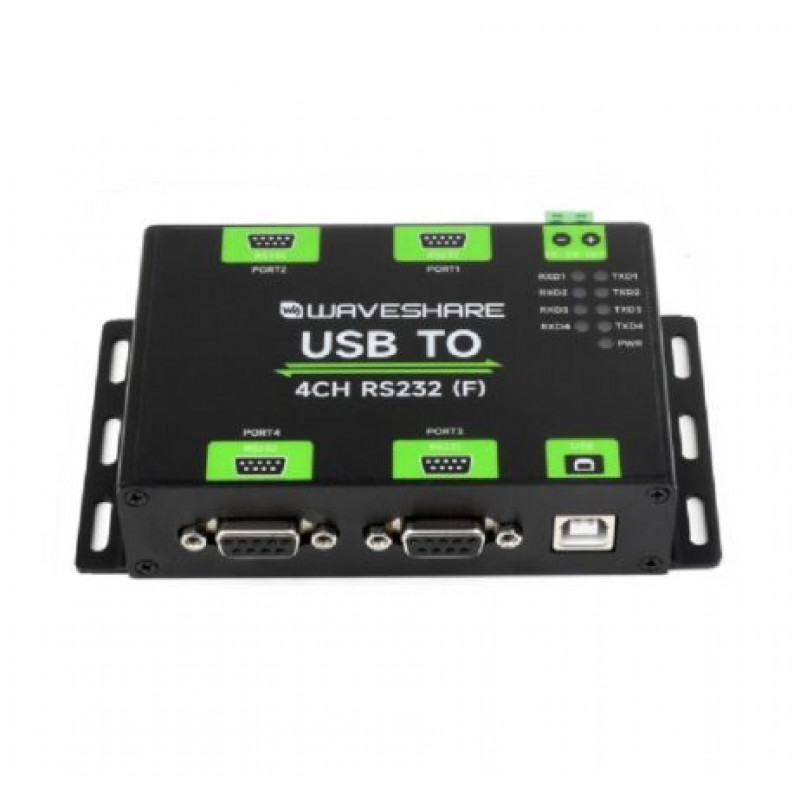

Industrial Isolated USB To 4-Ch RS232 Converter, USB To Serial Adapter, Original FT4232HL Chip, Mac / Linux / Android / Windows Multi-OS Compatible, Wall-Mount Support

Features:

1. Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
2. Supports USB to 4-ch isolated RS232, convenient for expanding multiple RS232 industrial serial devices
3. Onboard unibody power supply isolation, provides stable isolated voltage
4. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
5. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
6. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
7. Onboard power supply screw terminal, allows 5V~36V DC wide range input
8. 9 LEDs for indicating the power and transceiver status

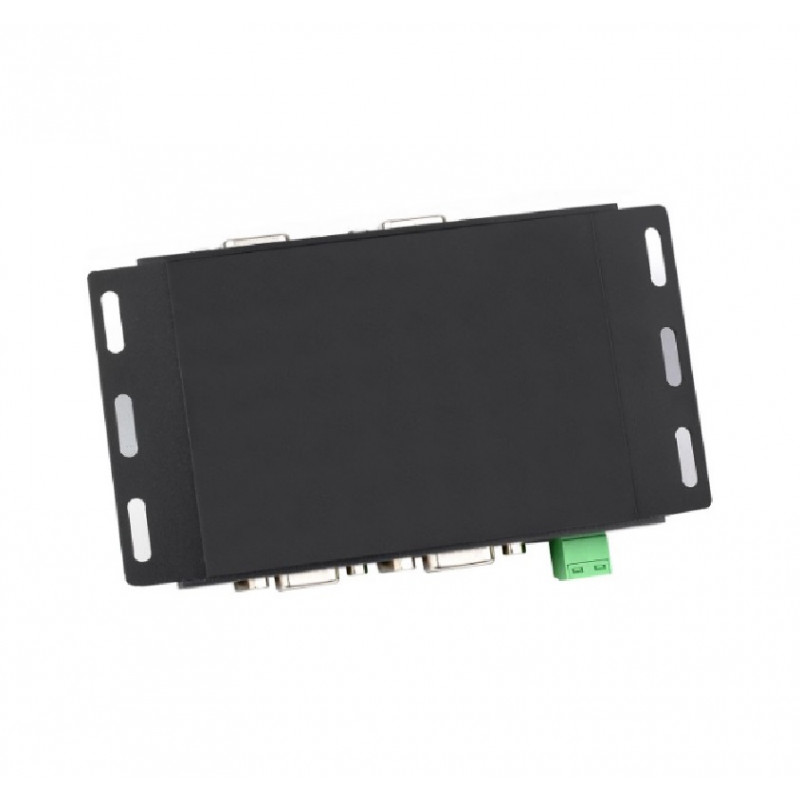

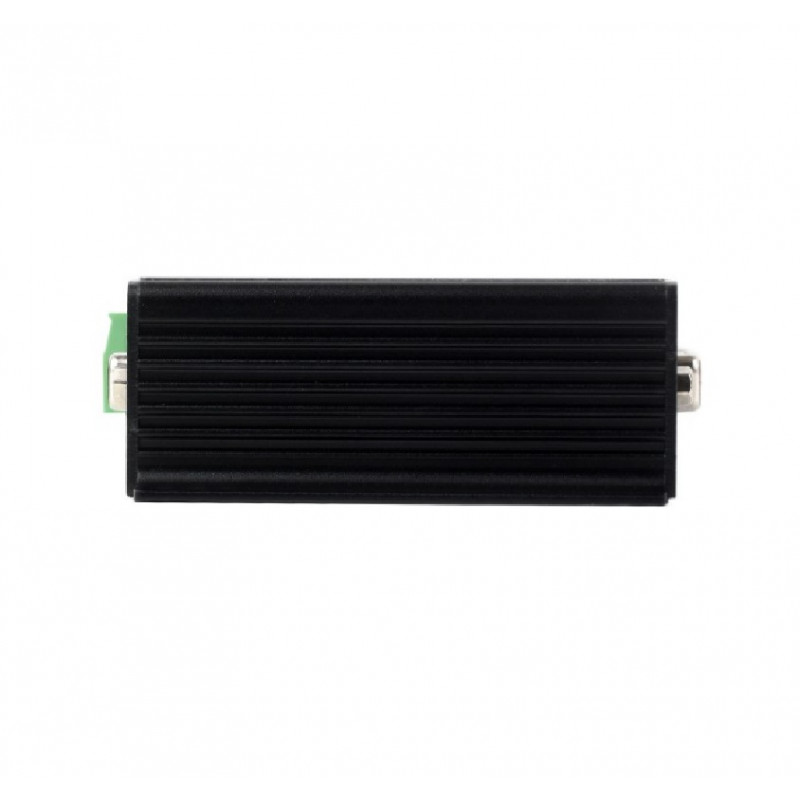

9. Aluminum alloy enclosure with sand blasting and anodic oxidation, solid and durable

Specifications:

1. Product Type: Industrial USB to RS232 isolated converter
2. Host port: USB
3. Device port: RS232
4. Baud rate: 300bps ~ 921600bps
5. Temperature range: -40 ~ 85
6. Humidity range: 5%RH~95%RH

USB:

1. Operating voltage: 5V
2. Connector: USB-B
3. Protection: 200mA self-recovery fuse, isolated output
4. Transmission distance: about 5m

POWER SUPPLY INTERFACE:

1. Power supply: 5~36V DC screw terminal
2. Protection: Anti-reverse

ISOLATED RS232:

1. Connector: DB9 male/female
2. Protection: TVS diode, surge protection & ESD protection, power isolation and signal isolation
3. Transmission mode: Point-to-point
4. Transmission distance: about 15m

INDICATORS:

1. PWR: Red power indicator, lights up when there is USB connection and voltage is detected
2. TXD1~4: Green TX indicator, blinking when the RS232 port is sending data
3. RXD1~4: Blue RX indicator, blinking when the RS232 port is receiving data

OPERATING SYSTEM:

MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

Package Includes:

1 x OPTIONS USB TO 4CH RS232

1 x USB type-A to type-B cable ~1.2m

1 x Power adapter
