TheRS232 RS485 CAN Boardis an industrial isolated interface expansion board designed for Raspberry Pi 4B / Raspberry Pi 5, provides a variety of industrial communication interfaces: 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, each with electrical isolation. Onboard lightningproof, anti-electrostatic protection, etc. for more secure and reliable communication.

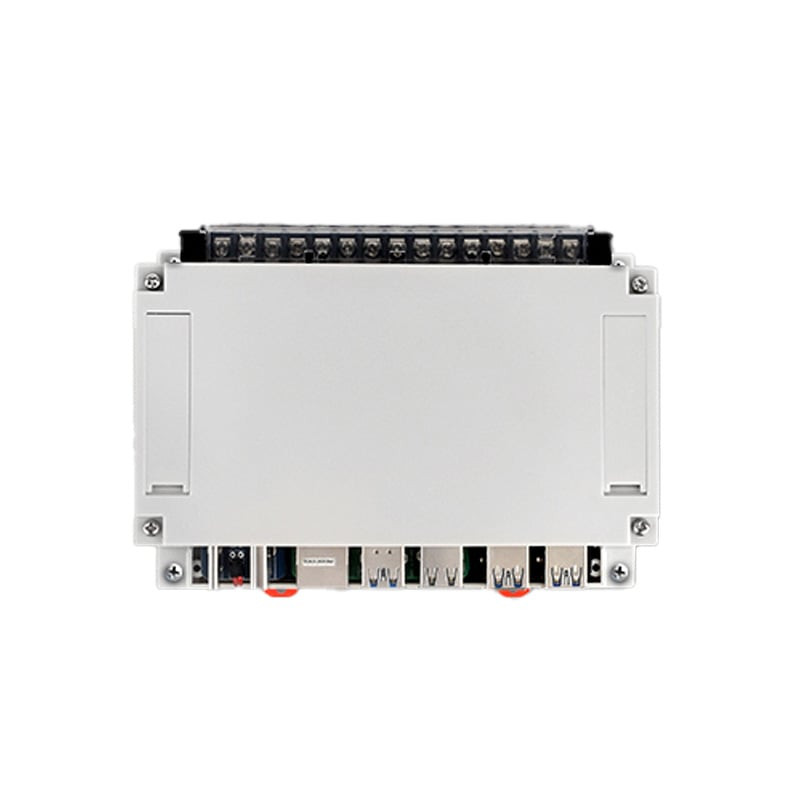

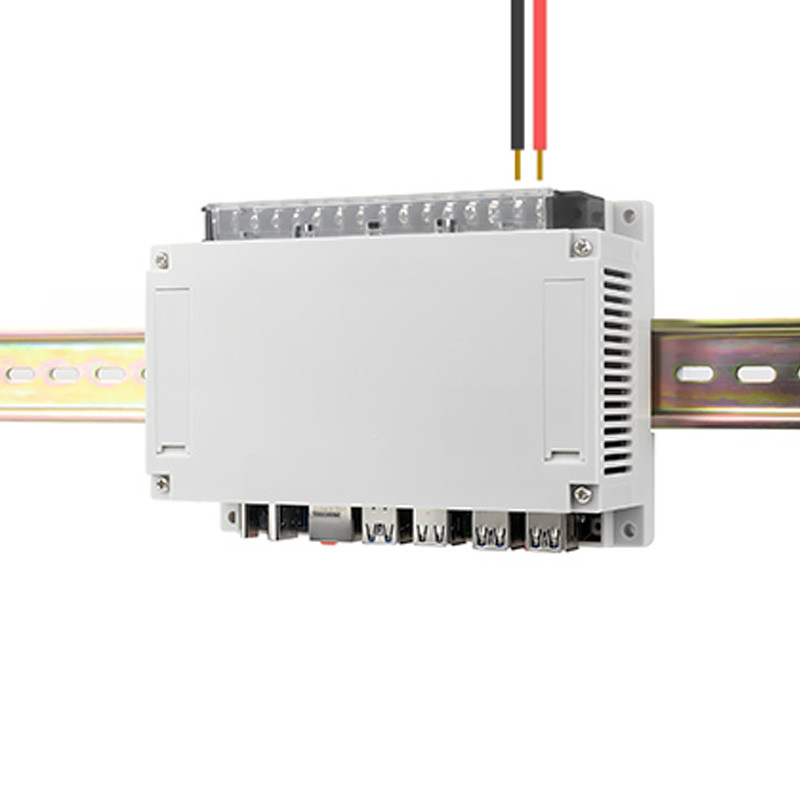

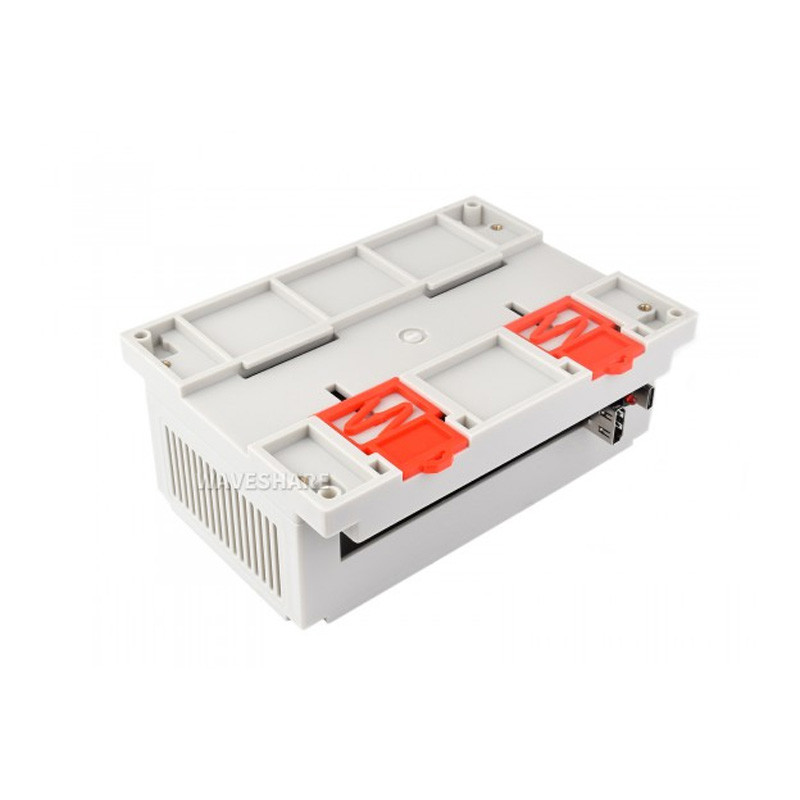

Comes with industrial rail-mount enclosure for easy integration in industrial control applications. Provides sufficient internal space for users to stack other HATs or expansion boards, and reserved installation space of PCIe adapter board for Raspberry Pi 5, which is more convenient for further expansion.
Features:
- GPIO Compatibility: Based on Raspberry Pi 40-pin GPIO header, suitable for Raspberry Pi 4B and Raspberry Pi 5.
- RS485 Expansion: Utilizes SC16IS752 and SP485 for 2x RS485 interfaces.
- CAN Interface: Employs MCP2515 and SN65HVD230 for 1x CAN interface expansion.
- CAN FD Interface: Uses MCP2518FD and MCP2562FD to expand to 1x CAN FD interface.
- RS232 Expansion: Integrates Raspberry UART and SP3232EEN for 1x RS232 interface.
- Communication Interfaces: Expands SPI and UART capabilities with multiple isolated interfaces.
- Dual RS485 Support: Offers 2x isolated RS485 interfaces with baud rates up to 921600 bps.
Package includes:
- RS232 RS485 CAN Board (with ABS plastic case)x1
- 40PIN cable x1
- Pi5 Connector Adapter (B) x1
- Screws pack x1
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi, Expands 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, Wall-mount & Rail-mount Support
- Product Code: EC-29501
- Availability: 1
-
Rs.4292.00
- (Excluding 18% GST)
