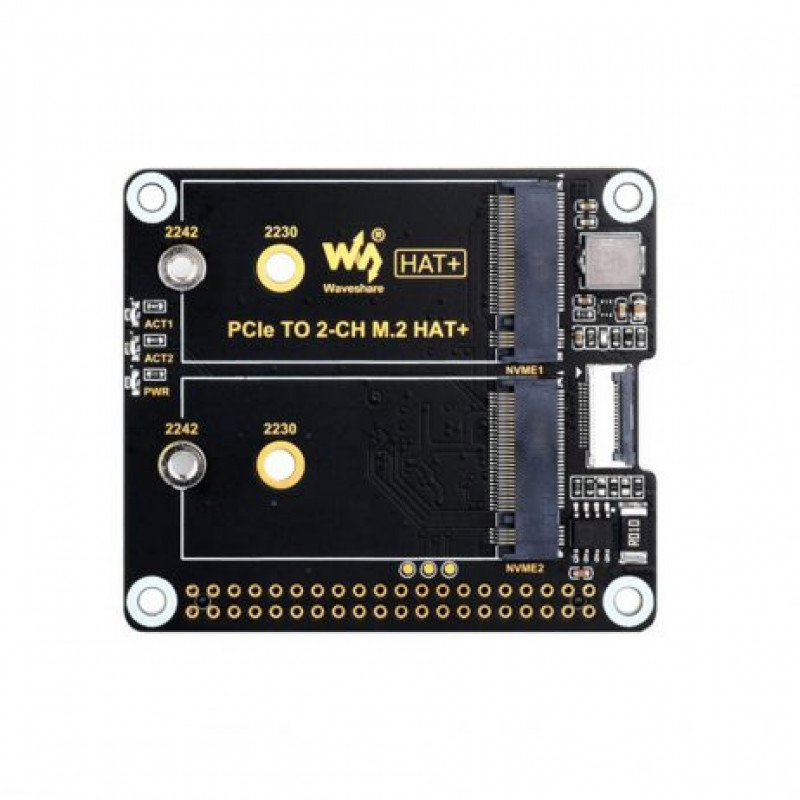

The PCIe TO 2-CH M.2 HAT+ for Raspberry Pi 5 supports high-speed NVMe and M.2 solid-state drives in 2230/2242 sizes, only in Gen2 mode. It features onboard indicator lights, a power monitoring chip, and a HAT+ design with EEPROM. Designed for efficiency, it does not support booting from SSD on PI5.
Note: This HAT does not support NVME startup by default.
Features:
- Support NVMe protocol and M.2 solid state drive protocol, high-speed read/write, with high work efficiency.
- PCI-E1 only supports Gen2 mode.
- Only supports PI5B.
- Compatible with M.2 solid state drive of 2230/2242 sizes.
- Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write.
- HAT+ design with onboard EEPROM chip.
- Onboard power monitoring chip, for real-time monitoring of the working status of the solid state drive.
- Do not support NVME SSD booting.

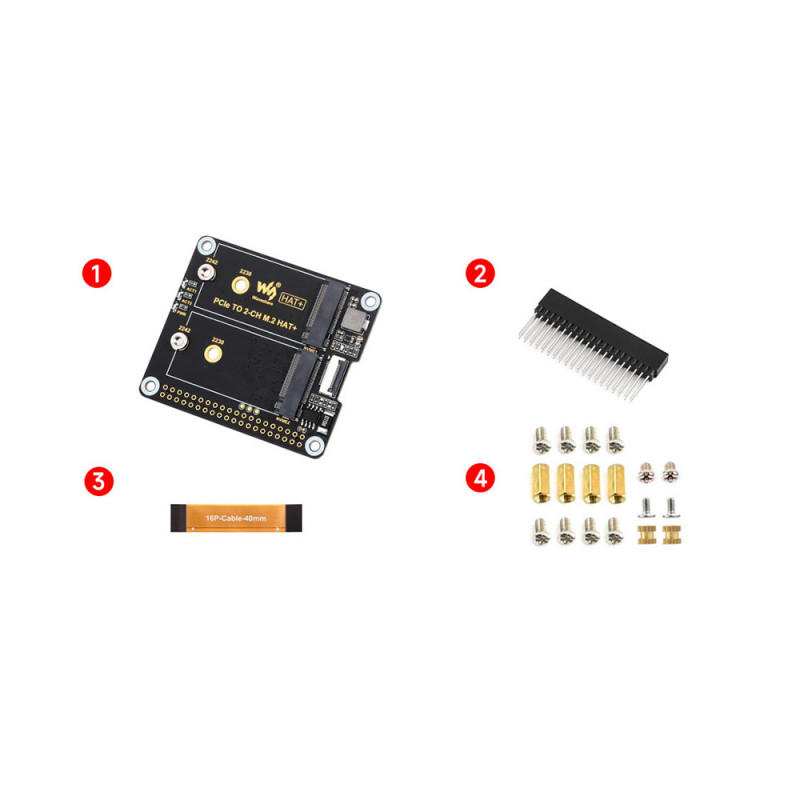

Package Includes:
1 x PCIe TO M.2 HAT+
1 x (220) Pin header
1 x 16P-Cable-40mm
1 x Screws pack
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare PCIe To 2-ch M.2 Adapter for Raspberry Pi 5, Compatible with 2230/2242 Size NVMe Solid State Drive, Raspberry Pi 5 M.2 HAT
- Product Code: EC-26070
- Availability: 1
-
Rs.1460.00
- (Excluding 18% GST)
