PCIe TO 4-Ch SATA 3.0 Expander, 6Gpbs High-Speed SATA Interface, Supports CM4 .Onboard SATA host controller (AHCI) with upstream PCle Gen3 x1 and downstream four SATA Gen3 ports. Its a low latency, low cost and low power AHCI controller. With four SATA ports and cascaded port multipliers, it can enable users to build up various high-speed IO systems, including server, high-capacity system storage or surveillance platforms
Specifications and Features:
- Support single-channel PCI Express
- L0s/L1/L23/L3 four power-saving states are supported
- Support L1 sub-state deep power saving mode
- Support SRIS, AER, LTR
- Support SATA LED
- Support full-speed command queue (NCQ) and AHCI SPEC 1.4
- Four SATA3.0 (6Gbps) ports
- Supports the exchange of port multiplier commands based on
- SATA partial/sleep power management status is supported.
- Direct access to PC motherboard is not supported.
- 5V and 12V SATA hard drives (2.5-inch and 3.5-inch hard drives) are supported.
Package Includes:
1 X PCIe-TO-SATA-4P
4 X SATA Adapter Cable
1 X Screws pack
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2854.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

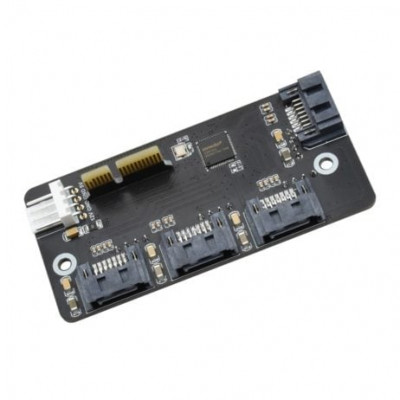

Waveshare PCIe TO 4-Ch SATA 3.0 Expander 6Gpbs High-speed SATA Interface
- Product Code: EC-17872
- Availability: 5
-
Rs.2419.00
- (Excluding 18% GST)
