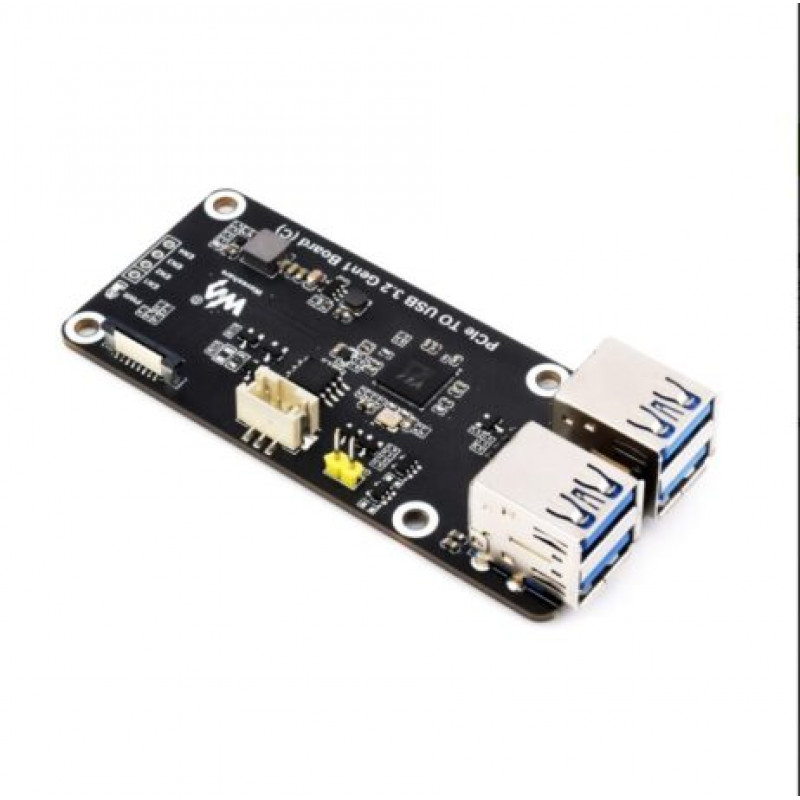

The PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5 is a high-speed expansion card designed specifically for the Raspberry Pi 5, enabling the addition of multiple USB ports for enhanced connectivity. PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5 supports driver-free operation, making it easy to set up and use for various peripherals.
Features:
- High-Speed Connectivity: Supports USB 3.2 Gen1 with up to 5Gbps transmission speed.
- Plug and Play: No drivers needed; easy installation.
- Multi-Port Expansion: Adds four USB 3.2 Gen1 ports, with potential to enable up to eight.
- Independent Power Control: Each USB port can be powered ON/OFF via commands.
- Flexible Power Supply: Supports powering through a 2PIN header or 3PIN connector.
- Acrylic Mounting Plate: Side-mounting design saves space and ensures stability.
Specifications:
- Interface Standard: USB 3.2 Gen1
- Communication Rate: 5Gbps per USB port, total 5Gbps across all ports
- USB Output: 5V @ Imax: 2A via USB-A connector
- Power Supply: 5V DC power supply header/connector
- Operating Temperature: 0 to 75
Package include:
1 x PCIe TO USB 3.2 Gen1 Board (C)
1 x Transparent acrylic mounting plate
1 x 16PIN PCIe cable
1 x PH2.0 3PIN cable
1 x Standoff pack
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter
- Product Code: EC-30012
- Availability: Out Of Stock
-
Rs.1223.00
- (Excluding 18% GST)
