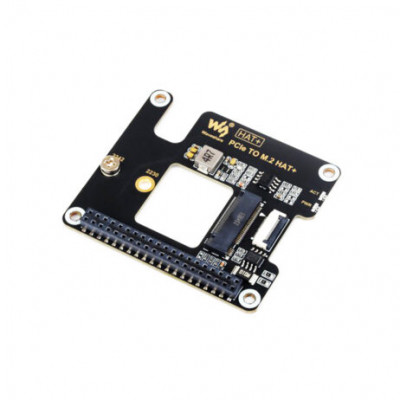

The PCIe to M.2 M key adapter board is specifically crafted for Raspberry Pi 5, enabling compatibility with NVMe protocol M.2 solid-state drives in 2230/2242 sizes. Supporting PCIe 1 Gen2 or Gen3 modes, it ensures high-speed data transfer. With onboard indicator lights and an EEPROM chip, it offers enhanced functionality and clear operating status. Additionally, it includes a power monitoring chip and airflow vent for optimal SSD temperature control.

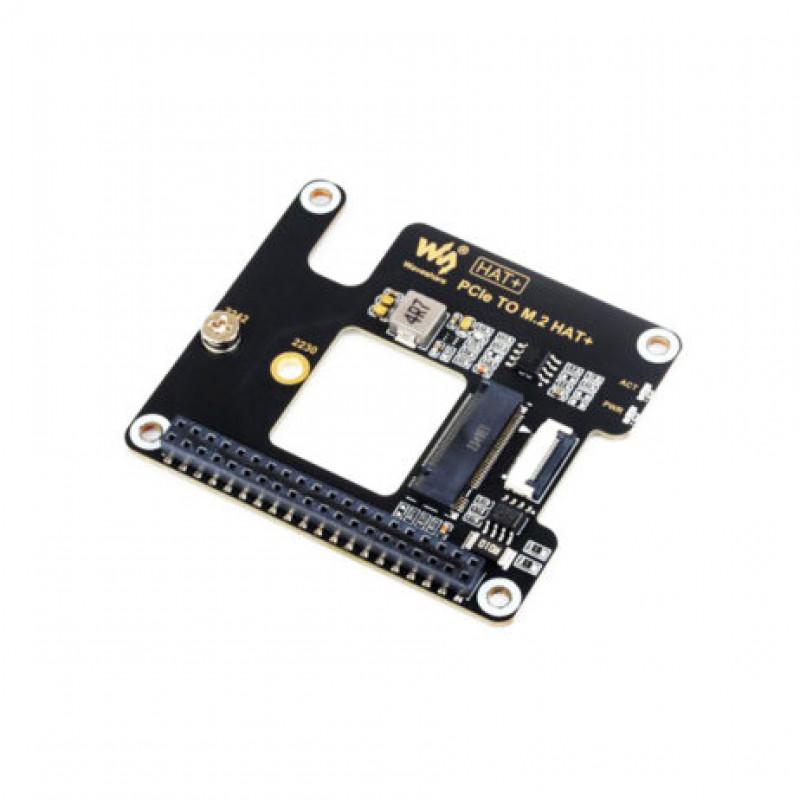

Image for reference only.

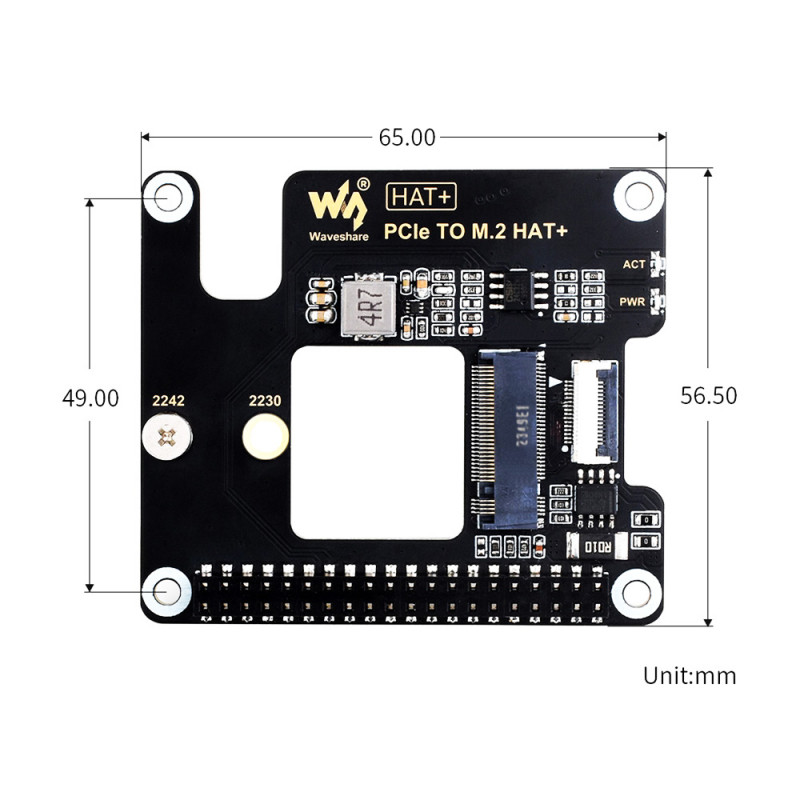

Image for reference only.
Features:
- Support NVMe protocol M.2 solid state drive, high-speed read/write, with high work efficiency.
- PCI-E1 Gen2 or Gen3 mode.
- Only supports PI5B.
- Compatible with M.2 solid state drive of 2230/2242 sizes.
- Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during
- read/write, making the operating status clear at a glance.
- HAT+ design, with on-board EEPROM chip.
- Onboard power monitoring chip, for real-time monitoring of the working status of the solid-state drive.
- Reserved airflow vent for PI5 fans, increasing airflow, and reducing solid-state temperatures.
Package Includes:
1 x Waveshare PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare PCIe To M.2 Adapter for Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, HAT + Standard
- Product Code: EC-28171
- Availability: 10
-
Rs.701.00
- (Excluding 18% GST)
