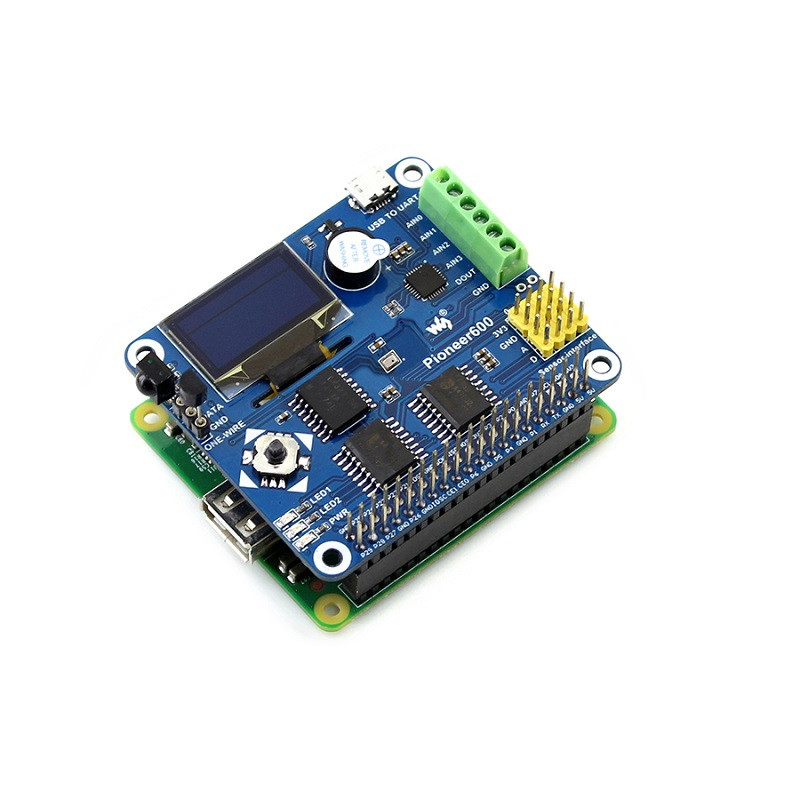

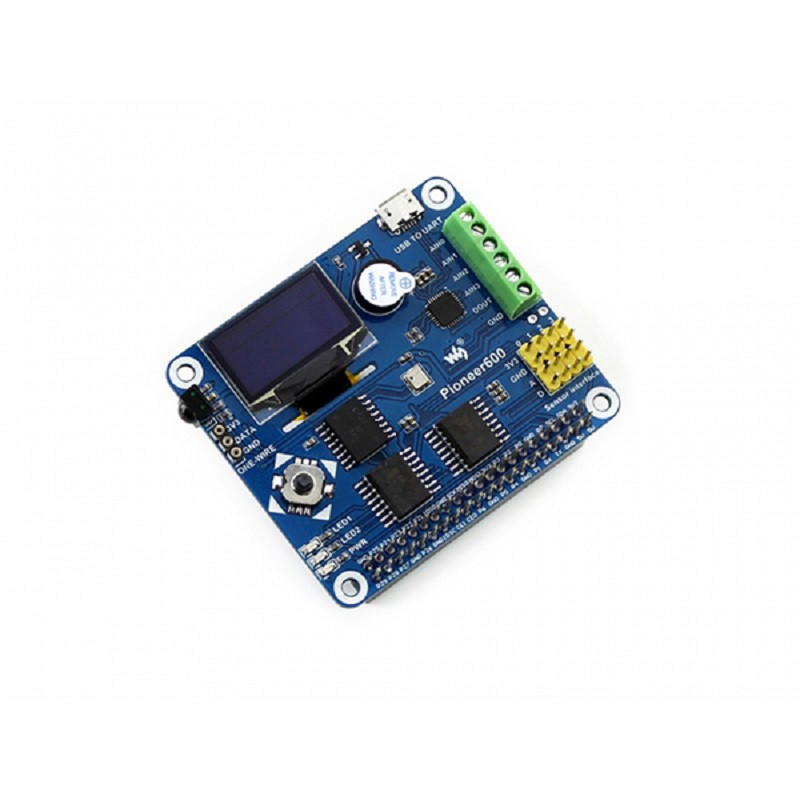

Pioneer600 Raspberry Pi Expansion Board includes miscellaneous components, all on a single piece of hardware. It supports Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 2 Model B, and Raspberry Pi 3 Model B. Pioneer600 offers a standard I/O interface over various components and offers more GPIO possibility with the PCF8591.
With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor.
Whats onboard Pioneer600:
- Raspberry Pi GPIO interface:for connecting Raspberry Pi
- USB TO UART: control the Pi through a serial terminal
- AD/DA IO interface:screw terminal
- 1-WIRE interface:for connecting 1-WIRE devices like DS18B20
- Sensor interface:for connecting various sensors
- 0.96inch OLED:SSD1306 driver, 12864 resolution, SPI interface
- Buzzer
- CP2102:USB TO UART converter
- PCF8591 :8-bit AD/DA converter, I2C interface
- BMP180:pressure sensor, I2C interface
- PCF8574:I/O expansion chip, I2C interface
- DS3231:high precision RTC chip, I2C interface
- Power indicator
- User LED
- Joystick
- LFN0038K IR receiver

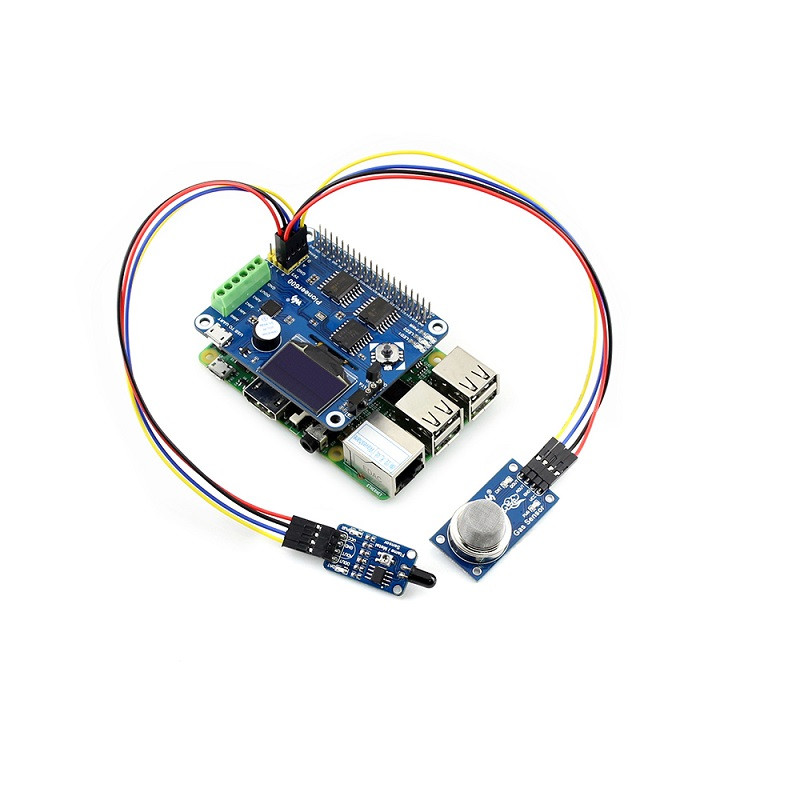

Note: the Raspberry Pi and sensors shown in the Images are NOT included.
Features:
- Supports Raspberry Pi A+ / B+ / 2B / 3B
- Dual LED, joystick, buzzer, the basic components
- CP2102 to control the Pi through a serial terminal
- 0.96inch OLED, a big world in the little screen

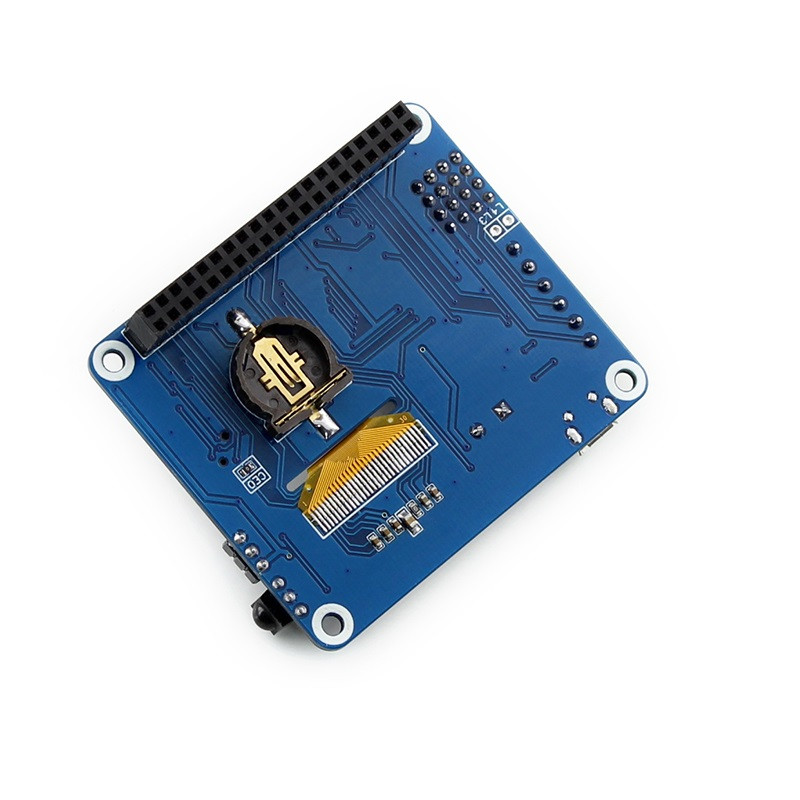

- DS3231, high precision RTC, backup battery holder is also available
- PCF8591 AD/DA, 8-bit resolution, screw terminal IO interface
- More GPIO possibility with PCF8574
- LFN0038K IR receiver, remote control your Raspberry Pi
- BMP180 to measuring air pressure and temperature
- One wire interface for connecting 1-WIRE devices, DS18B20 is included
- Sensor Interface for connecting various sensors

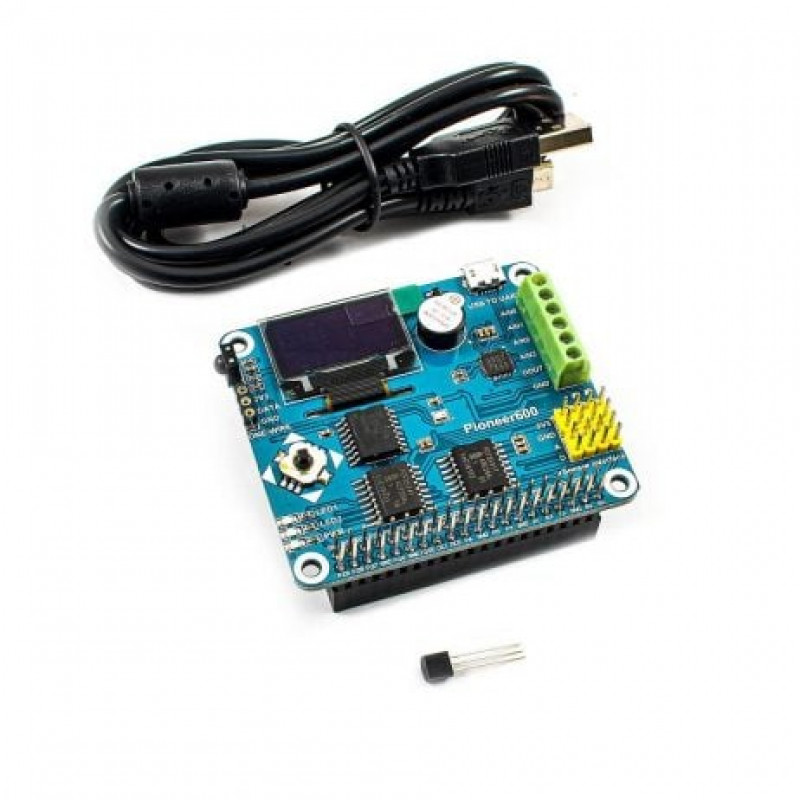

Package Includes:
1 x Pioneer600 Board
1 x DS18B20
1 x USB Type-A Plug to Micro B Plug Cable
1 x RPi Screws Set
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2406.02 (Inclusive of all Taxes) |
