The R7FA4 Plus development platform provides users with an economical, flexible, and convenient way to realize more creative ideas. On the hardware, it features Renesas Electronics powerful 32-bit microcontroller R7FA4M1AB3CFM, which has expanded memory, peripherals, and faster clocks, enabling it to easily handle complex projects.

Connecting With Sorts Of Sensors:

for reference only, please refer to the Package Content for detailed part list.

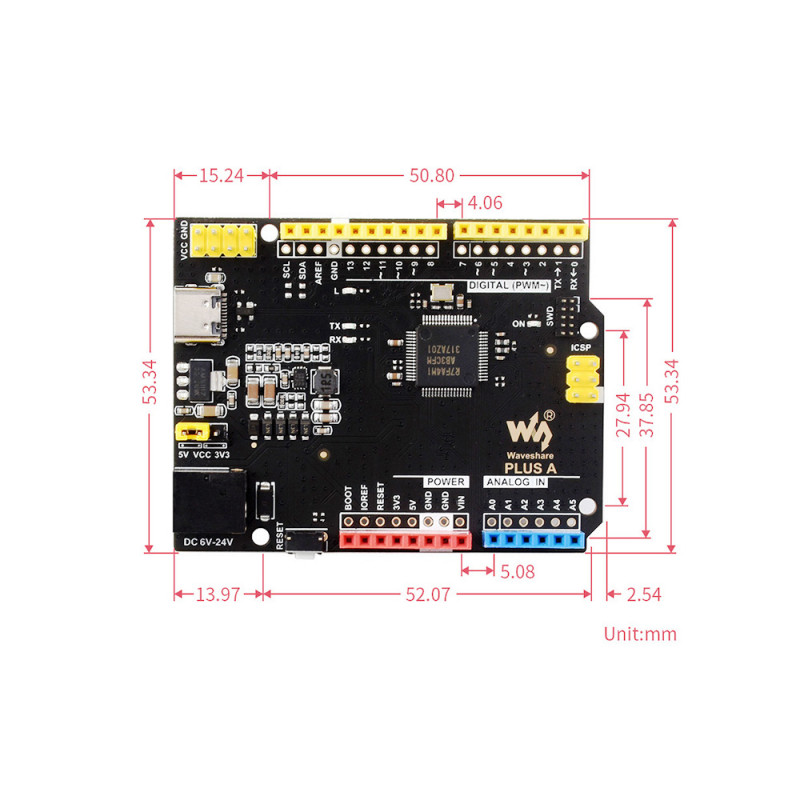

Pinout Definition:

Whats On Board:

Features:

1. Based on R7FA4M1AB3CFM, and is compatible with Arduino UNO R4 Minima.
2. Utilizes Renesas Electronics RA4M1 (Arm Cortex-M4) microcontroller, with a main frequency of 48MHz.
3. Equipped with 256 kB Flash and 32 kB RAM, the expanded memory can easily handle complex projects.
4. The R7FA4 Plus development board adds a 12-bit DAC, CAN bus, and operational amplifiers, providing expanded functionality and flexibility for designs.
5. Onboard 5V/3.3V headers for easy voltage switching, allowing the use of more expansion modules.
6. Flexible power options, supporting USB-C power supply or external input power VIN (6V<=VIN<=24V).
7. Onboard power indicator LED (PWR), USER LED, serial port receive indicator LED (RX), and transmit indicator LED (TX), making it easy to monitor the working status of the development board.
8. Onboard ICSP interface, can be used as an SPI interface.
   Supports user soldering of corresponding interface insertion into the experimental board.

Package Includes:

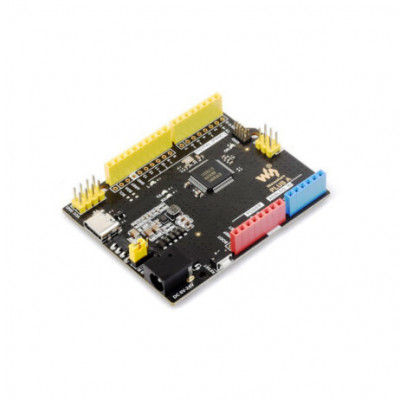

1 x Waveshare R7FA4 PLUS A Development Board, Based on R7FA4M1AB3CFM, Compatible with Arduino UNO R4 Minima

1 x USB Type-A to Type-C cable
