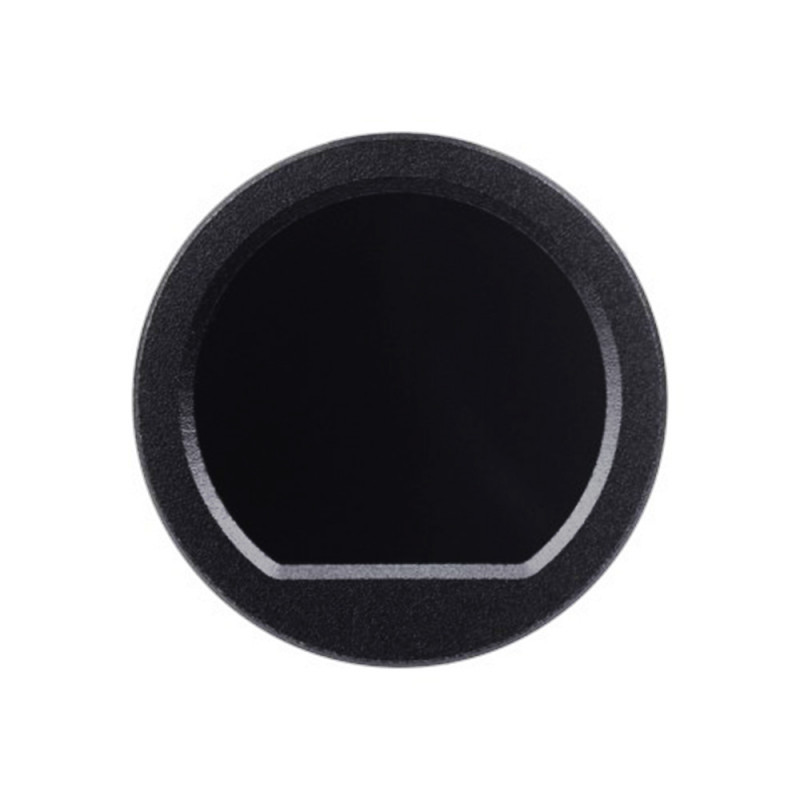

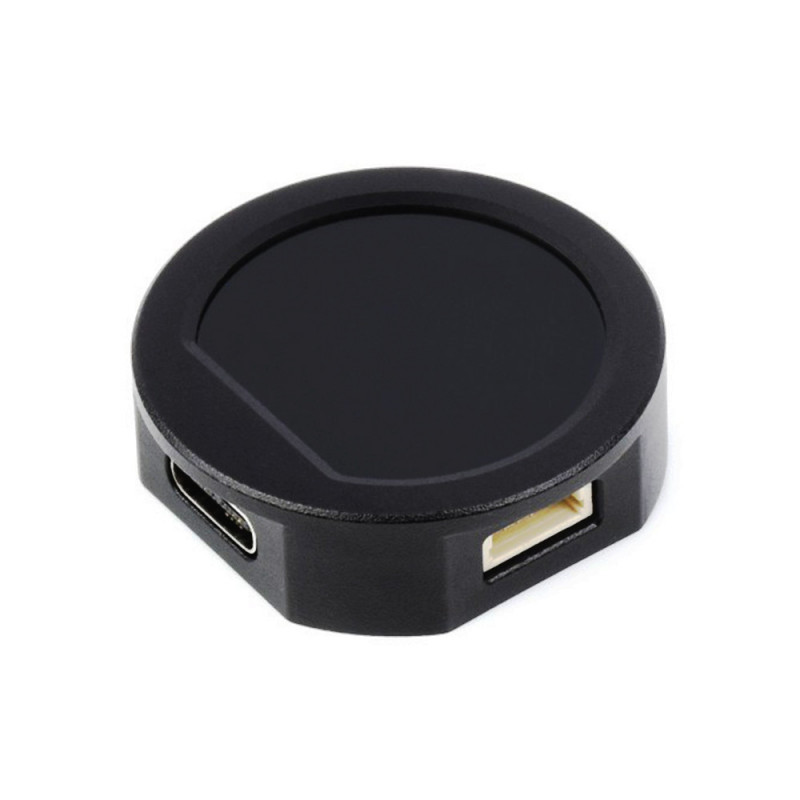

RP2040-LCD-0.99-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 0.99inch LCD round display (with flat bottom), 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, adapting 4 GPIO pins through SH1.0 6PIN connector, which makes it easy for you to develop and integrate it into products quickly.

Features:

1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
3. 264KB of SRAM, and 2MB of onboard Flash memory.
4. Type-C connector, keeps it up to date, easier to use.

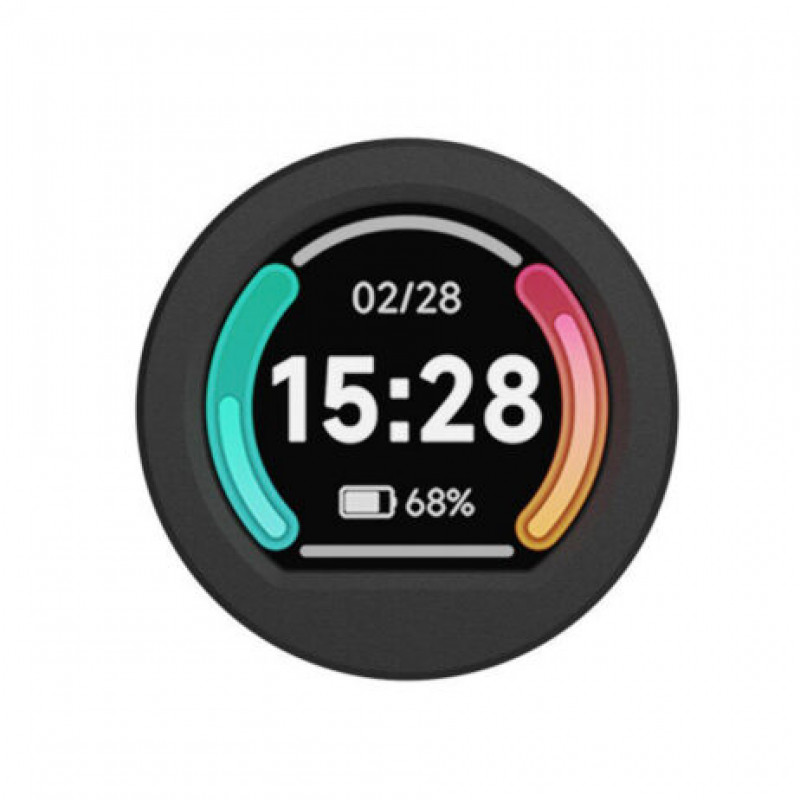

5. Onboard 0.99inch 128115 pixels 65K colorful IPS LCD (with flat bottom) for clear color pictures.
6. 4 GPIO pins are adapted through the SH1.0 6PIN connector.
7. Adopts CNC metal case with Acrylic dull-polish bottom plate.
8. USB 1.1 with device and host support.
9. Low-power sleep and dormant modes.
10. Drag-and-drop programming using mass storage over USB.
11. 2 I2C, 4 12-bit ADC.
12. Accurate clock and timer on-chip.
13. Temperature sensor.
14. Accelerated floating-point libraries on-chip.
15. 8 Programmable I/O (PIO) state machines for custom peripheral support.
16. Accelerometer And Gyroscope Sensor.

Package Includes:

1 x Waveshare RP2040 MCU Board, With 0.99inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
