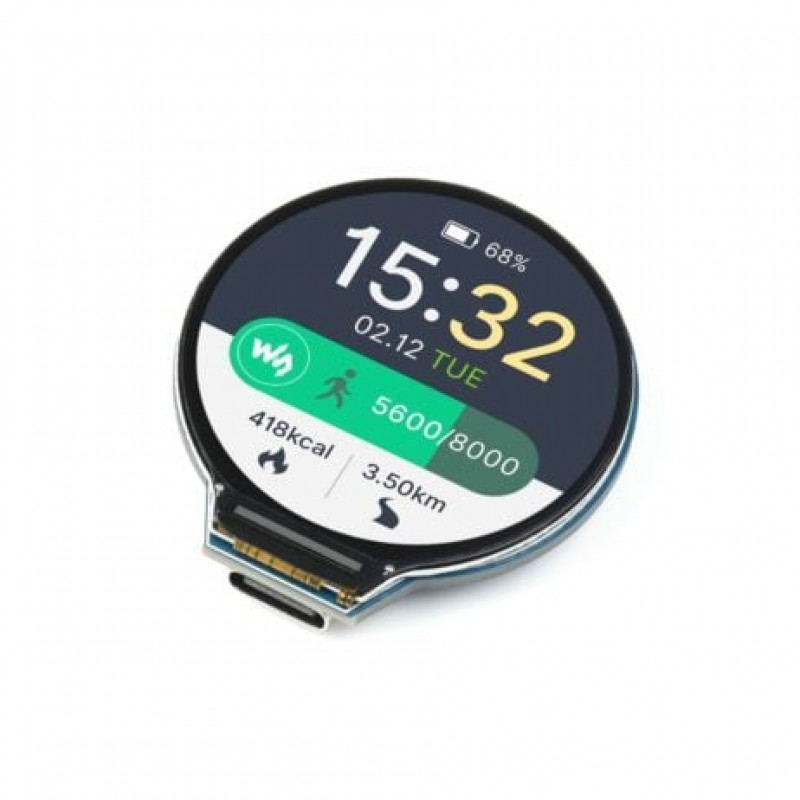

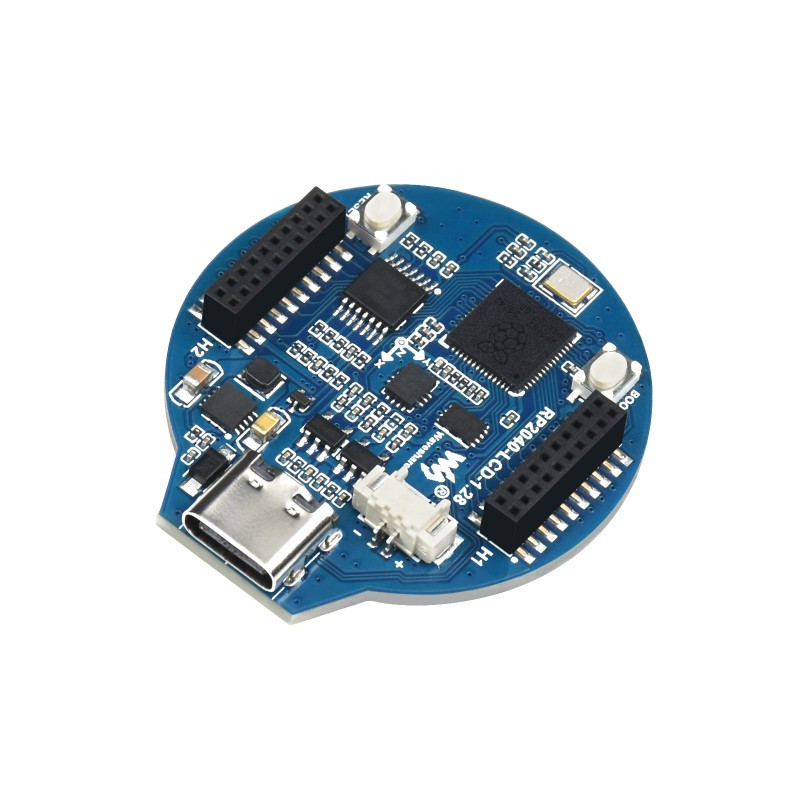

Waveshare RP2040 MCU Board With 1.28inch Round LCD accelerometer and gyroscope Sensor. RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Features:-
- RP2040 MCU chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of onboard Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28-inch 240 x 240 resolution, 65K RGB IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
Specifications:-
- Controller: GC9A01A
- Resolution: 240 (H) RGB x 240(V)
- Communication interface: SPI
- Display Size: 32.4mm
- Display Panel: IPS
- Pixel Size: 0.135 (H) x 0.135 (V) mm
- Sensor: QMI8658C
- Accelerometer Resolution: 16 bits
- Measurement Range (optional): 2, 4, 8, 16g
- Gyroscope Resolution: 16 bits
- Measurement Range (optional): 16, 32, 64, 128, 256, 512, 1024, 2048/sec
Package Includes:-
1 x RP2040 MCU Board, With 1.28inch Round LCD
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1884.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor
- Product Code: EC-17585
- Availability: Out Of Stock
-
Rs.1235.00
- (Excluding 18% GST)
