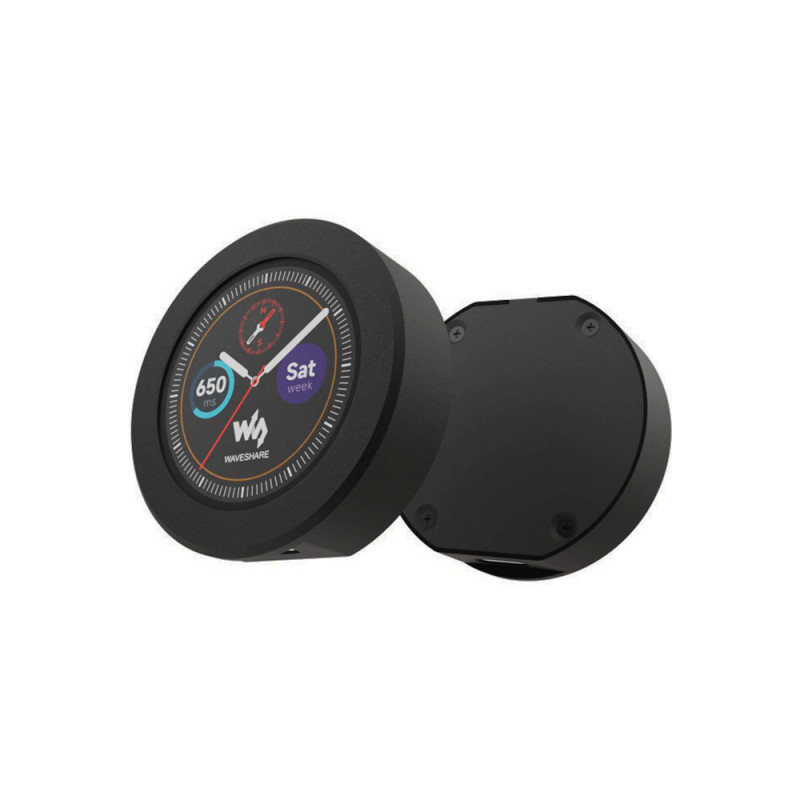

RP2040-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with an onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly
Features:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
- 264KB of SRAM, and 4MB of onboard Flash memory.
- Type-C connector, keeps it up to date, easier to use.

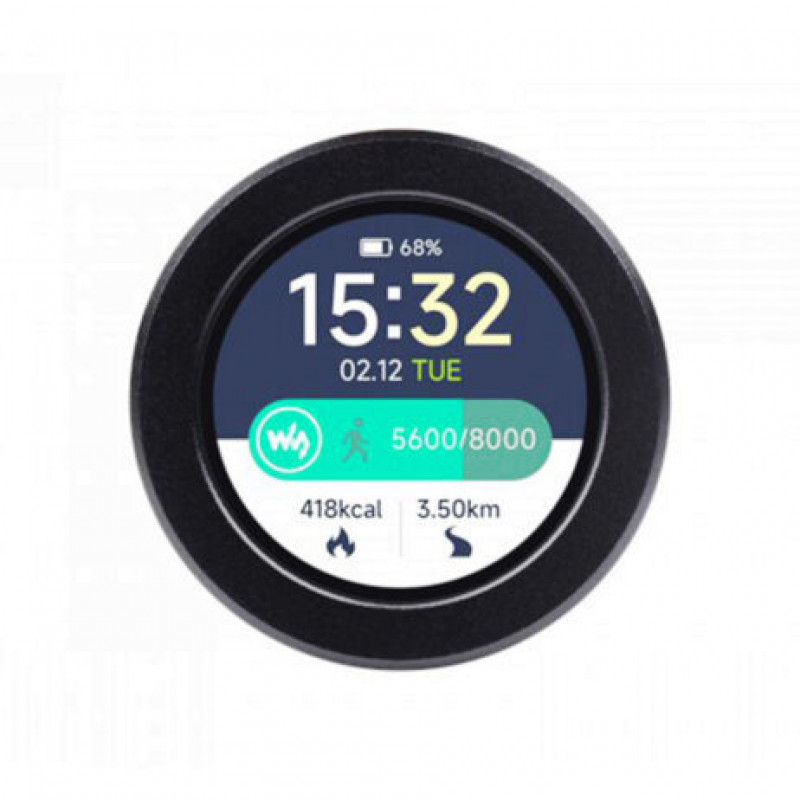

- Onboard 1.28inch capacitive touch display, 240240 resolution, 65K color.
- Lithium battery recharge/discharge header, suitable for mobile devices.
- USB 1.1 with device and host support.
- Low-power sleep and dormant modes.
- Drag-and-drop programming using mass storage over USB.
- Accurate clock and timer on-chip.
- Temperature sensor.
- 6 GPIO pin via SH1.0 connector.
- Accelerometer And Gyroscope Sensor
- With CNC Metal Case
Package Includes:
1 x Waveshare RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare RP2040 Microcontroller Development Board, with 1.28inch Round Touch LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
- Product Code: EC-28157
- Availability: 2
-
Rs.2463.00
- (Excluding 18% GST)
