Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-Core Processor, 264KB SRAM And 16MB Onboard Flash Memory, Compatible With Raspberry Pi 40PIN GPIO Header

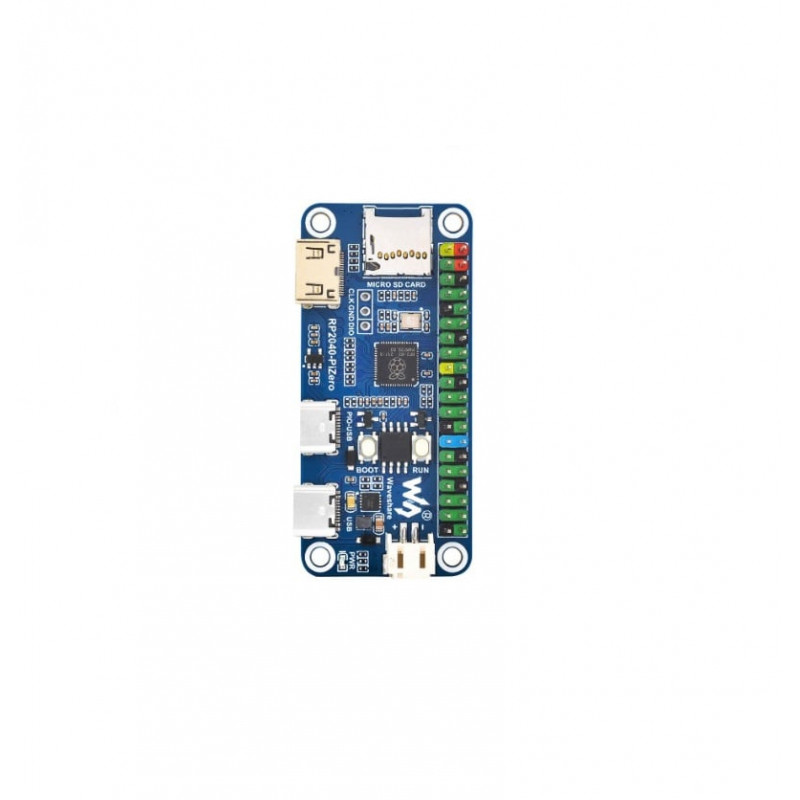

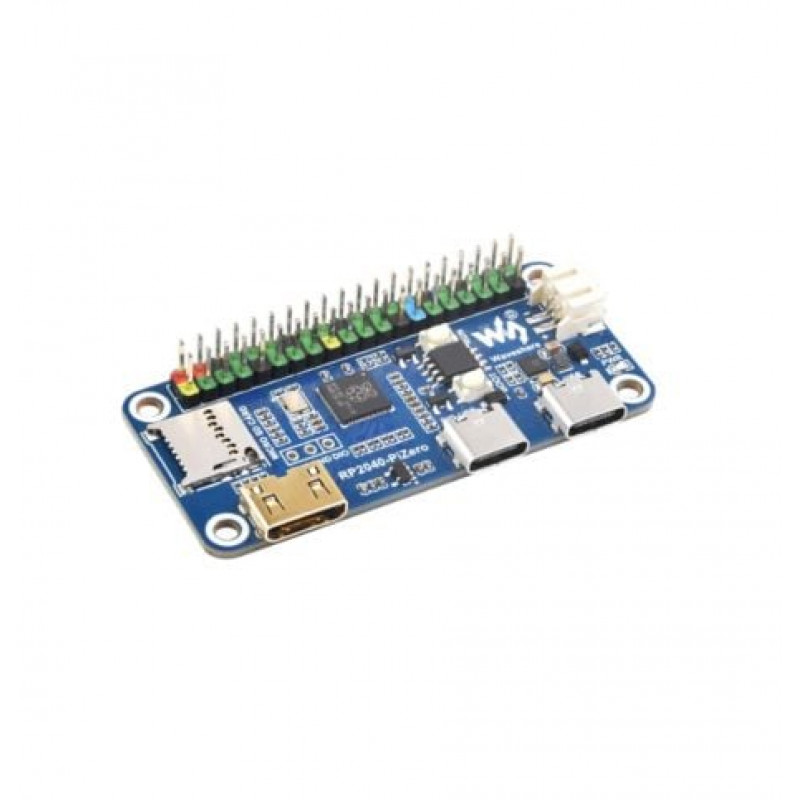

RP2040-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, with an onboard DVI interface, TF card slot, and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into the products.

Features:

1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 16MB of onboard Flash memory
4. The onboard DVI interface can drive most HDMI screens (DVI compatibility required)
5. Supports use as a USB host or slave via onboard PIO-USB port
6. Onboard TF card slot for reading and writing TF card
7. Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
8. USB 1.1 with device and host support
9. Drag-and-drop programming using mass storage over USB
10. Low-power sleep and dormant modes
11. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
12. Accurate clock and timer on-chip
13. Temperature sensor
14. Accelerated floating-point libraries on-chip
15. 8 Programmable I/O (PIO) state machines for custom peripheral support

Package Includes:

1 x Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-core Processor, 264KB SRAM, And 16MB Onboard Flash Memory
