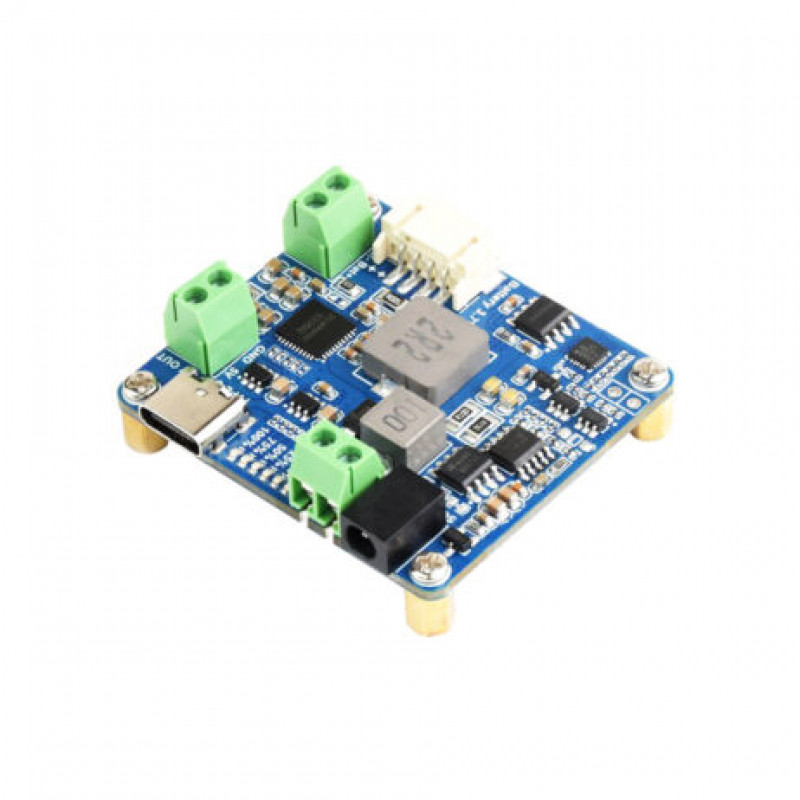

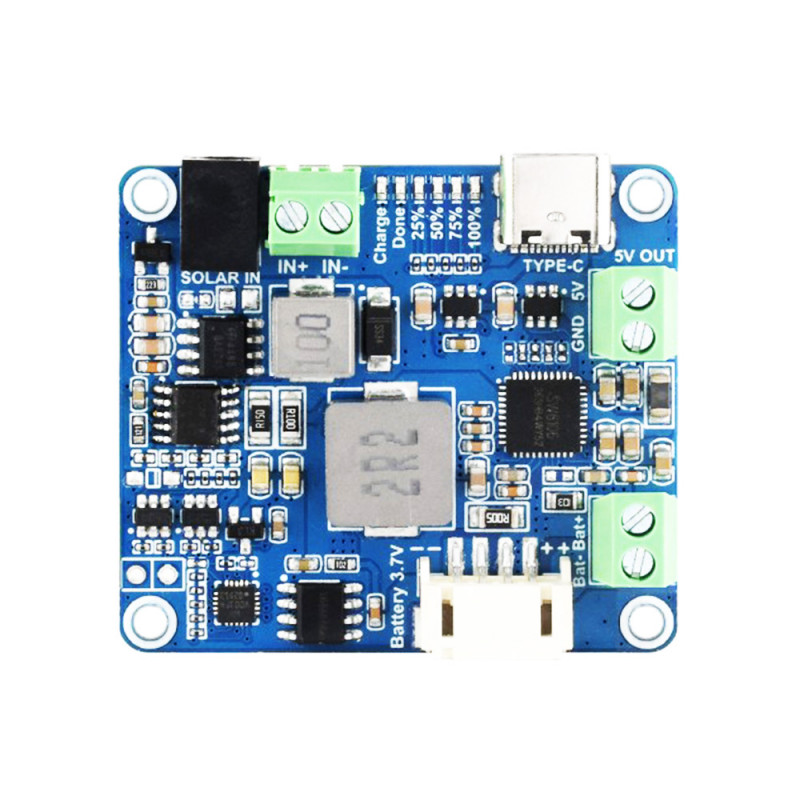

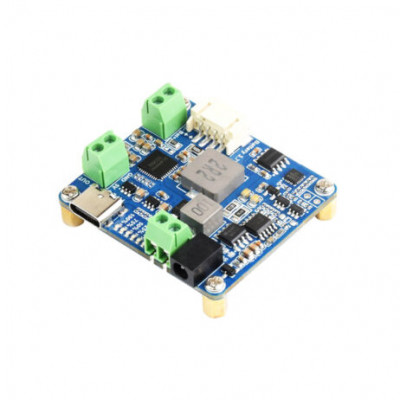

TheSolar Power Management Module (D)is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.
Applications:
Features:
- Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.
- Supports solar panel / Type-C power adapter for battery charging.
- For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection.
- Multi LED indicators, for monitoring the status of solar panels and batteries.
- Multi-protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use.
Package Includes:
1 x Waveshare Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output Battery holder Included
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output Battery holder Included
- Product Code: EC-28162
- Availability: Out Of Stock
-
Rs.1125.00
- (Excluding 18% GST)
