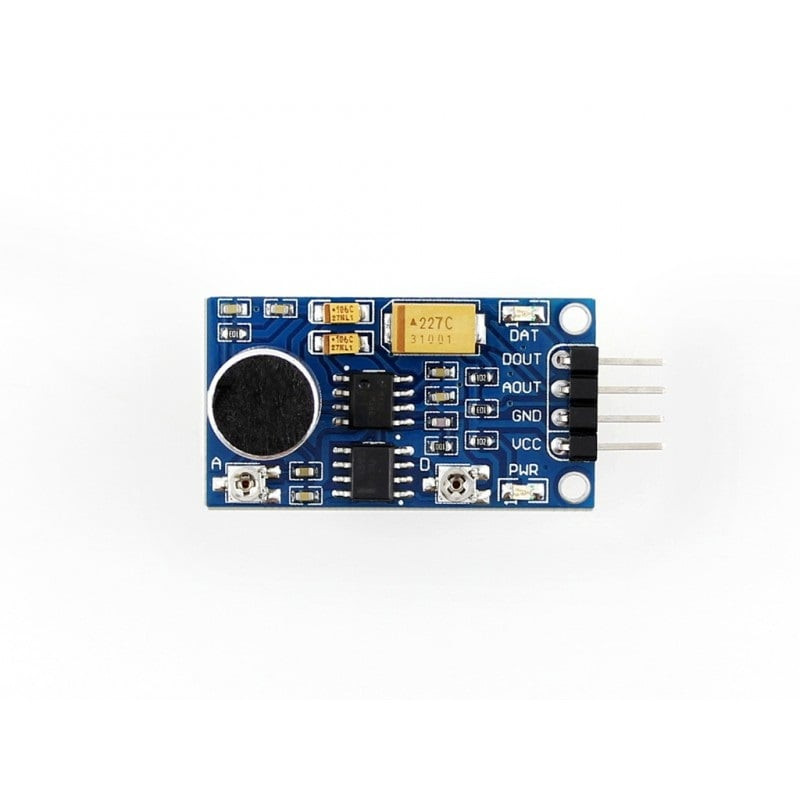

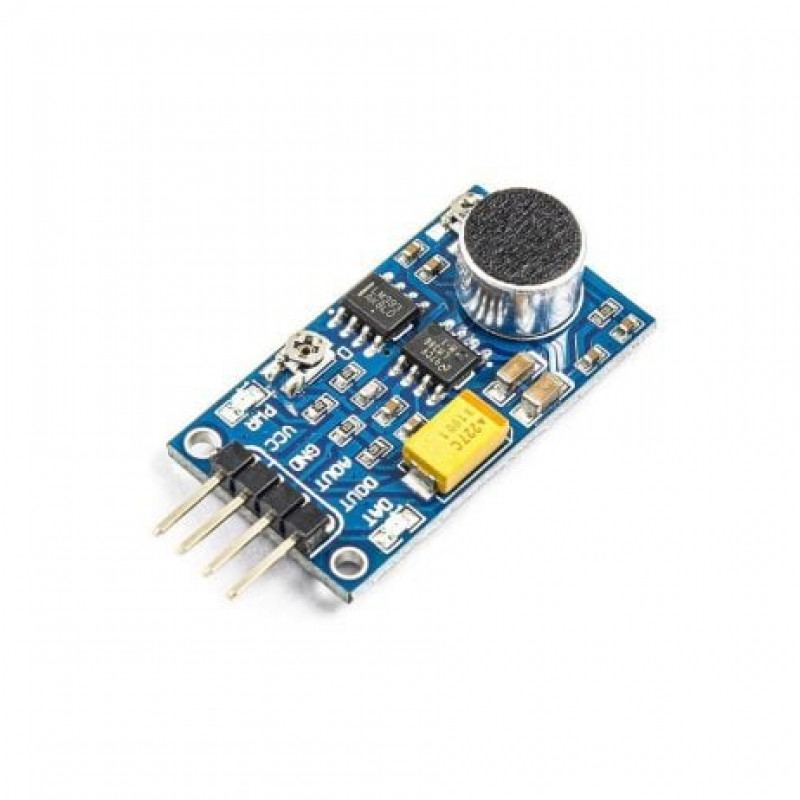

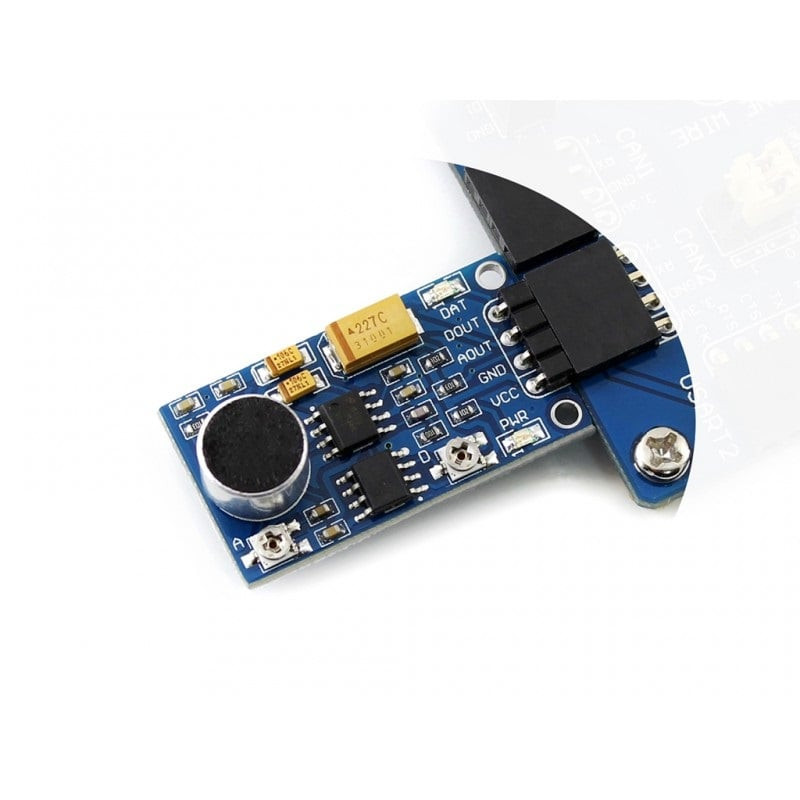

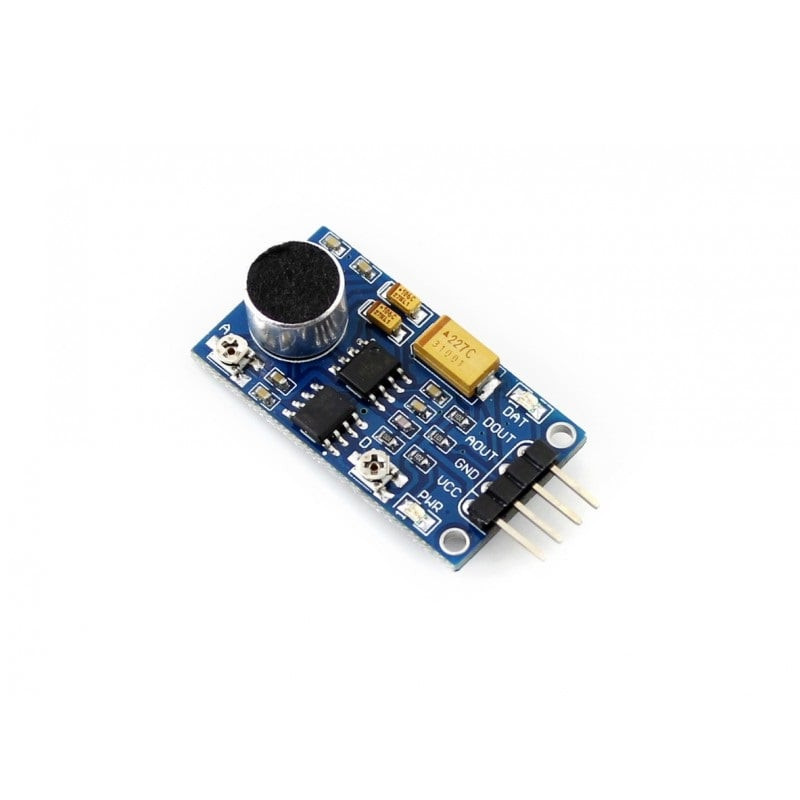

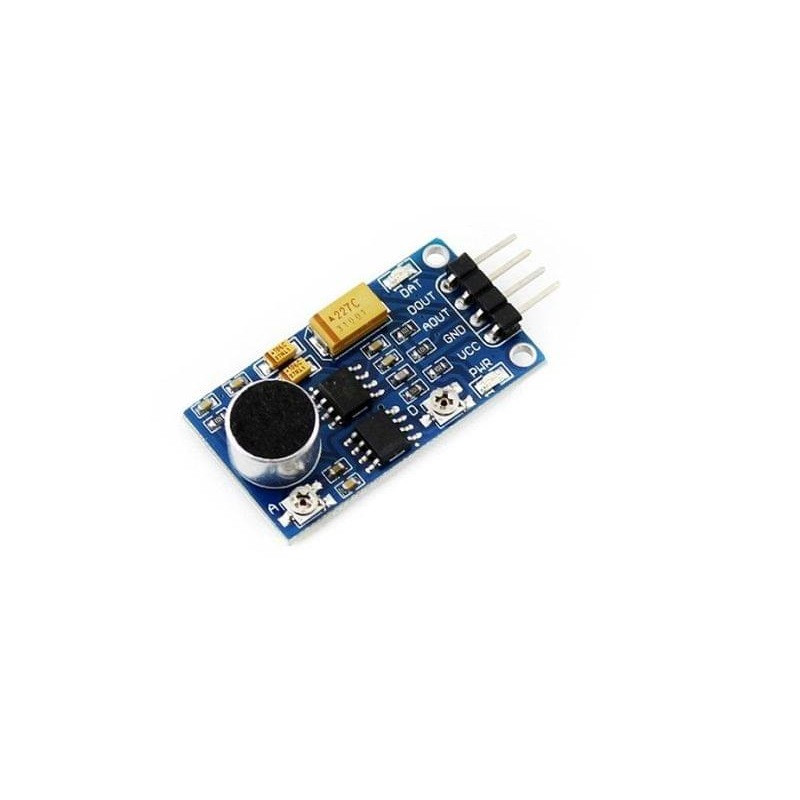

This is a Waveshare Sound Sensor.
LM386 is an audio power amplifier with features of low power consumption, adjustable voltage gain, wide voltage power supply, fewer requirements on peripheral components, and minimum total harmonic distortion. LM386 can be applied to consumer products with low voltage requirements. To minimize the number of peripheral components used, the voltage gain should be set to 20.
In the case of working with an MCU:
VCC 3.3V ~ 5.3V
GND power supply ground
AOUT MCU.IO (analog output)
DOUT MCU.IO (digital output)
Applications:
- Audio amplifier
- Ambient sound detection
- Sound level detection
Features:
- Onboard audio power amplifier LM386
- Audio signal gain up to 200
- Adjustable accuracy
- Signal output indicator
Package Includes:
1 x Sound Sensor
1 x 4-pin custom connector jumper wire
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 388.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare Sound Sensor
- Product Code: EC-17611
- Availability: 22
-
Rs.329.00
- (Excluding 18% GST)
