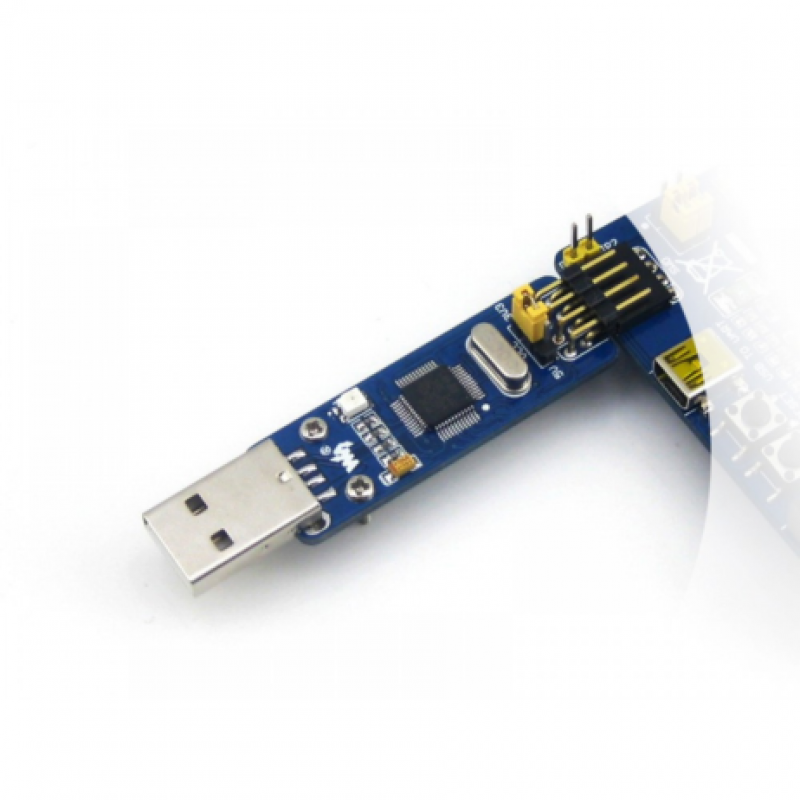

STM Programmers ST-LINK/V2 (mini) on a small single board, an extremely low-cost solution for in-circuit debugger/programmer for STM8 and STM32.
Applications
The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface.
| DEBUGGER PIN | TARGET BOARD PIN | DESCRIPTION |
|---|---|---|
| VCC | MCU VCC | STM8 VCC |
| SWIM | MCU SWIM | STM8 SWIM PIN |
| GND | GND | STM8 GND |
| RST | MCU RESET | STM8 RESET PIN |
The ST-LINK/V2 (mini) should be connected to the STM32 application via the SWD interface.
| DEBUGGER PIN | TARGET BOARD PIN | DESCRIPTION |
|---|---|---|
| VCC | MCU VCC | STM32 VCC |
| STUDIO | MCU SWDIO | STM32 SWD SWDIO |
| GND | GND | STM32 GND |
| SWCLK | MCU SWCLK | STM32 SWD SWCLK |
Features :
- Onboard 500mA self-recovery fuse to avoid harm by a short circuit
- Dual voltage output (3.3V/5V), easy for debugging/programming
- Standard USB interface for direct connection to PC
- Upgradable firmware is upgradable to support more devices in the future and
- Automatically upgraded
- Supported devices are STM8 devices and STM32 devices.
Package Includes :
1 ST-Link/V2 (mini)
1 x 4-pin custom connector cable
1 x USB type A plug to receptacle cable
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1359.36 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare ST-LINK/V2 (mini), STM Programmers & Debuggers
- Product Code: EC-17846
- Availability: 22
-
Rs.1152.00
- (Excluding 18% GST)
