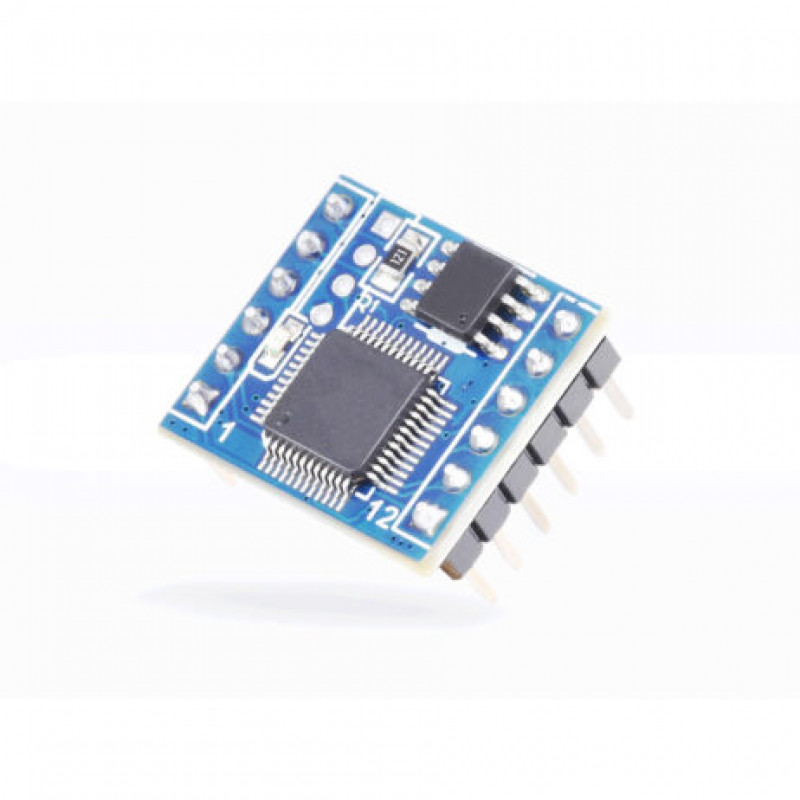

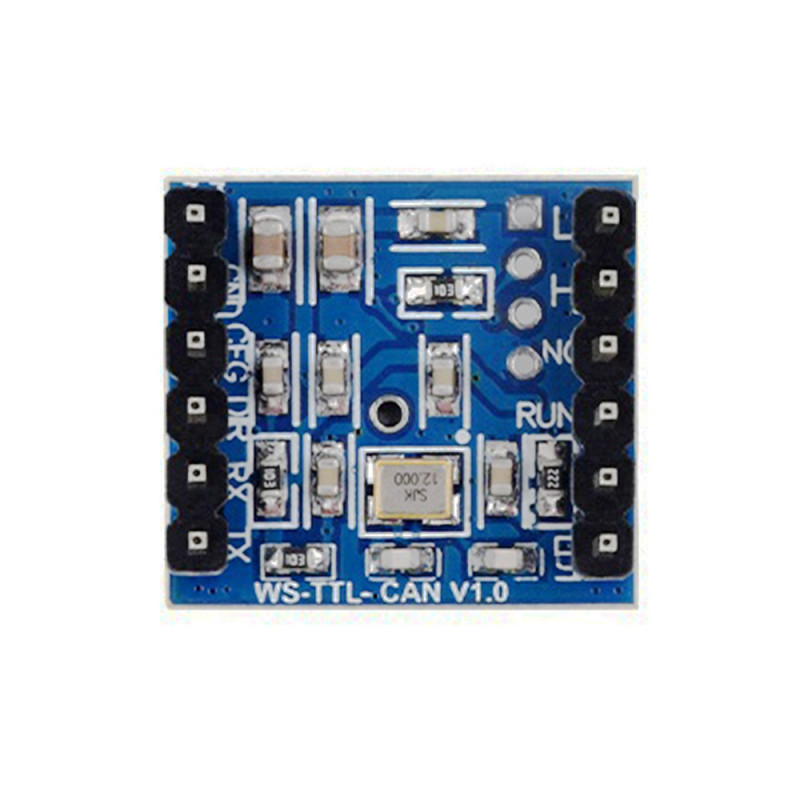

WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration.
Features:
- Support the bidirectional data communication between CAN and TTL.
- The device parameters are configurable through TTL.
- ESD Protection, Anti-surge Protection, Excellent EMC Performance.
- 14 groups of configurable filters.
- Four operation modes: transparent conversion, transparent conversion with identifiers, format conversion, and Modbus RTU protocol conversion.
- Offline detection and automatic recovery functionality.
- Compliance with CAN 2.0B specifications, compatible with CAN 2.0A; complies with ISO 11898-1/2/3 standards.
- Baud rate range: 10kbps ~ 1000kbps.
- CAN buffer capacity of 1000 frames to prevent data loss.
- High-speed conversion: At a serial port baud rate of 115200 and CAN rate of 250kbps, the CAN sending speed can reach up to 1270 extended frames per second (close to the theoretical maximum of 1309). At a serial port baud rate of 460800 and CAN rate of 1000kbps, the CAN sending speed can exceed 5000 extended frames per second.
Package Includes:
1 x Waveshare TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving
- Product Code: EC-28178
- Availability: 3
-
Rs.934.00
- (Excluding 18% GST)
