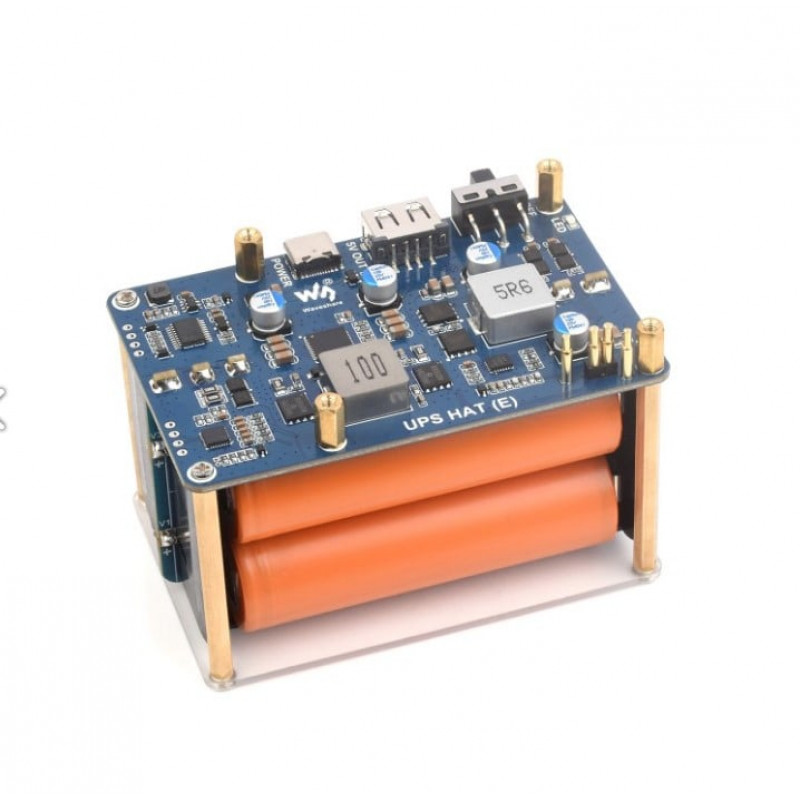

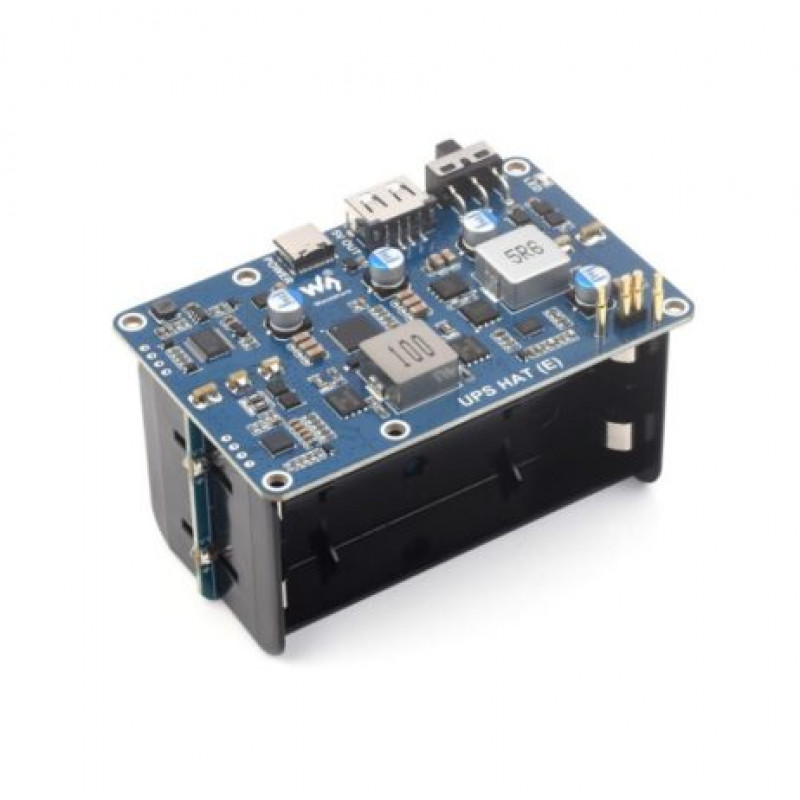

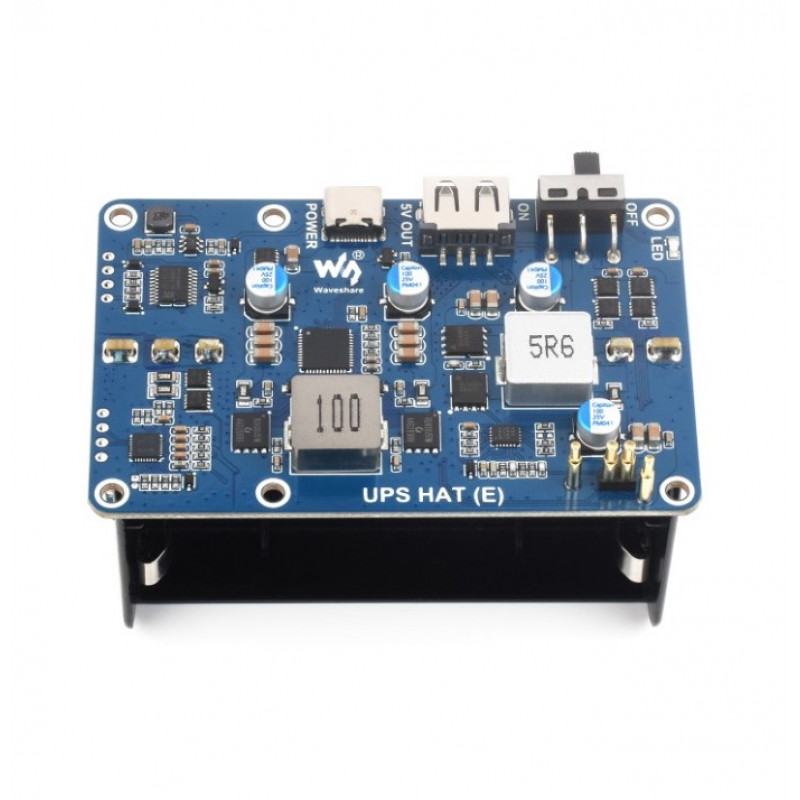

The UPS HAT (E) for Raspberry Pi is an uninterruptible power supply expansion board that supports up to four 21700 Li batteries (not included). UPS HAT (E) for Raspberry Pi features bi-directional fast charging, a high-output of 5V 6A, and allows simultaneous charging and power output, making it ideal for uninterrupted Raspberry Pi operation.
Features:
- Bi-Directional Fast Charging: Type-C port supports fast charging protocols, up to 40W.
- High Power Output: Provides stable 5V 6A output for reliable performance.
- Battery Monitoring: Onboard fuel gauge IC for real-time monitoring of battery parameters.
- Automatic Switch-over: Seamlessly switches to battery power when external power is lost.
- Pogo Pins Connector: Simplifies connection to Raspberry Pi without using GPIO resources.
- Real-Time Monitoring: I2C bus communication for tracking voltage, current, and capacity.
- LED Indicators: Onboard indicators for battery connection status.
Specifications:
- Control Bus: I2C
- Battery Support: 4 21700 Li batteries (not included)
- Type-C Power: Bi-directional input/output, up to 40W
- Output Power: 5V, 6A
- Mounting Hole Size: 3.0 mm
Package include:
1 x UPS HAT (E)
1 x Acrylic protection panel
1 x Screws pack
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare UPS HAT (E) for Raspberry Pi, Supports 4 21700 Li batteries (NOT included), Bi-Directional Fast charging, 5V 6A Output, Pogo Pins Connector, Raspberry Pi UPS
- Product Code: EC-30008
- Availability: 11
-
Rs.3059.00
- (Excluding 18% GST)
