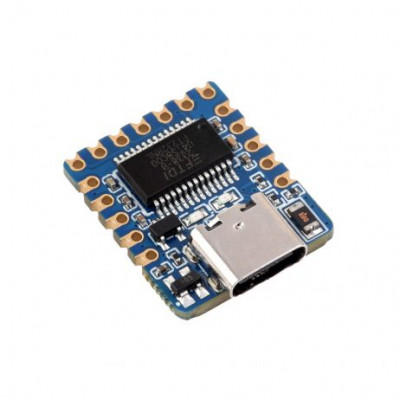

The USB-TO-TTL-FT232 is a UART serial module that converts a USB interface to TTL level. With this converter, a computer or other device with a USB interface can connect to TTL logic-level devices, such as microcontrollers, sensors, and more, enabling data communication.
Features:
- Onboard original FT232RNL chip, fast communication, stable and reliable, better compatibility

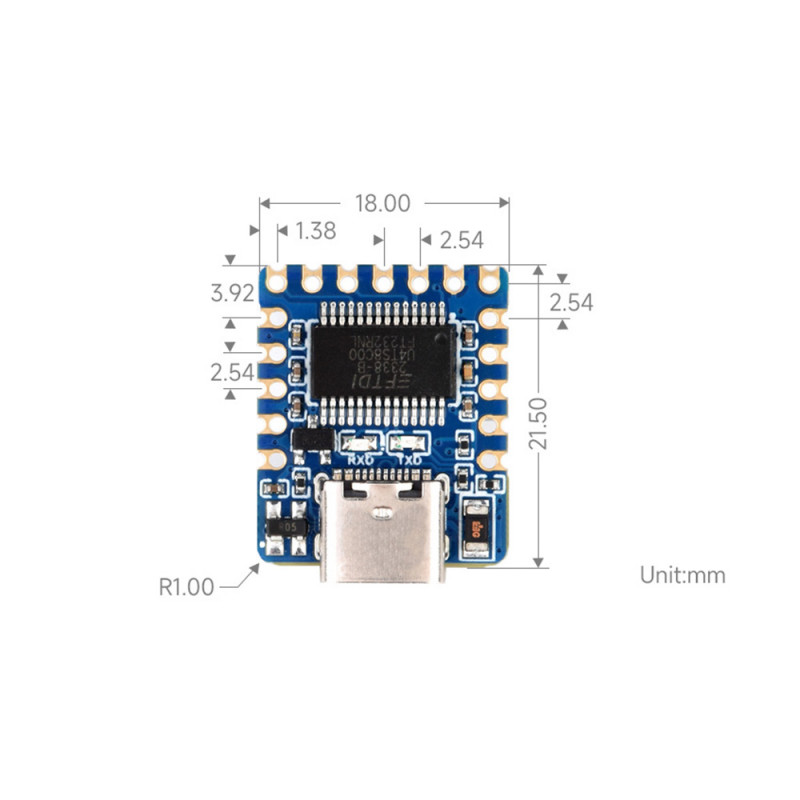

- Castellated holes design, compact size, easy to integrate into the device by soldering
- UART communication baudrate: 300bps~3Mbps
- Onboard self-recovery fuse and ESD diode, provides over-current/over-voltage protection, stable and safe operation
- Onboard TXD and RXD indicators for monitoring transceiver status
- Reserved VCC switching pads on the back, using 3.3V TTL by default, allows switching to 5V by re-soldering
- Adapting all function pins of the chip, more convenient for secondary development and integration
- Onboard USB Type-C port, smoothly plug & pull, solid and reliable
Package Includes:
1 x Waveshare USB To UART (TTL) Mini Communication Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare USB To UART (TTL) Mini Communication Module, Compact Size, Stable Communication, Over-current/Over-voltage Protection, TTL Serial Converter, USB To TTL Converter
- Product Code: EC-26135
- Availability: 2
-
Rs.466.00
- (Excluding 18% GST)
