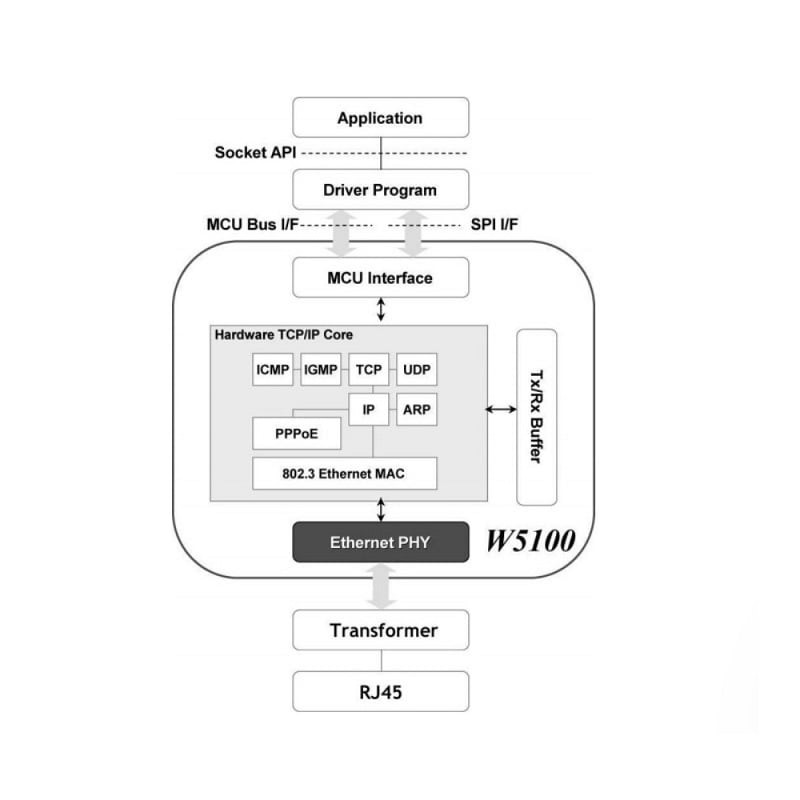

The WIZnet W5100 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier Internet connection for embedded systems. W5100 suits users in need of stable Internet connectivity best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC and PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, , which has been proven through various applications over many years. W5100 uses a 16ytes internal buffer as its data communication memory.

By using WIZnet W5100, users can implement the Ethernet application they need by using a simple socket program instead of handling a complex Ethernet Controller. It is possible to use 4 independent hardware sockets simultaneously. BUS (Direct & Indirect) & SPI (Serial Peripheral Interface) are provided for easy integration with the external MCU.

Note: for more technical details go through Datasheet in the attachment section

Features

1. Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection
2. 4 Independent hardware socket
3. Internal 16Kbytes memory for TCP/IP packet processing
4. 10BaseT / 100Base TX Ethernet PHY Embedded
5. 3.3V Operation with 5V I/O signal tolerance
6. LED outputs (TX, RX, full/half duplex, Collision, link, speed

Package Includes:

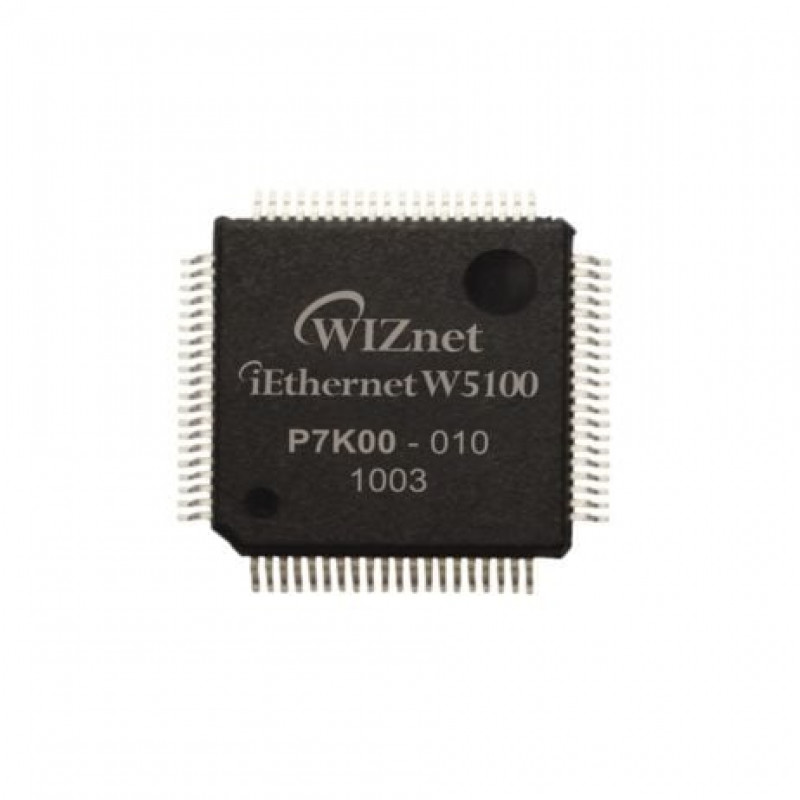

1 x WIZnet W5100
