The W5100S is a Hardwired TCP/IP embedded Ethernet Controller that enables easier Internet Connection for embedded Systems using SPI (Serial Peripheral Interface) and Parallel Bus.
W5100S suits users in need of stable Internet Connectivity Best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY. The implemented Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE which has been proven through various Applications over many years.W5100S uses a 16 Kbytes Internal Buffer as its Data Communication Memory.
By using W5100S, users can implement the Ethernet Application they need by using a simple socket Program instead of handling a complex Ethernet Controller. It is possible to use 4 independent hardware sockets simultaneously.
Features:
- 48QFN lead-free package (7x7mm, 0.5mm pitch)
- Host Interface: SPI (up to 70MHz, mode 0, 3) and Parallel System Bus with 2 Address signals and 8 Bits Data
- Unattackable hardware engine for preventing network attacks such as flooding, spoofing, injection
- 4 Independent hardware sockets simultaneously
- supports various Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Internal 16 Kbytes memory for TCP/IP packet processing
- socket-less commands possible: ARP request and ping requests
- 10BaseT / 100Base TX Auto Negotiable Ethernet PHY Embedded
- Auto-MDIX in auto-negotiation mode (Half/Full Duplex, 10/100 MBit/s speed)
- IP fragmentation not supported, ARP-cache table will not be stored permanently
- 3.3V operating voltage with 5V I/O signal tolerance
- LED outputs (full/half duplex, link, 10/100 speed, active)
- Reduced heat dissipation (W5500: 40 / other chips : 60-70)
- Efficient power operation: power down & main clock gating as well as wake-on LAN over UDP
Specifications:
- Ethernet: I/F PHY
- Operating Temperature: -40 + 85 C
- Operating Voltage: 3.3 V
- Functions: 3-in-1, TCP/IP+MAC+PHY
- Auto Negotiation: Yes
- Network sockets count: 4
- internal DPRAM buffer memory: 16 kB
- Package :QFN
- pin count: 48
- auto MDIX: Yes
- Wake on Lan: Yes
- Power Down Mode: Yes
- typ. Power Consumption: tbd
- SPI (max. speed): 70 MHz
- MCU I/F 8 bit (indirect),: SPI
- PHY chip: W5100S
- pin pitch: 0.50 mm
- MII: No
- Ethernet Speed: 10/100
- parallel memory bus: 8bit indirect
Package Includes:
1 x WIZnet W5100S-Q
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

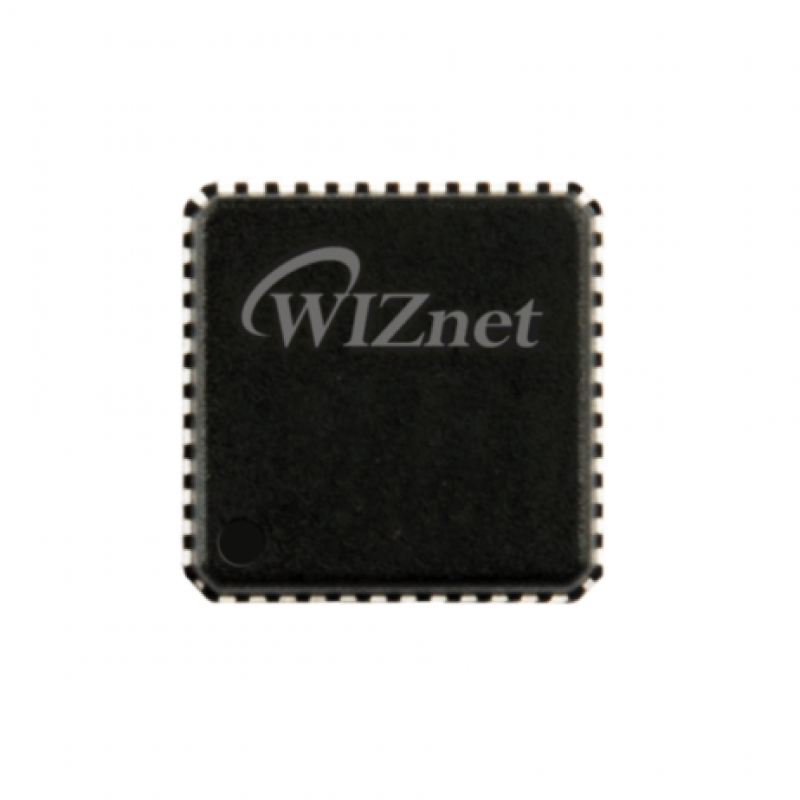

WIZnet W5100S-Q
- Product Code: EC-21837
- Availability: Out Of Stock
-
Rs.158.00
- (Excluding 18% GST)
