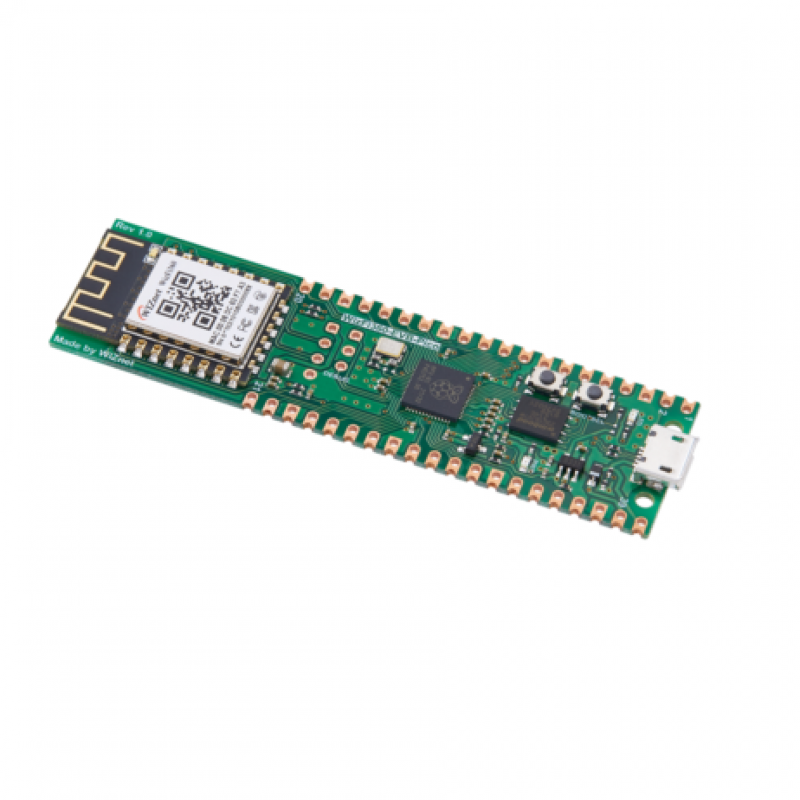

The WIZnet WizFi360-EVB-Pico is a development board designed for the WizFi360 module, a low-power, compact Wi-Fi module that provides Wi-Fi connectivity for IoT devices.
The development board includes a WizFi360 module, a USB port for power and communication, and various other connectors for interfacing with other devices. The board also consists of an onboard antenna and a U.FL connector for an external antenna, providing flexibility for antenna placement and optimization.
The WizFi360-EVB-Pico is designed to be used with the WIZnet WizFi360-EVB evaluation board, which provides a complete development environment for the WizFi360 module, including software development tools and example code.
Features:
- RP2040 microcontroller with 2MByte Flash
- Dual-core cortex M0+ at up to 133MHz
- 264kByte multi-bank high-performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- Includes WizFi360-PA
- WiFi 2.4G, 802.11 b/g/n
- Support Station / SoftAP / SoftAP+Station operation modes
- CE, FCC certification
- Includes 16M-bit Flash Memory
- Micro-USB B port for power and data (and for reprogramming the Flash)
- 40 pin 2151 DIP style 1mm thick PCB with 0.1 through-hole pins also with edge castellation
- 3-pin ARM Serial Wire Debug (SWD) port
- Built-in LDO
Package Includes:
1 x WIZnet WizFi360-EVB-Pico
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
WIZnet WizFi360-EVB-Pico
- Product Code: EC-21859
- Availability: Out Of Stock
-
Rs.774.00
- (Excluding 18% GST)
