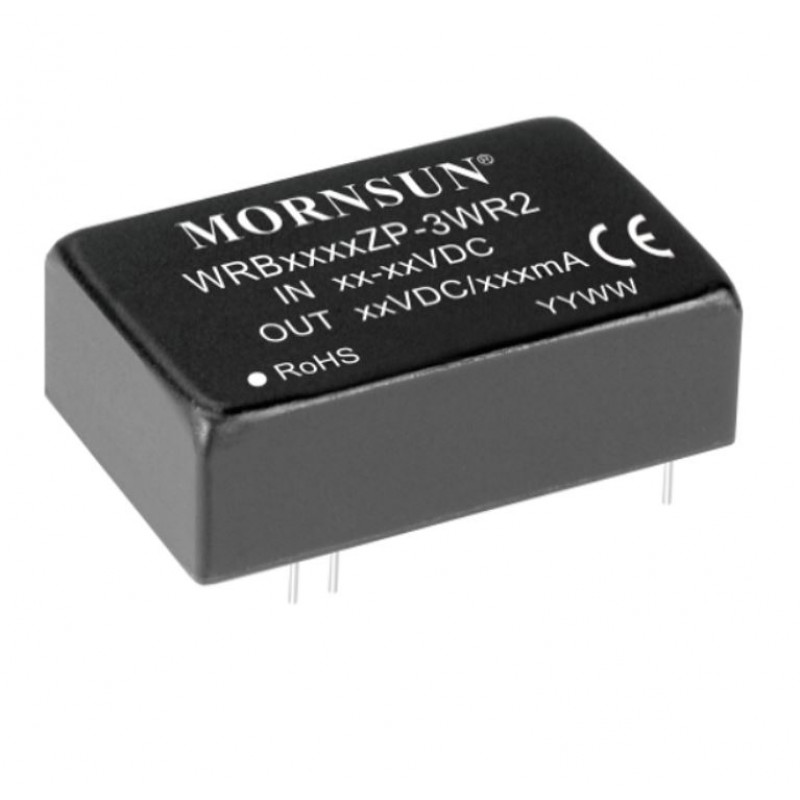

WRB2405ZP-3WR2 Series of isolated 3W DC-DC converter products with 2:1 input voltage and conventional voltage output. The product has a relatively compact DIP package, and features high efficiency, operating temperature of -40℃to +85℃, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make the converter an ideal solution in communication, instruments, and industrial electronics applications.
Features:-
- Wide input voltage range (2:1)
- High efficiency up to 86%
- I/O isolation test voltage 1.5k VDC
- Output short-circuit protection(self-recovery)
- Operating ambient temperature range: -40°Cto+85°C
- Meet CISPR32/EN55032 CLASS A, without extra components
- UL60950, EN62368 approved
Specifications:-
- I/p Voltage range:18-36V
- Nominal voltage:24V
- O/p voltage:5V
- O/p current:600/30
- wattage:3W
- Isolation:1.5kvdc
- Package: DIP
Package Includes:-
1 x WRB2405ZP-3WR2 Mornsun 24V to 5V DC-DC Converter 3W Power Supply Module - DIP Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
WRB2405ZP-3WR2 Mornsun 24V to 5V DC-DC Converter 3W Power Supply Module - DIP Package
- Product Code: EC-16786
- Availability: Out Of Stock
-
Rs.989.00
- (Excluding 18% GST)
