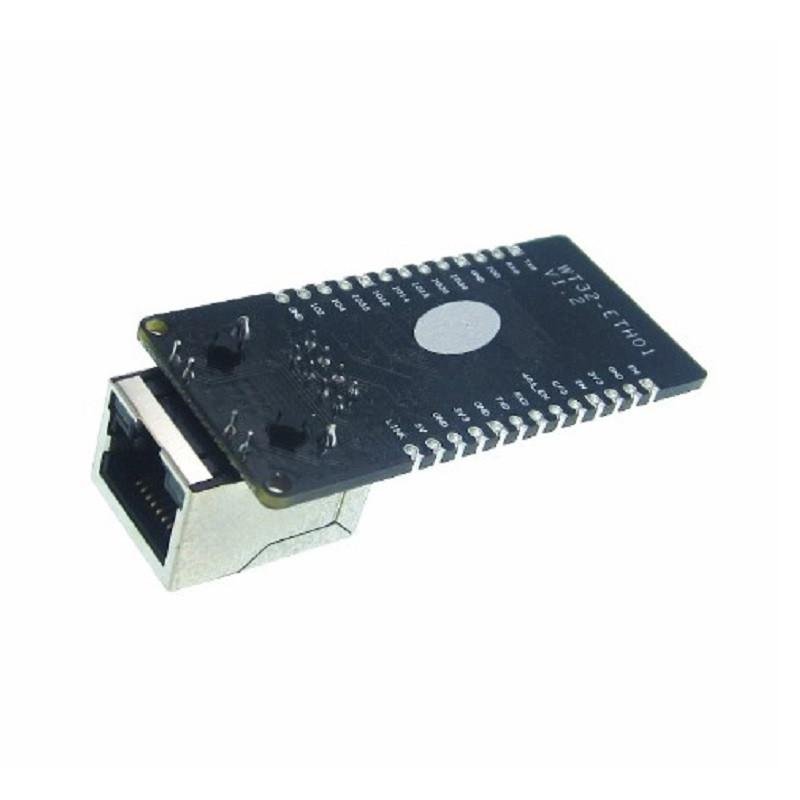

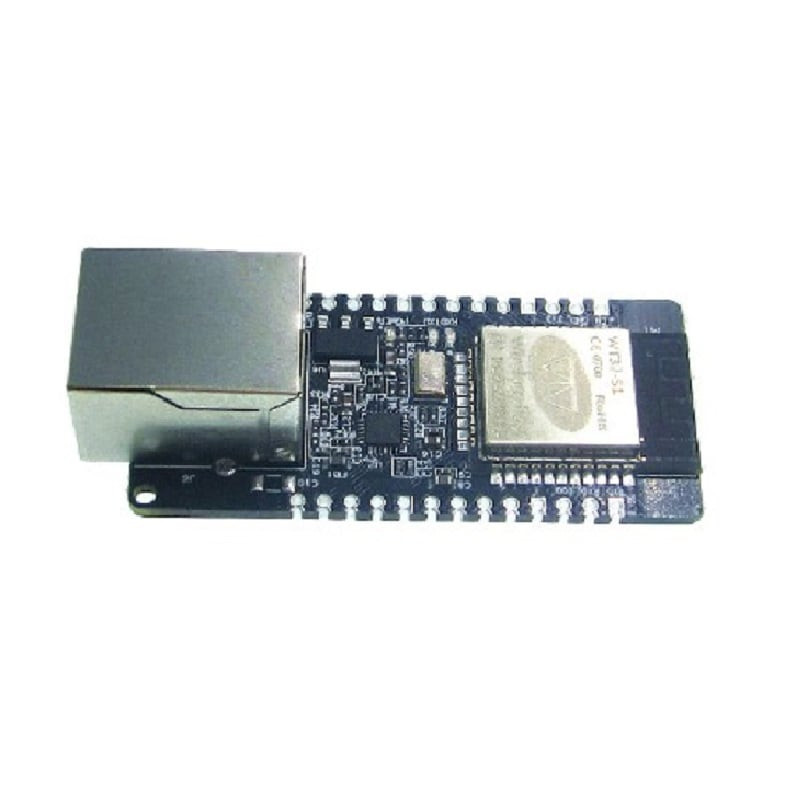

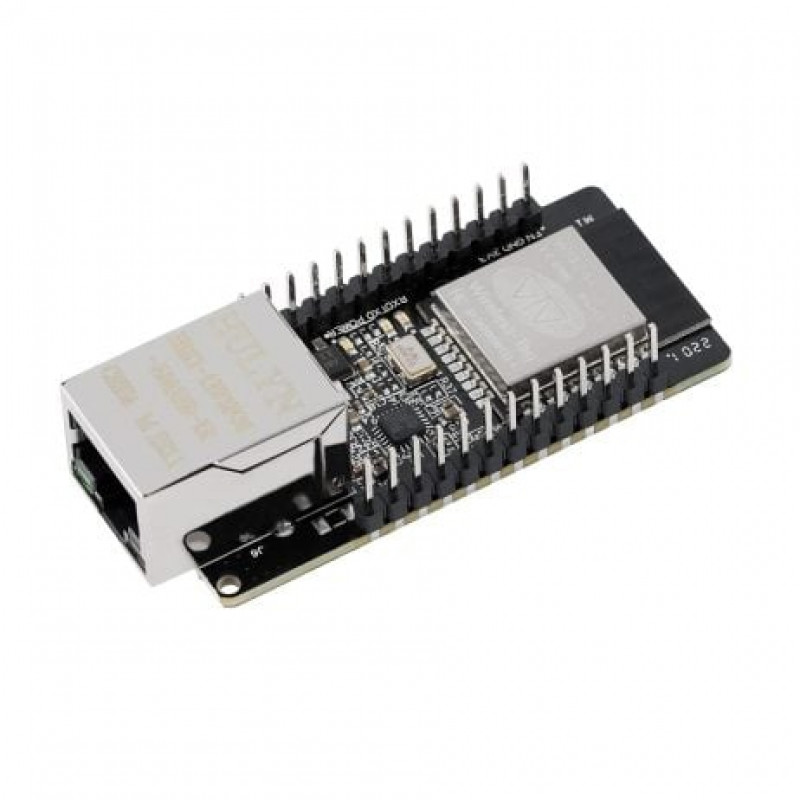

WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth is an embedded serial port to Ethernet module designed by Wireless-tag company based on ESP32 chipset, The module integrates the optimized TCP/IP protocol stack, which is convenient for users to complete the networking function of embedded devices , and greatly reduces the cost of development time. In addition, the module is compatible with the semi-welding disk and connector through hole design, the plate width is a general width, the module can be welded directly on the board, providing trust to your potential users.
Features:
- Easy to use
- Easy to interface
- Good quality product
- Used for Home automation, Smart home control panel
- can also be used in Wearable electronics
Specifications:
- Operating voltage : 5V, 3.3V
- Model Name : WT32-ETH01
- RAM Memory Installed Size : 4 MB
- Processor Speed : 2.4 GHz
- Hardware Interface : Bluetooth
- Connector Type : Wi-Fi
- Industrial operating temperature range : -40C -+85C
- Serial port baud rate : 80-5000000
- Network protocols : IPv4,TCP/UDP
- Software encryption : AES/RSA/ECC/SHA
- The product has passed FCC/CE/RoHS standard certification
- Wi-Fi Protocol : 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps); A-MPDU and A-MSDU aggregation, support 0.4_s guard interval
- Bluetooth Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards
Package Includes:
1 x WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1757.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth
- Product Code: EC-18387
- Availability: 37
-
Rs.1337.00
- (Excluding 18% GST)
