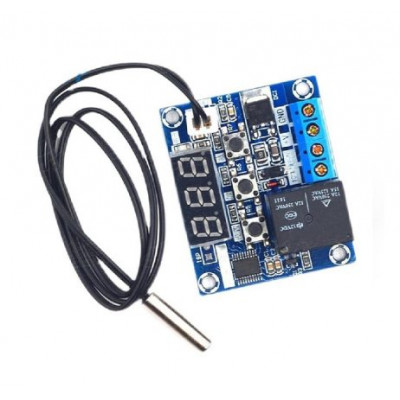

The WX-101W DC12V Digital LED Temperature Thermostat Control Switch Board offers precise temperature control. Operating on DC12V, it features a digital LED display for easy monitoring. The included NTC probe with a 20cm cable ensures accurate temperature sensing. Ideal for various applications, this board provides a user-friendly solution for temperature regulation in electronic projects and appliances.
Function Setup
- Press the SET key:
- Display Function Range Default
- F-1 Heating/cooling / Heating
- F-2 Hysteresis Setting 0.1-20 0.1
- F-3 Temperature Calibration -5-+5 0
- F4 Delay action time 0-10min 0
Features:
- WX-101W DC12V Temperature Control SwitchBoard
- Digital LED display for monitoring
- NTC probe with 20cm cable for accurate temperature sensing
- DC12V operation
- Precise temperature control
- Temperature Control: Digital LED display
- Easy and convenient to use.
Specifications:
- Temperature control range: -40 -120 C
- Measurement Accuracy: 0.1 Degrees Celsius.(-9.9 to 99.9 C) others 1 C
- Hysteresis accuracy: Default 0.1 C(tunable 0.1-20 C)
- Refresh rate: 0.5 S.
- Input Power: DC12V.
- Measuring inputs: Waterproof sensor
- Output: 1 Channel relay output, capacity = 12A.
- Environmental requirements: -20~ 85 C
- Length: 49mm
- Width: 40mm
- Height: 16mm
Package Includes:
1 x WX-101W DC12VDigital LED Temperature Thermostat Control Switch Board with NTC Probe Cable 20cm
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
WX-101W DC12VDigital LED Temperature Thermostat Control Switch Board with NTC Probe Cable 20cm
- Product Code: EC-18462
- Availability: Out Of Stock
-
Rs.360.00
- (Excluding 18% GST)
