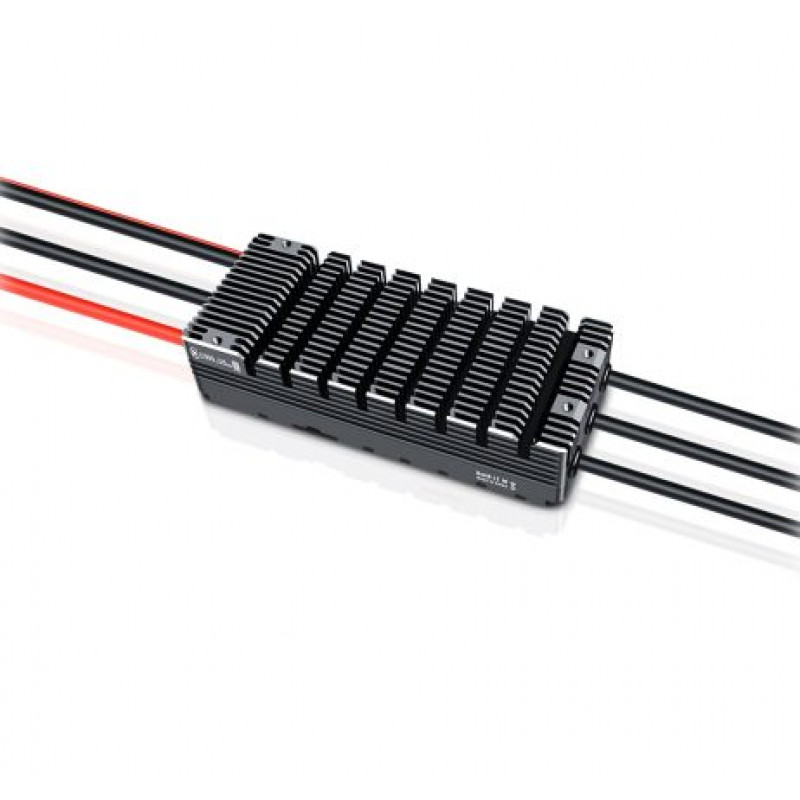

The U300 V2 is a powerful Brushless DC Motor Automatic Electric Speed Controller designed for high-performance applications, such as powered paragliders. With a continuous current capacity of 300A and a peak current of 320A, it is engineered for efficiency under optimal cooling conditions. Brushless DC Motor Automatic Electric Speed Controller supports 5 to 14S LiPo batteries, with a compatible throttle pulse width range of 1050us to 1940us.
Features:
- Protection Systems: Includes short circuit, voltage, and temperature protections for enhanced safety.
- Throttle Adjustment: Compatible with 3.3V/5V PWM input signals.
- Robust Design: IPX4 rating ensures resistance to water and dust.
- Communication Interface: RS-485 for seamless integration with flight controllers.
Specifications:
- Size: 176.0 x 73.0 x 42.2 mm
- Weight: Approximately 645g (excluding wires)
- Operating Temperature: -25 to 60C
- Power/Motor Lines: 7AWG
Package include:
1 x XC ESC 12s 300A 48V 13HP Powered Paraglider Brushless DC Motor Automatic Electric Speed Controller
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XC ESC 12s 300A 48V 13HP Powered Paraglider Brushless DC Motor Automatic Electric Speed Controller
- Product Code: EC-29643
- Availability: 1
-
Rs.52172.00
- (Excluding 18% GST)
