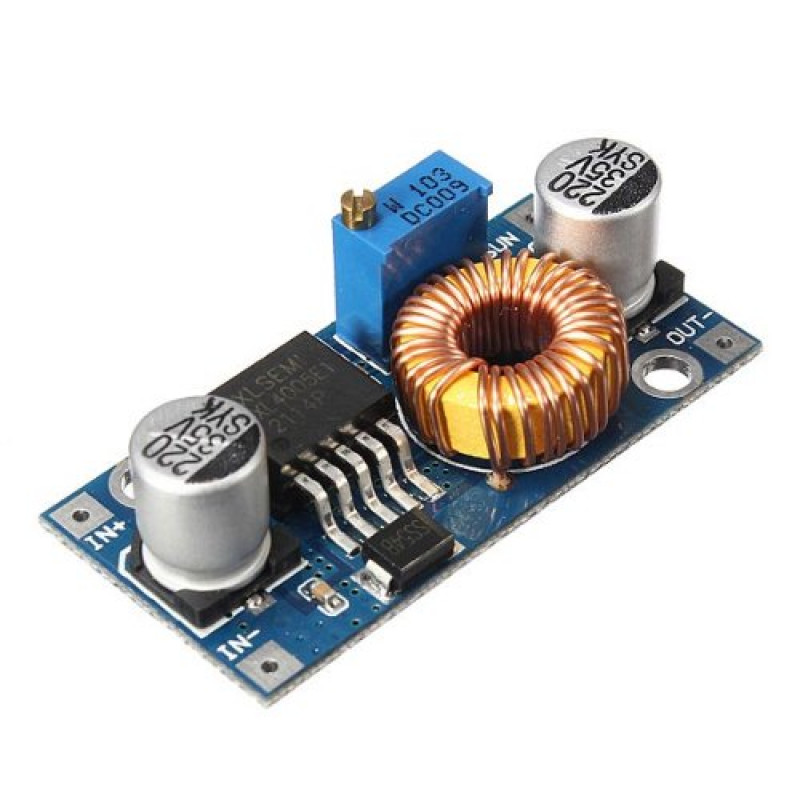

• XL4005 - 5A - DSN5000 - High Current - DC-DC Adjustable Step-Down Power Supply Module

Description:-

The XL4005 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The step-down module can easily reach 4A, 50W, add heat sink can reach 75W.

Module window: 5 A high-power high efficiency low ripple


Specifications:-

  • Module: non-isolated buck module (BUCK)
  • Input voltage: 5-32V (input should try not to exceed 38V)
  • Output voltage: 0.8-32V continuously adjustable
  • Output current: 0-5A, recommended for use within 3.5A.
  • Output power: recommended in the use of 75W, more than 50W please add heat sink.
  • Operating temperature: -40 ~ +85 degrees
  • Operating frequency: 300KHz
  • Conversion efficiency: up to 92% (efficiency and input, output voltage, current, pressure related)
  • Load regulation: S (I) ≤ 0.8%
  • Voltage regulation: S (u) ≤ 0.8%
  • Power indicator: Yes
  • Short circuit protection: Yes (limit current 8A)
  • Over-temperature protection: Yes (over-temperature automatically turn off the output)
  • Input Reverse Protection: None, (if required, add high current diode at IN+)
  • Installation: 2x M3 screws
  • Module size: 45mmx21mm (Height 14mm)

Applications:-

DIY mobile power supply, car power, communications equipment power supply, etc.
