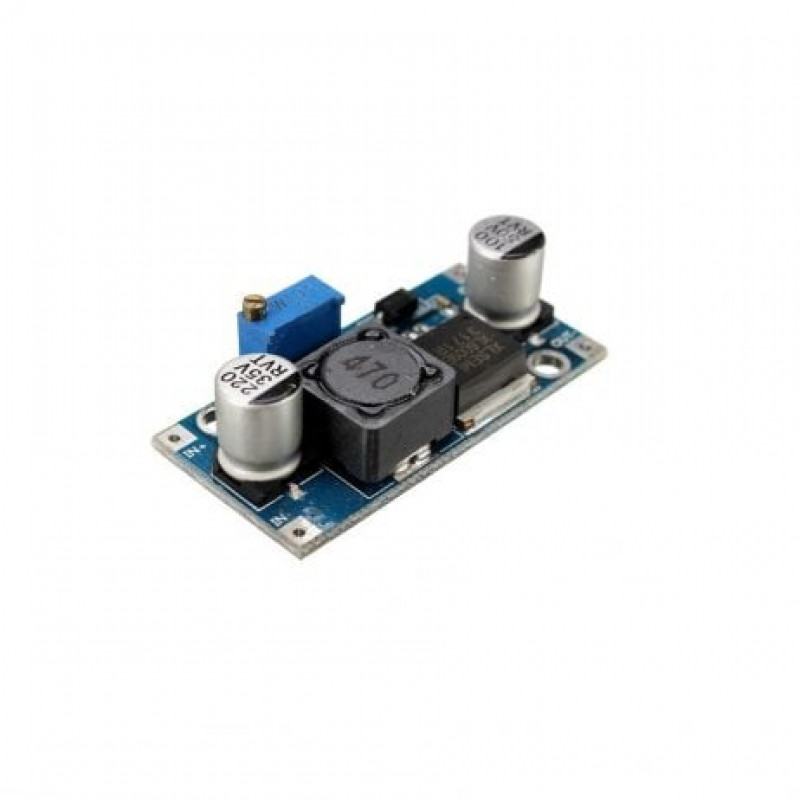

This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.
It equips4A high-efficiency MOSFET switches, so as toprovide a conversion efficiency of up to 94%.
High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller
Pins
- IN+ input positive
- IN- input negative!
- OUT+ output positive
- OUT- output negative
Features :
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Package Includes :
1 x CN6009 XL6009 DC-DC Step-up converter module.
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 69.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board
- Product Code: EC-21791
- Availability: 1115
-
Rs.59.00
- (Excluding 18% GST)
