A closed-loop current sensor consists of a Hall sensor mounted in an air gap of a soft magnetic core, a coil wound around the core, and a current amplifier. The current-carrying conductor placed through the aperture of the sensor produces a magnetic field that is proportionate to the current.
Closed-loop sensors measure AC and DC currents and provide electrical isolation. They offer fast response, high linearity, and low-temperature drift. The current output of the closed-loop sensor is relatively immune to electrical noise.
Closed loop,bas-bar built-in, PCB welding type: Detect DC, AC, and pulse current.
Features:
- Model: YHDC HA25
- Flame resistance: UL94-V0
- Working temperature: -25+70C
- Storage temperature: -25+70C
- Dielectric strength: 2.5KV 50Hz 1min
Package Includes:
1 x YHDC HA25 +-5A/25mA Hall closed looped current sensor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

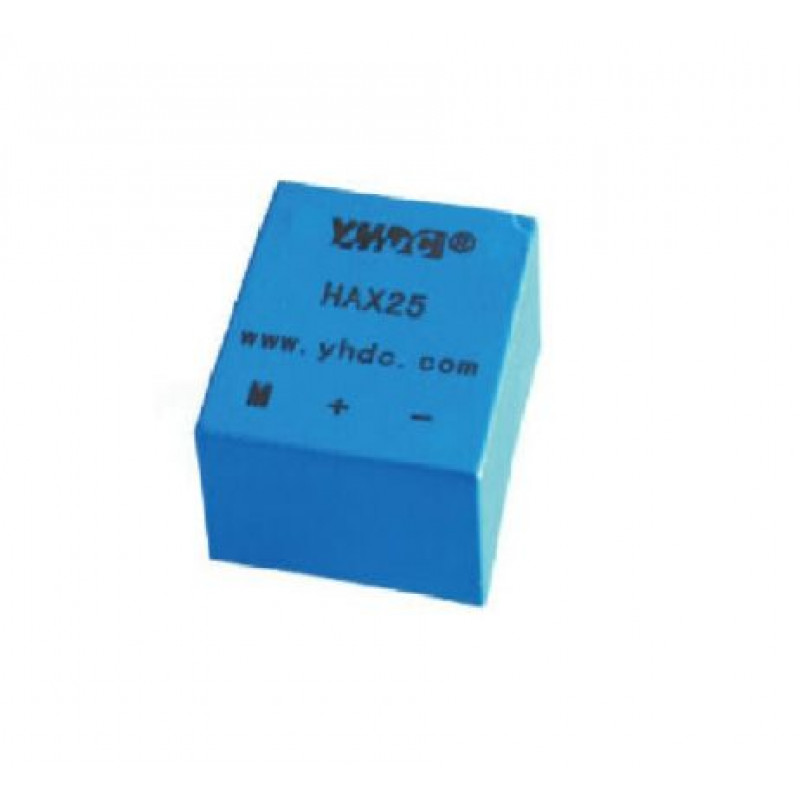

YHDC HA25 +-5A/25mA Hall closed looped current sensor
- Product Code: EC-23794
- Availability: Out Of Stock
-
Rs.870.00
- (Excluding 18% GST)
