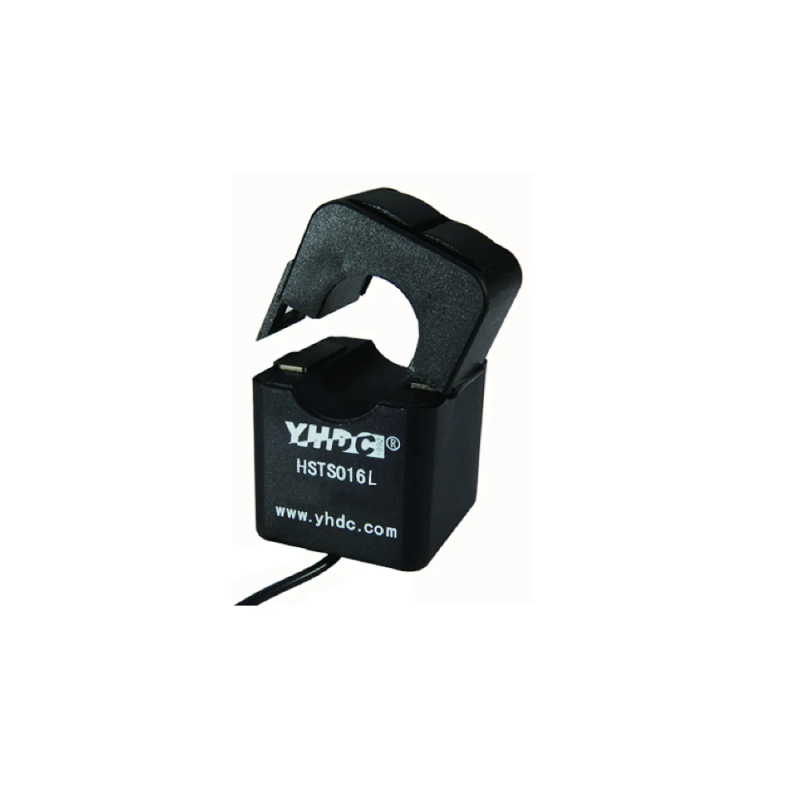

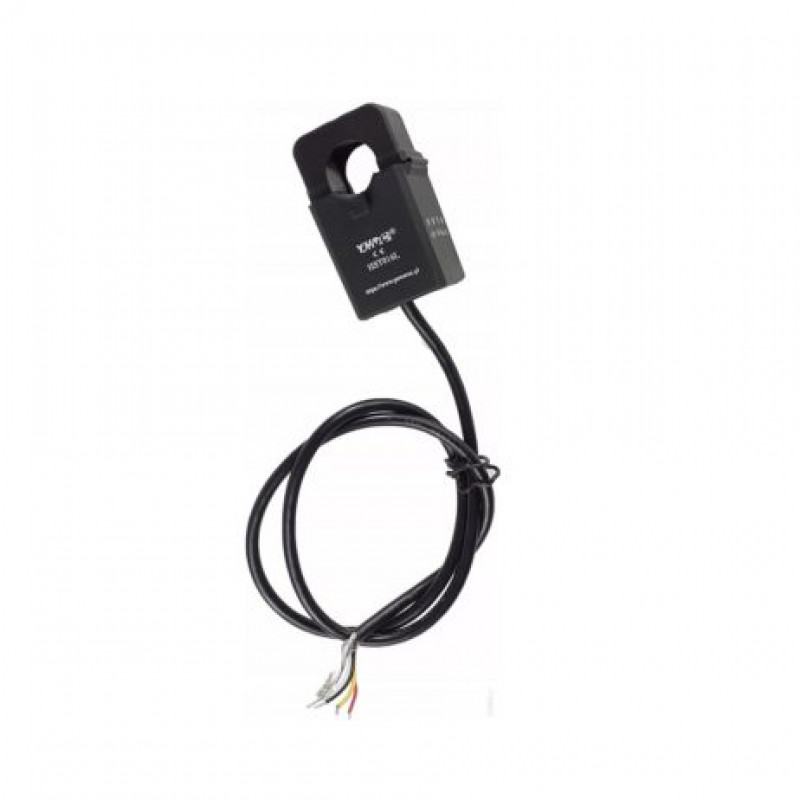

The HST016L current transducer can be used to measure direct, alternating, and pulsating currents. It was designed on the principleof an open loop and there is galvanic isolation between the primary conductor and the secondary circuit.Thanks to its design the openable core is ideal for installation on a cable without breaking the primary circuit.The hole diameter is 16 mm.The output of the transducer reflects the real wave of the conductor.The advantage of this sensor is its low power consumption, which is particularly advantageous when measuring high currents.The length of the cables exiting the transformer is 50 cm (red, black, green, white).

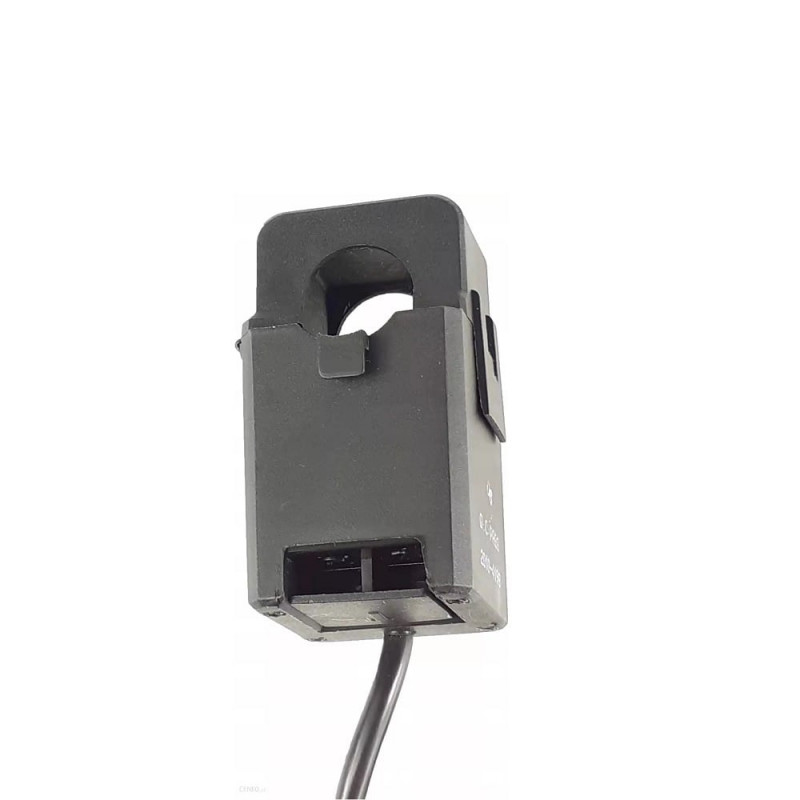

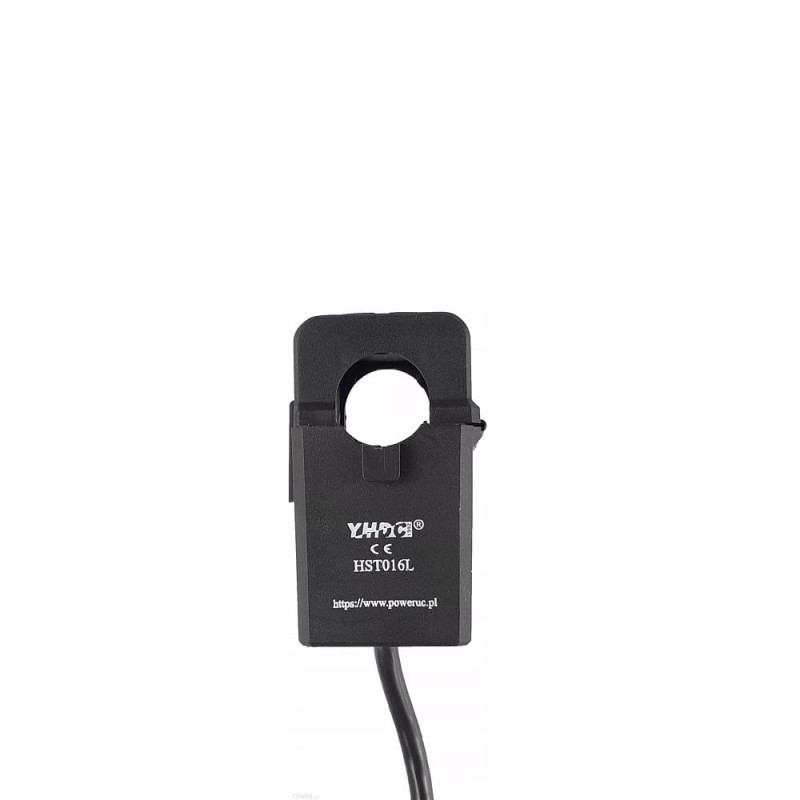

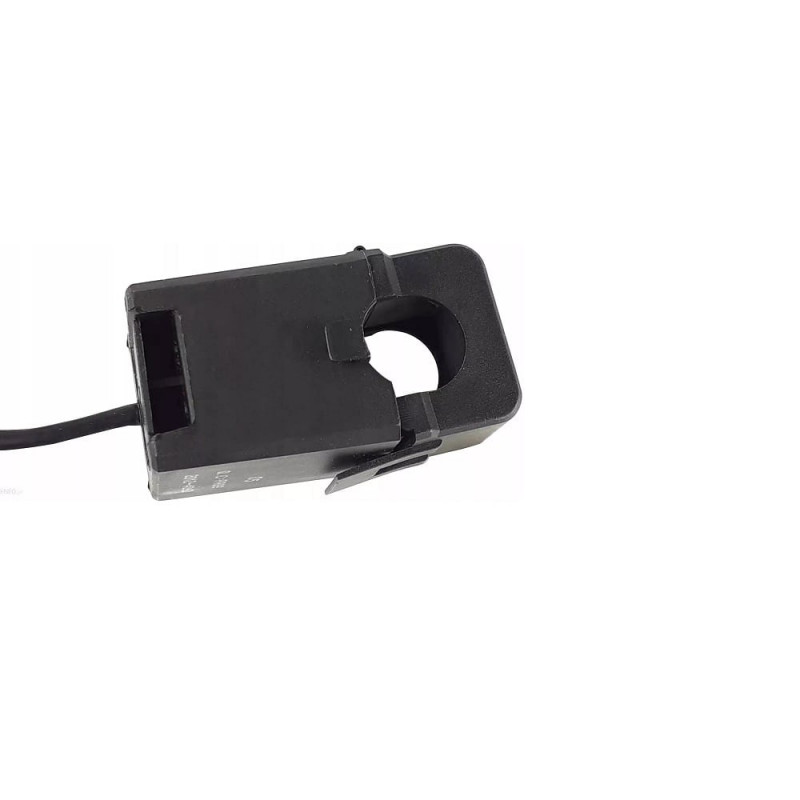

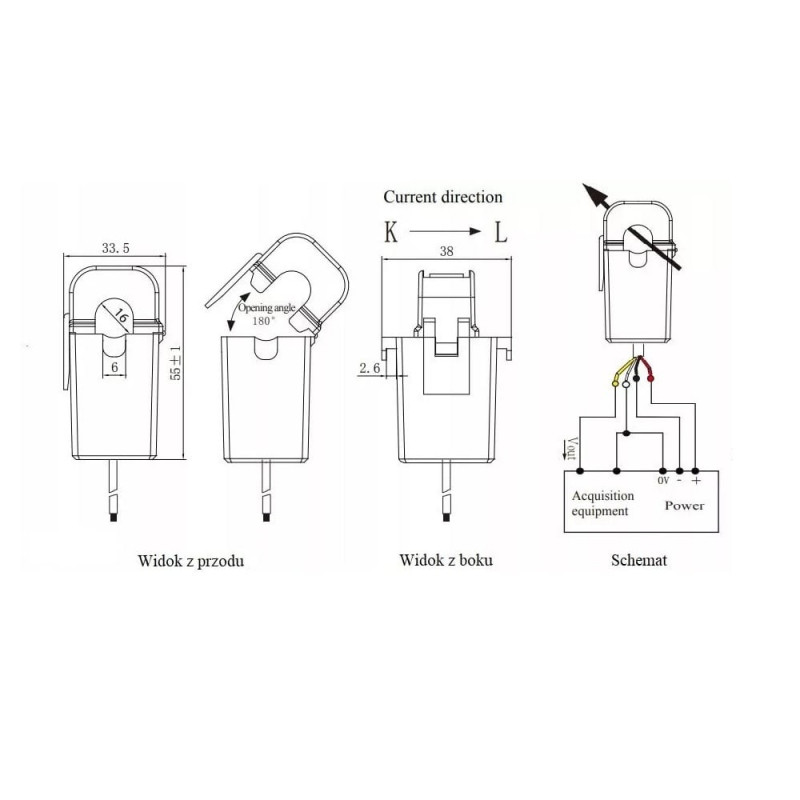

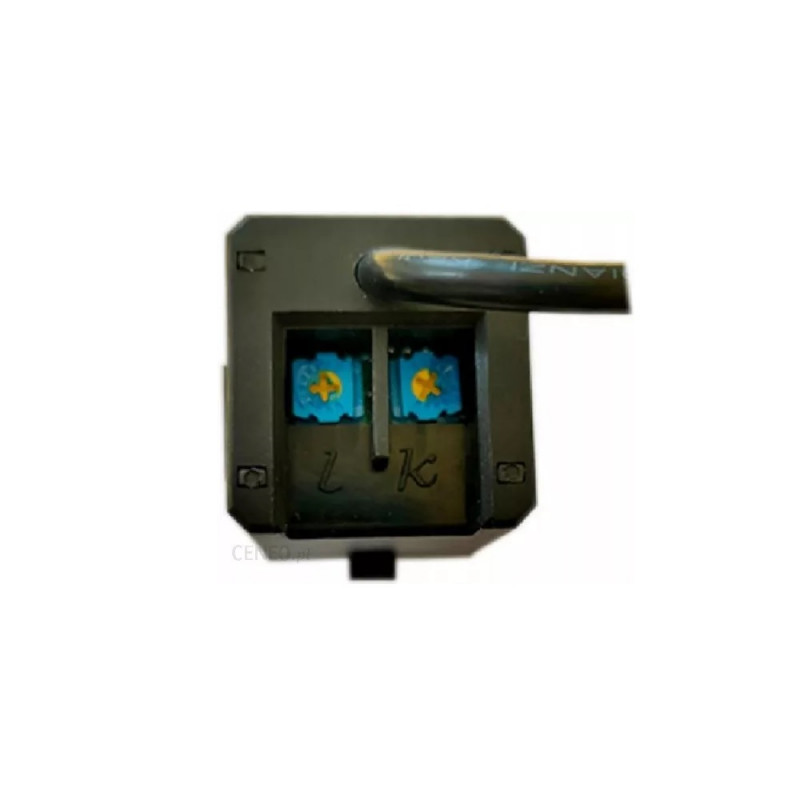

Wiring diagram:
- Red: + 15V
- Black: -15V
- Yellow: Vout
- White: 0V
Note: Images shown may vary from the actual product in terms of values printed over it
Features:
- Transformer type: open/split core
- Sensor output: voltage
- Cable: 50 cm
- Fire resistance: UL94-V0
- Working temperature: -10 ~ + 70
- Storage temperature: -25 ~ + 70
- Frequency: DC 25kHz
- Dielectric strength: 2.5KV 50Hz 1min
- Rated input: 200A
- Measured range: 200A
- Rated output: 4V
- Accuracy: 1%
- Linearity: 1%
- Supply voltage ( 5%): 4V
- Power consumption: 12mA
- Hole diameter () 16mm
- Response time: 5 s
- Weight: 81 g
1 x YHDC HST016L 200A 4V Hall Split Core Current Sensor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1177.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
YHDC HST016L 200A 4V Hall Split Core Current Sensor
- Product Code: EC-23789
- Availability: Out Of Stock
-
Rs.976.00
- (Excluding 18% GST)
