YHDC SCT016S 200A:100mA Split Core Current Transformer is compatible with foreign products completely, built-in TVs. Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment, and air compressor.
Features:
- Material of core: Ferrite
- Working voltage: Phase voltage720V
- Working temperature: -25+60
- Storage temperature: -30+90
- Frequency range: 50Hz1KHz
- Input: Bare conductor
- Cable Length: 40 cm
- Output: 200A:100mA
- Whole Diameter: 15
- Dimensions (L x W x H) mm: 29 x 30 x 46
- Weight: 85g
Package Includes:
1 x YHDC SCT010 20A: 20mA Split Core Current Transformer
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 736.32 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

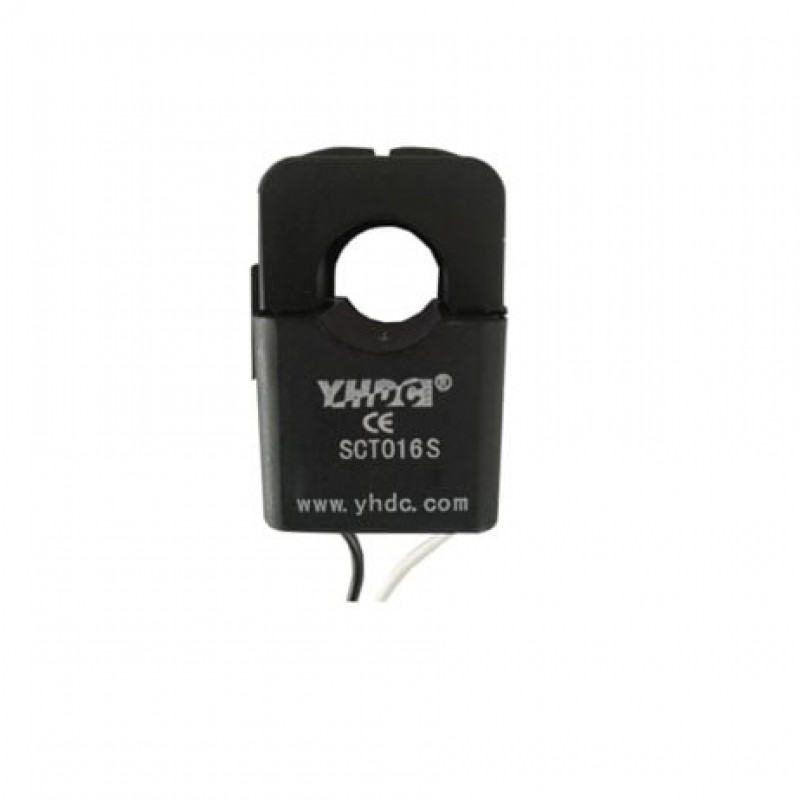

YHDC SCT016S 200A:100mA Split Core Current Transformer
- Product Code: EC-23784
- Availability: Out Of Stock
-
Rs.624.00
- (Excluding 18% GST)
