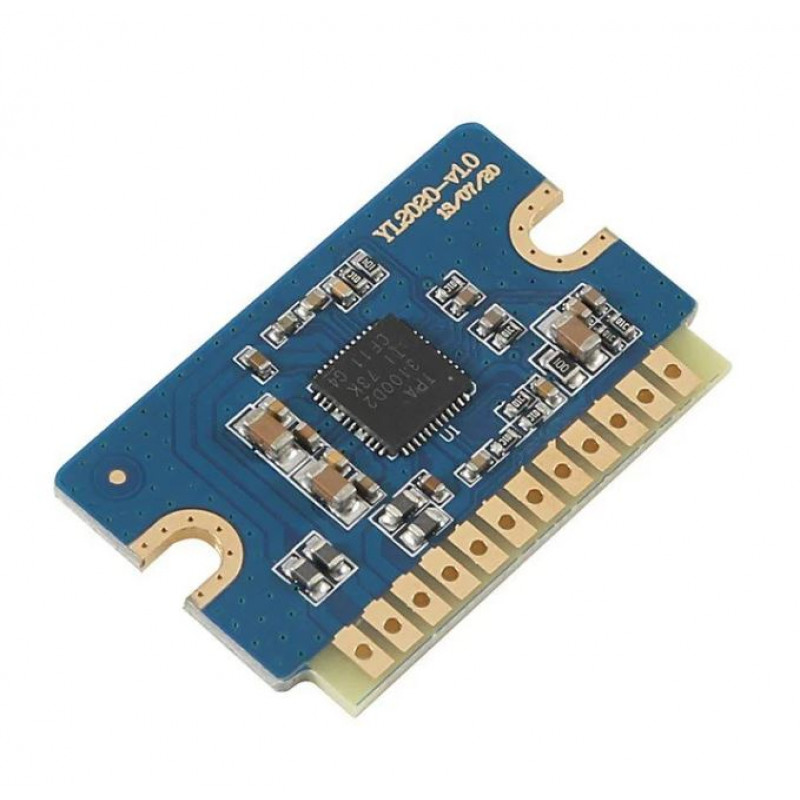

YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module is simple and mini size class D power amplifier but it has a remarkable audio power output via its dual stereo channel of 20W per channel

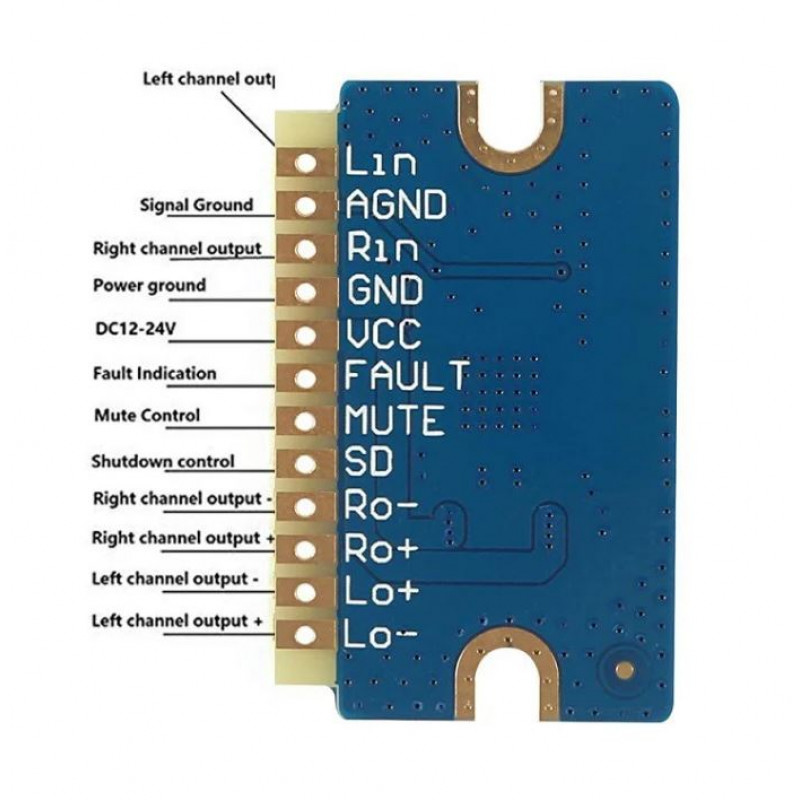

Pin Description
Lin : Left channel signal input
AGND : Signal ground
RIN : RIght channel signal input
GND : power ground
VCC: power positive
FAULT: Fault Indication
MUTE : Mute Control
SD: Shut down Control
RO : Right channel output negative
RO+ : Right channel output positive
LO+ : Left channel output positive
LO- : Left channel output negative

It's easy to install, with marked terminals and convenient for soldering.You just need to solder everything where it belongs.

If you do not use MUTE, connect FAULT and MUTE together it will mute the amplifier in case of errors.

To enable MUTE, it must be connected to the positive supply voltage VCC (Smaller enough, but it is the easiest way).

The SD input is! SHUTDOWN, no need to plugin, and don't use it as a mute either, as using it will make your speakers pound.

Package Includes:

1 x YL2020 20W+20W D Class 12V-24V Mini Digital Power Amplifier Module


Amplifier Type

Sam class D digital

Output Channel

Two-channel (stereo)

Operating Voltage

8v- 24v

Maximum Current consumption

4 A

Static current

< 40mA

Input Signal

500 mV

Output Power

20W x 2

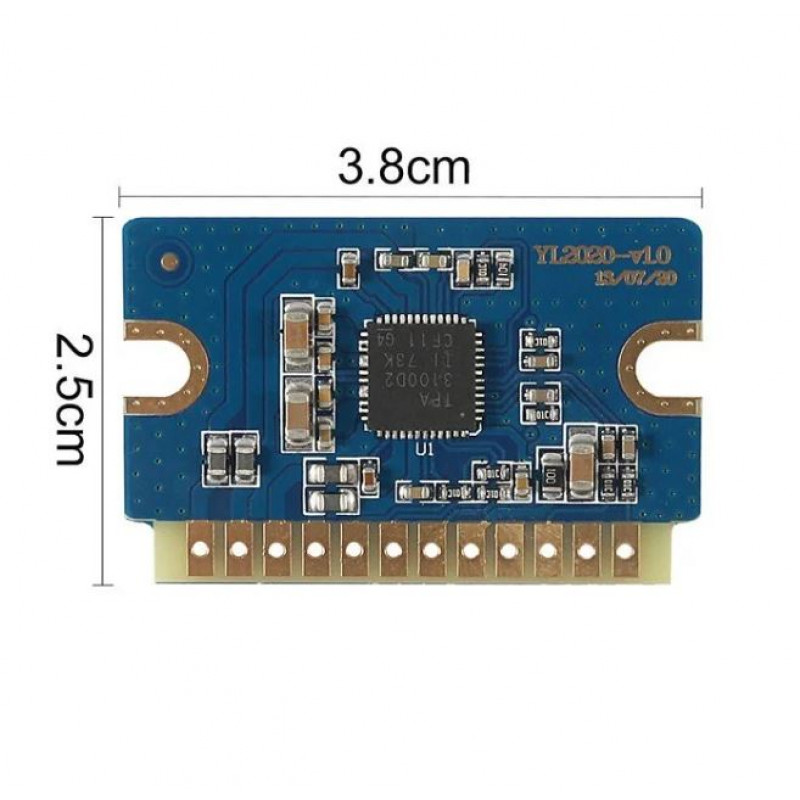

Length (mm)


Width (mm)


Height (mm)


Weight (gm)


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 435.42 (Inclusive of all Taxes)
